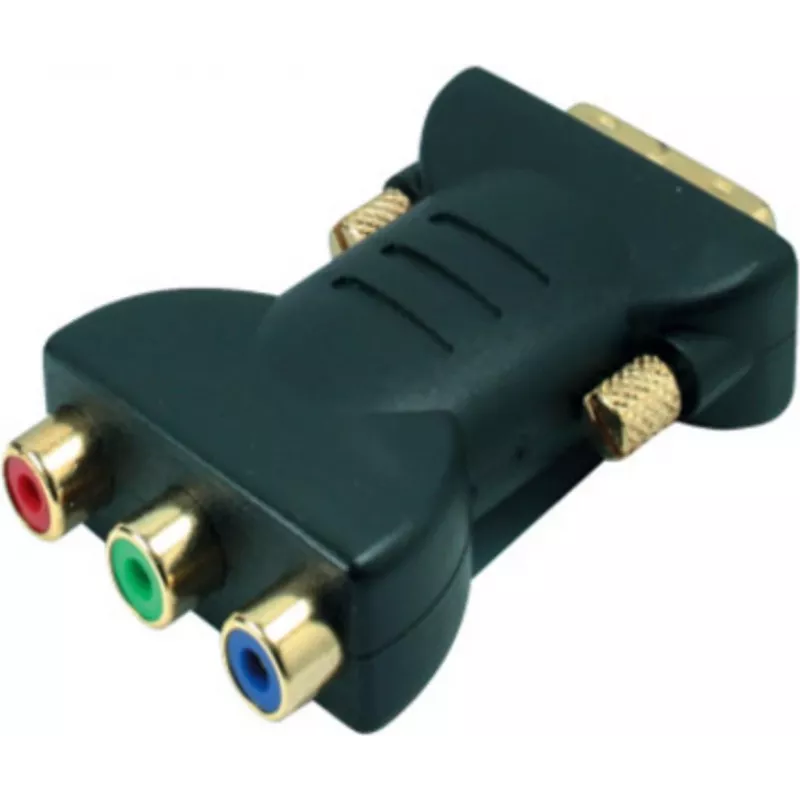

DVI-D adaptér ShiverPeaks 77439 24+5 pin na RGB spojku

The ShiverPeaks DVI-D Adapter 24+5 Pin to RGB Coupling converts a DVI-D 24+5 pin connection into an RGB coupling, enabling digital video sources with DVI-D outputs to interface with displays or devices that accept an RGB input. This adapter is designed for straightforward signal routing where a physical DVI-D plug must be adapted to an RGB-style connector. It is intended for installations where preserving the digital video path and maintaining a compact mechanical connection are required.

Advantages

This adapter provides a compact and practical solution to link DVI-D equipped video sources to RGB input devices without requiring complex rewiring. Its 24+5 pin configuration preserves the standard DVI-D pinout needed for digital video signal continuity, while the RGB coupling offers a compatible physical interface for legacy or specialized displays. The device is passive and does not require power, simplifying integration into existing setups.

Suitable for

• Connecting DVI-D equipped video sources to displays that accept RGB input
• Integrating legacy monitors or video equipment into modern systems
• Temporary or permanent installations where a mechanical DVI-D to RGB adaptation is needed

Key specifications

• Connector type (input): DVI-D 24+5 pin (male)
• Connector type (output): RGB coupling (female)
• Signal type: Digital video routing via DVI-D pin configuration
• Power: Passive adapter, no external power required
• Form factor: Compact inline adapter suitable for desk or rack use

How to use

Insert the DVI-D 24+5 pin plug into the source device's DVI-D output and attach the compatible RGB cable or connector to the RGB coupling. Ensure connectors are fully seated and secured to avoid intermittent signal loss. Because the adapter is passive, it does not convert analog signals or change signal format; it only adapts the physical connection where the source and display wiring are compatible.

Recommendations

Verify that both source and display devices support the same digital signal type before use. If the target device requires an analog RGB signal or specific sync timing, use an active converter instead of a passive coupling. Avoid forcing connectors and protect the adapter from excessive bending or mechanical strain to maintain signal integrity.
