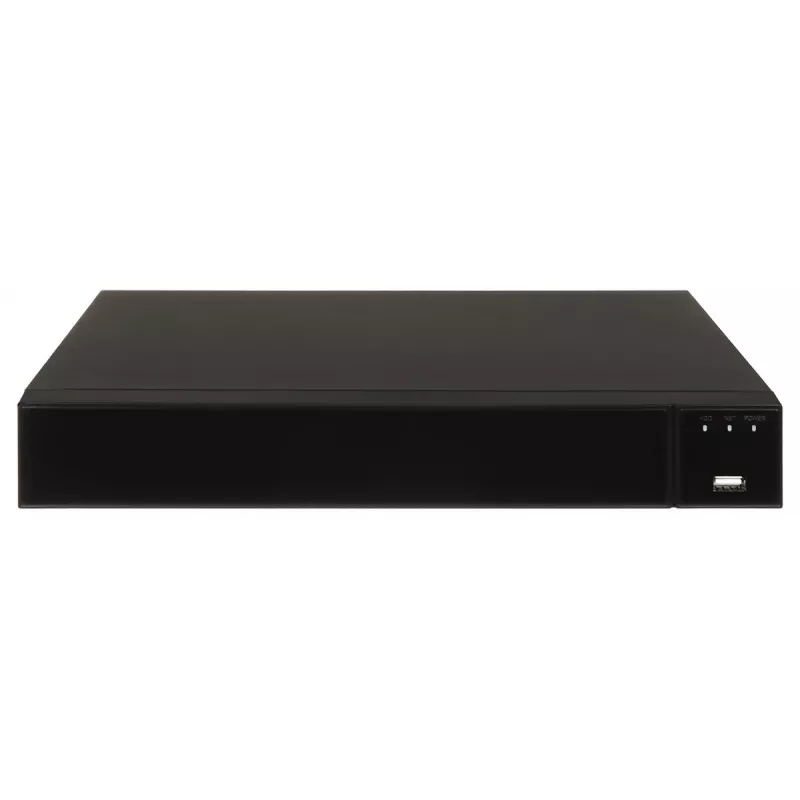

DVR AHD/HD-CVI/HD-TVI CVBS IP 4-kanálový 5MP H.265+

This professional-grade DVR supports AHD, HD-CVI, HD-TVI, CVBS, and IP video inputs, offering flexible surveillance solutions for small to medium-sized installations. With 4 analog BNC inputs and 2 additional IP channels (expandable to 6 IP channels in full IP mode), it delivers high-resolution recording up to 5MP for analog and 6MP for IP cameras. The H.265+ compression technology ensures efficient storage and bandwidth usage.

Advantages

• Hybrid compatibility with multiple analog and IP camera formats
• High recording resolution up to 5MP for analog and 6MP for IP
• H.265+/H.265/H.264+/H.264 compression for reduced file sizes
• Simultaneous HDMI and VGA output up to 1920x1080
• Supports up to 8TB SATA HDD for extensive storage
• Remote access via BCS Manager and DMSS mobile apps

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Residential properties
• Small to medium businesses

Key specifications

• Video Input: 4x BNC (AHD/HD-CVI/HD-TVI/CVBS) + 2x IP
• Analog Resolution: Up to 5MP (AHD/HD-TVI), 4MP (HD-CVI)
• IP Resolution: Up to 6MP
• Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI, 1x VGA (up to 1920x1080)
• Audio: 1x RCA input, 1x RCA output, two-way audio
• Storage: 1x SATA HDD (up to 8TB)
• Network: 1x RJ-45 10/100Mbps
• USB: 2x USB 2.0
• Power: DC 12V/2A, consumption <10W (without HDD)
• Playback: 4 channels simultaneously
• OS: Embedded Linux

Recommendations

For optimal performance, use high-quality BNC cables and compatible cameras. Ensure the HDD is properly installed and formatted. For remote access, configure network settings and install the BCS Manager or DMSS app on your mobile device.
