E+P AB101 Biely koaxiálny anténny kábel 1,5 m IEC konektor samec na konektor samica 75 dB tienenie

With a shielding attenuation of 75 dB, this coaxial antenna cable effectively blocks interference, ensuring clean signal transfer for TV and radio applications.

Overview

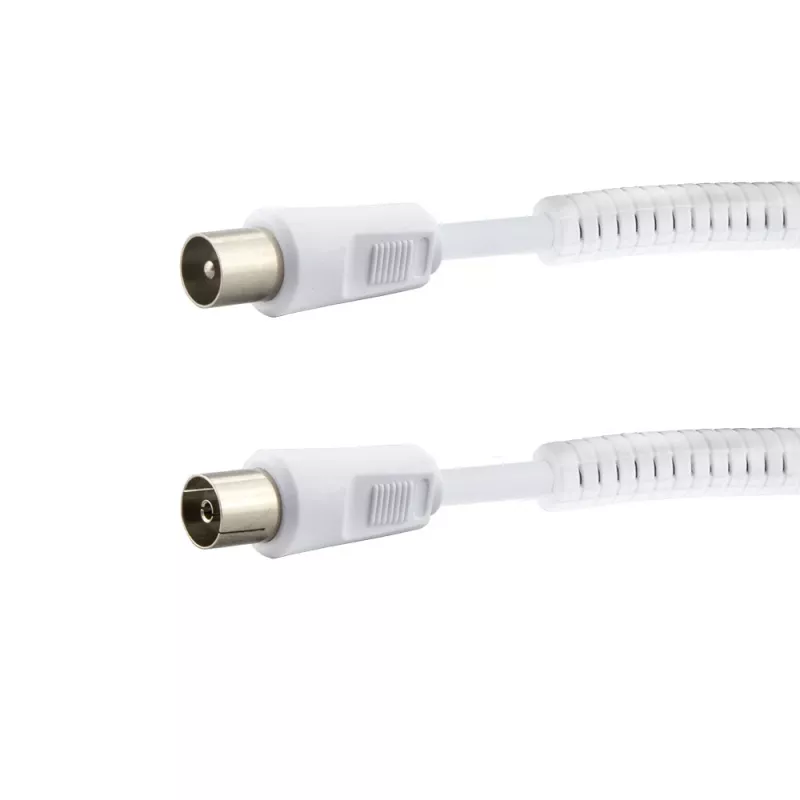

The E+P AB101 is a 1.5-meter white antenna cable with IEC male and female connectors. It is designed for connecting antennas, cable boxes, and televisions, supporting DVB-T, DVB-C, and DVB-S signals.

What stands out

• Integrated sheath current filter reduces unwanted signal noise.
• Double shielding with copper inner conductor for reliable performance.
• 75 Ohm impedance matches standard antenna systems.
• Foamed PE dielectric ensures low attenuation across the 5-1000 MHz range.

Technical details

• Connector A: IEC Coaxial Male
• Connector B: IEC Coaxial Female
• Cable length: 1.5 m
• Impedance: 75 Ohm
• Shielding attenuation: 75 dB
• Frequency range: 5 - 1000 MHz
• Attenuation at 100 MHz: < 0.15 dB/m
• Attenuation at 860 MHz: < 0.4 dB/m
• Return loss: > 20 dB
• Jacket material: PVC

Our verdict

A straightforward, well-shielded antenna cable for everyday TV and radio connections.
