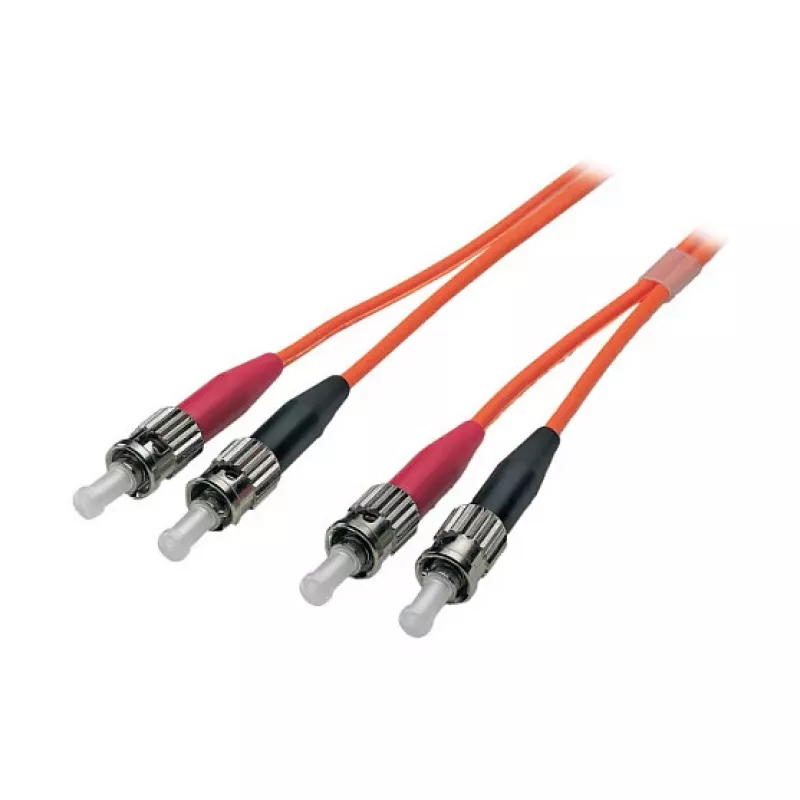

EFB Elektronik ECOFIBER duplex patch kábel ST-ST OM1 2m LSZH 3mm oranžový

The EFB Elektronik ECOFIBER Duplex Patch Cable ST-ST OM1 is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With a length of 2 meters and a durable LSZH (Low Smoke Zero Halogen) jacket, this cable is ideal for use in data centers, LANs, and telecommunication networks where safety and performance are paramount.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable connectivity. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it suitable for enclosed spaces. The duplex design with two fibers allows for simultaneous bidirectional communication.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LANs) with multimode fiber infrastructure
• Telecommunication networks needing reliable patch connections
• Applications where safety and low smoke emissions are critical

Key specifications

• Fiber Type: Multimode OM1 (62.5/125 µm)
• Connectors: ST to ST, Duplex
• Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 20 dB (typical)
• Attenuation: 3.5 dB/km at 850nm, 1.5 dB/km at 1300nm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that the connectors are clean and properly mated. This cable is compatible with standard ST port equipment and is best used in structured cabling systems.
