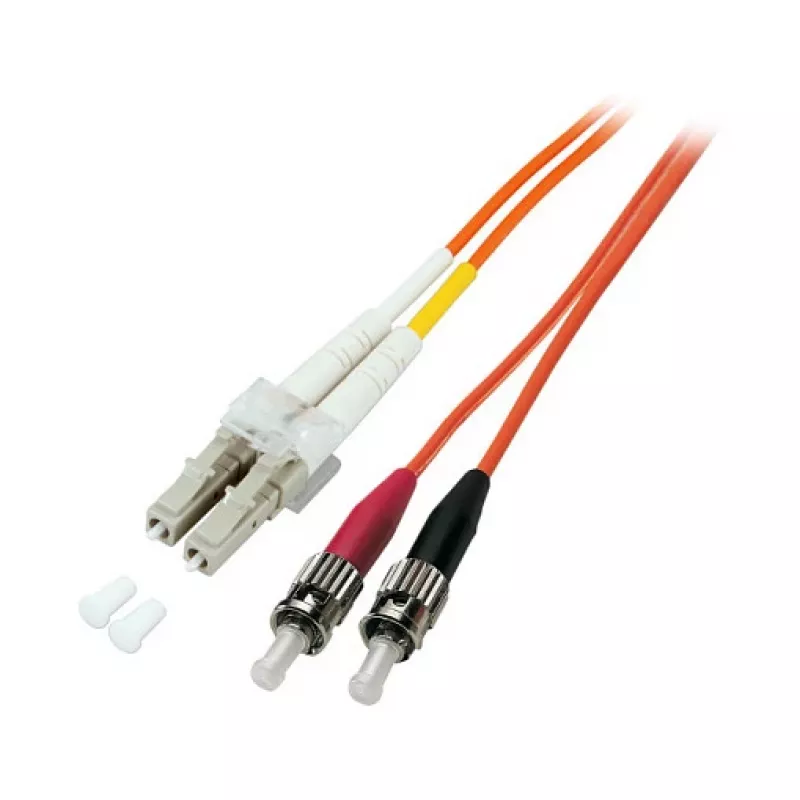

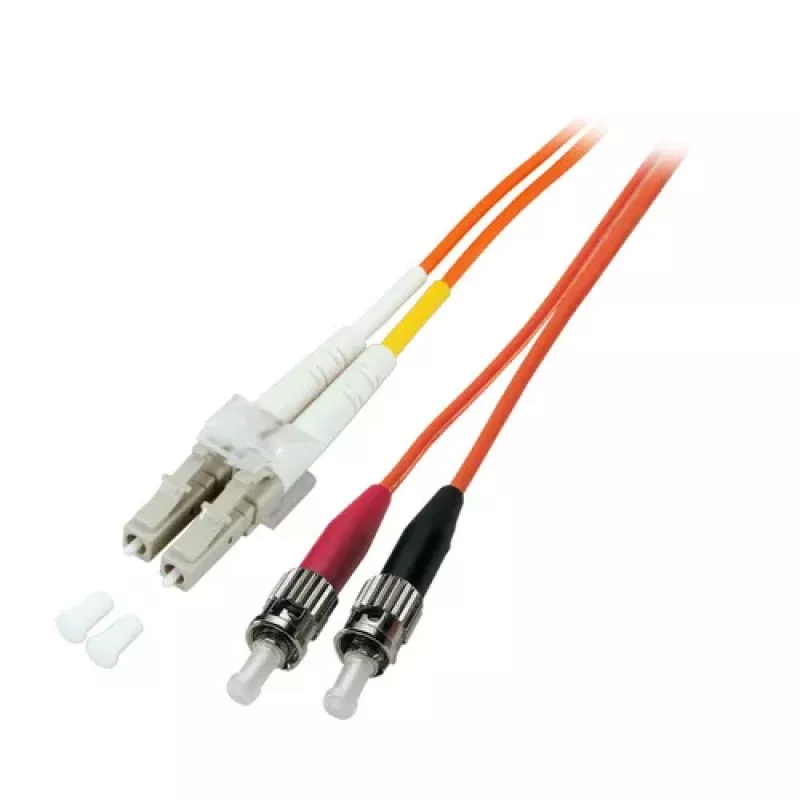

EFB Duplex Patchkabel LC-ST OM1 10m LSZH 2mm oranžový

The EFB Duplex Jumper LC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 grade fiber and a length of 10 meters, this cable is ideal for connecting network devices in LAN, SAN, and data center environments.

Advantages

Low Smoke Zero Halogen (LSZH) jacket ensures safety in enclosed spaces by reducing toxic and corrosive emissions during a fire. The duplex configuration provides two fibers for simultaneous bidirectional communication, and the 2.0 mm cable diameter offers flexibility while maintaining durability.

Suitable for

• Connecting switches, routers, and patch panels in fiber optic networks
• Data centers and server rooms requiring high-speed data transfer
• Telecommunications and industrial applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM1
• Core/Cladding Diameter: 62.5/125 µm
• Connector A: LC Duplex
• Connector B: ST Duplex
• Length: 10 m
• Jacket Material: LSZH
• Jacket Color: Orange
• Cable Diameter: 2.0 mm
• Number of Fibers: 2
• Insertion Loss: < 0.3 dB typical
• Return Loss: > 20 dB typical
• Attenuation @ 850nm: 3.0 dB/km typical
• Attenuation @ 1300nm: 1.0 dB/km typical
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and ST interfaces.
