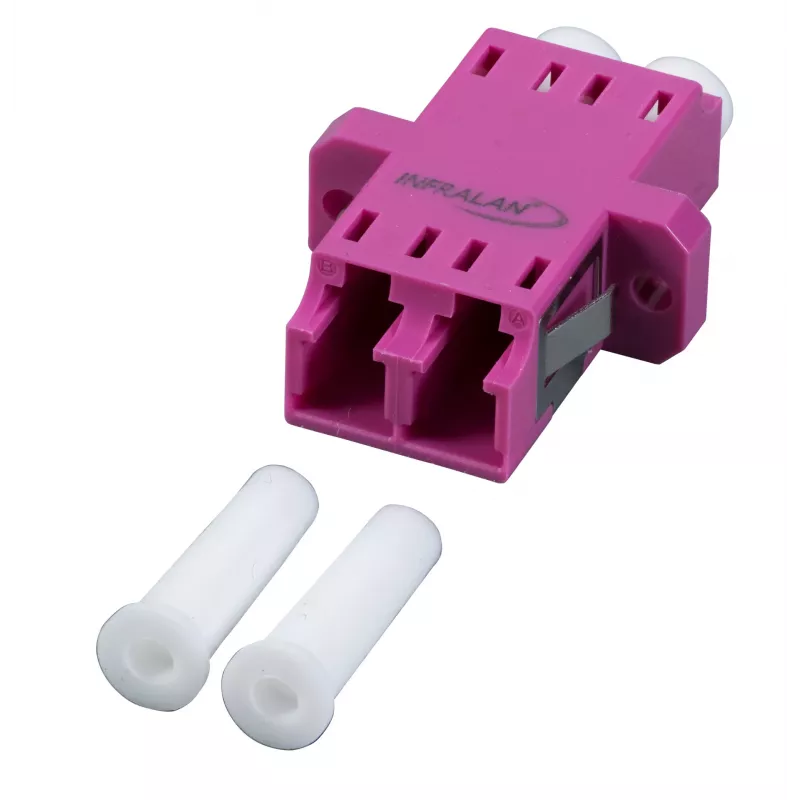

EFB Electronics LC-Duplex OM4 plastová spojka, fialové puzdro, jednodielna, SC-Simplex

The EFB Electronics LC-Duplex OM4 Plastic Coupler is a high-performance fiber optic adapter designed for reliable connections in data centers, telecommunications, LAN, and FTTx networks. This one-piece coupler features a violet plastic housing and supports LC-Duplex to SC-Simplex connectivity, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

Low insertion loss (<0.3 dB) and high return loss (>30 dB) ensure minimal signal degradation. Durable zirconia ceramic ferrules provide over 500 mating cycles. Compact one-piece design simplifies panel mounting. Includes dust caps for protection.

Suitable for

• Data centers requiring high-density fiber connections
• Telecommunications infrastructure
• Local area networks (LAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Connector Type A: LC-Duplex
• Connector Type B: SC-Simplex
• Fiber Mode: Multimode OM4
• Housing Material: Plastic
• Color: Violet
• Insertion Loss: <0.3 dB typical
• Return Loss: >30 dB typical
• Mating Cycles: >500
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-20 (LC), IEC 61754-4 (SC)

Recommendations

For optimal performance, pair with OM4 patch cables and ensure clean connections. Suitable for panel mount installations.
