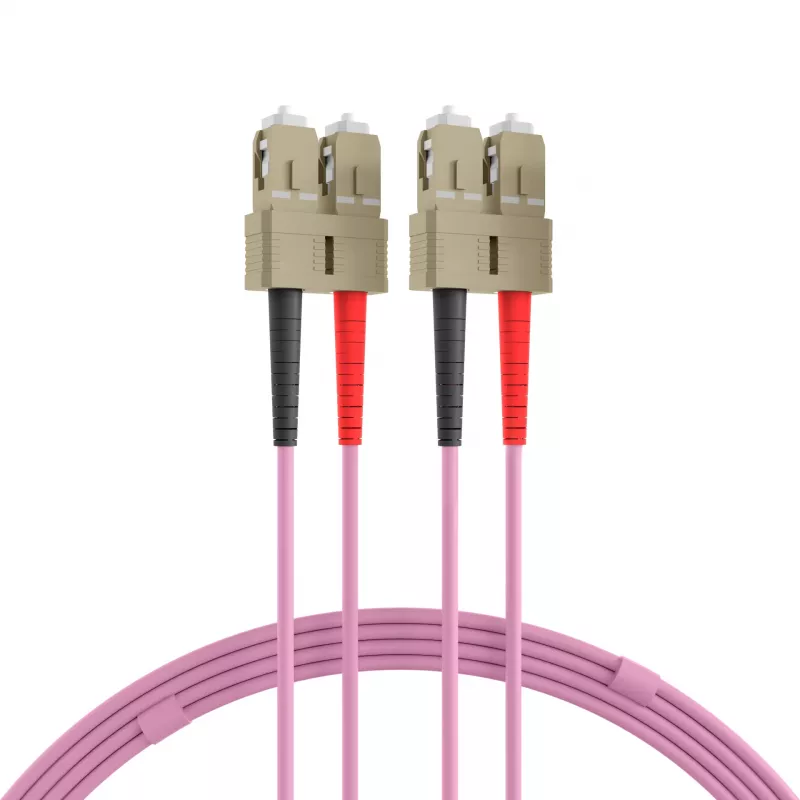

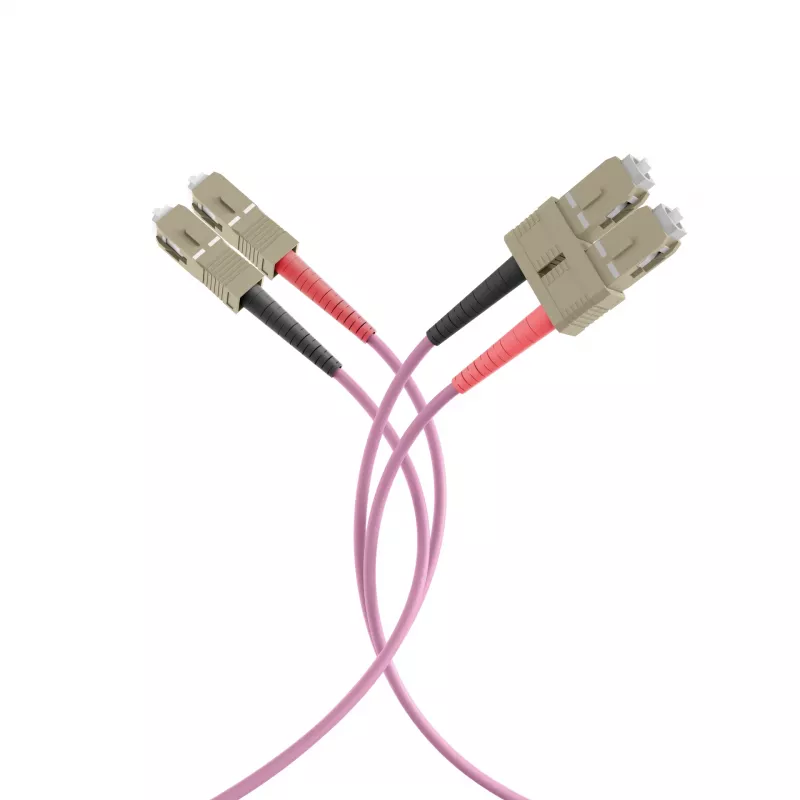

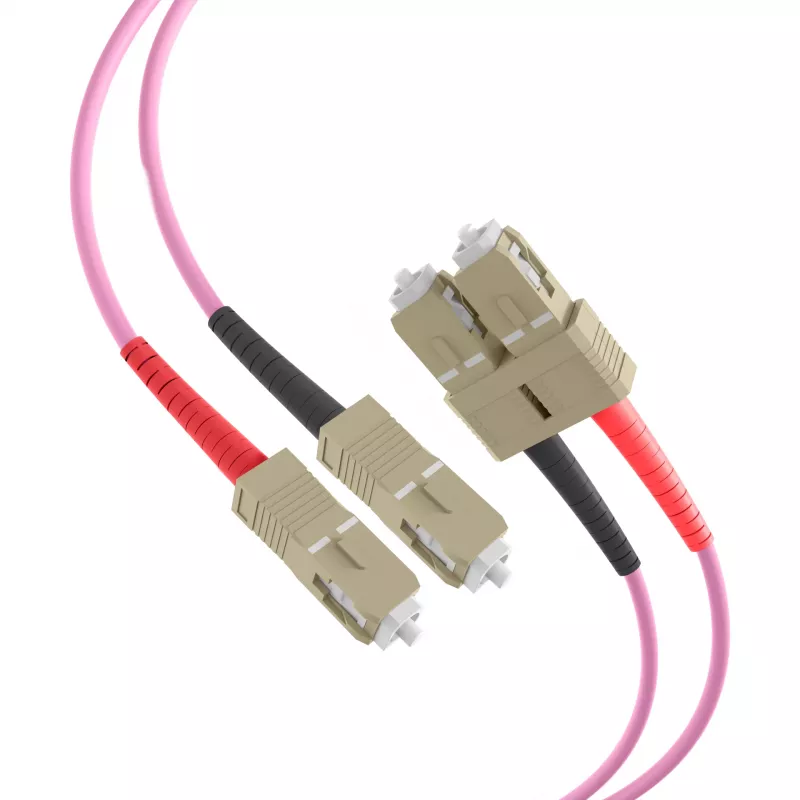

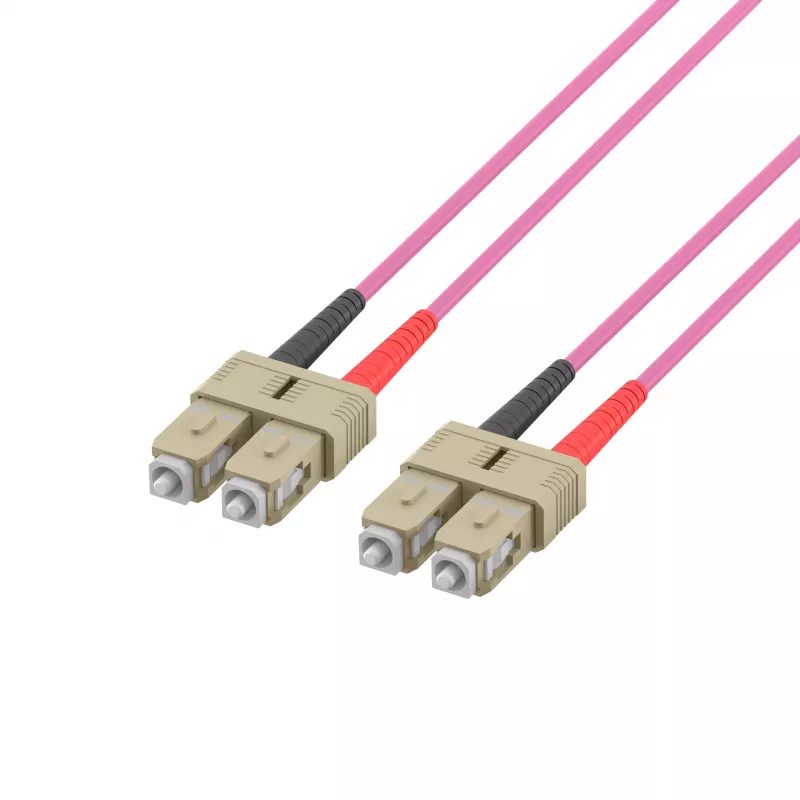

EFB Electronics O0318FT.30 - 30 m - I-V(ZN) HH - OM4 - SC - SC Duplex optický patch kábel

The EFB Electronics O0318FT.30 is a high-performance 30-meter duplex fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM4 multimode fiber and SC to SC connectors, this cable delivers exceptional bandwidth and low attenuation, making it ideal for data centers, LANs, SANs, and high-speed networks.

Advantages

This cable features a low smoke zero halogen (LSZH) jacket, ensuring safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The duplex configuration supports bidirectional communication, and the aqua-colored jacket provides easy identification. Typical insertion loss of less than 0.3 dB and return loss greater than 30 dB guarantee signal integrity.

Suitable for

• Data centers and server rooms
• Local area networks (LANs) and storage area networks (SANs)
• High-speed Ethernet applications (10G, 40G, 100G)
• Telecommunications and enterprise cabling

Key specifications

• Fiber type: Multimode OM4 (50/125 µm)
• Connectors: SC duplex on both ends
• Cable length: 30 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable construction: I-V(ZN) HH (indoor, non-metallic, halogen-free)
• Attenuation: 2.3 dB/km @ 850nm, 0.6 dB/km @ 1300nm
• Bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-1, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC duplex interfaces and supports 10/40/100 Gigabit Ethernet applications. Pair with EFB Electronics patch panels and modules for a complete cabling solution.
