EFB Electronics SC/APC simplex konektor 2,0 mm pre 8° šikmý brús 2,0 mm

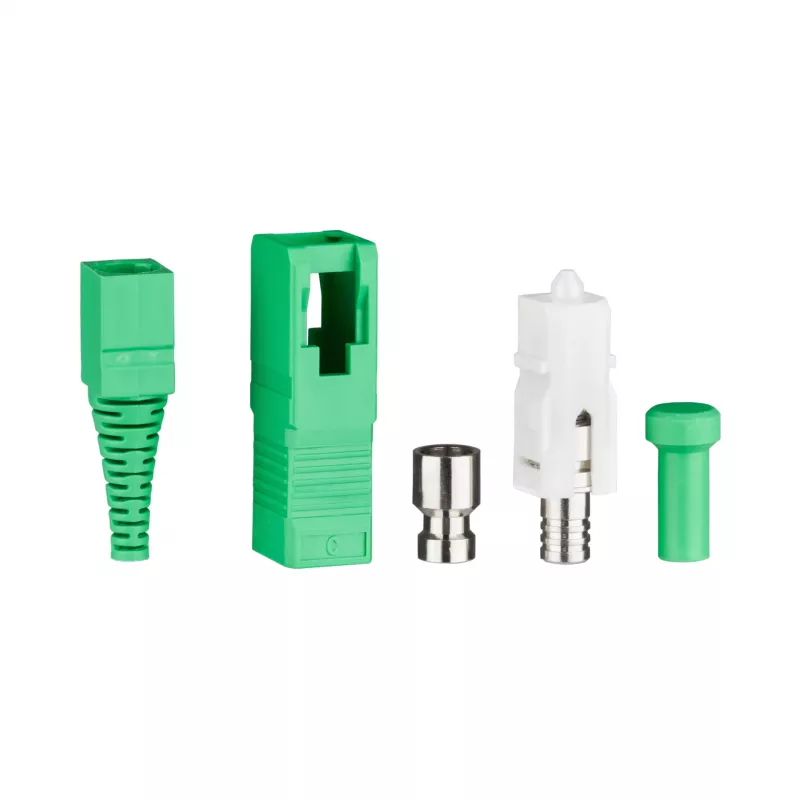

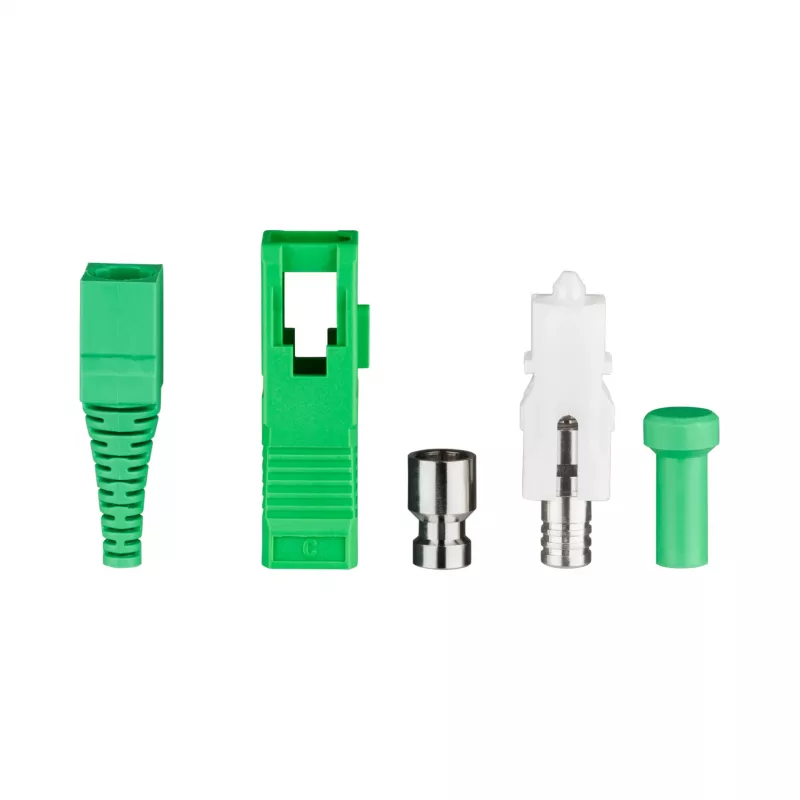

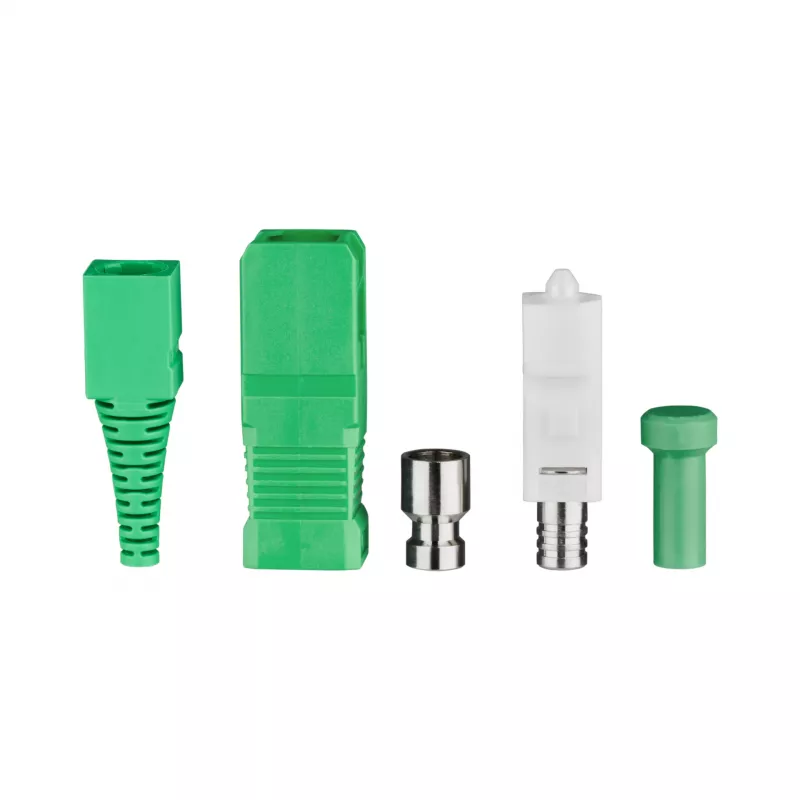

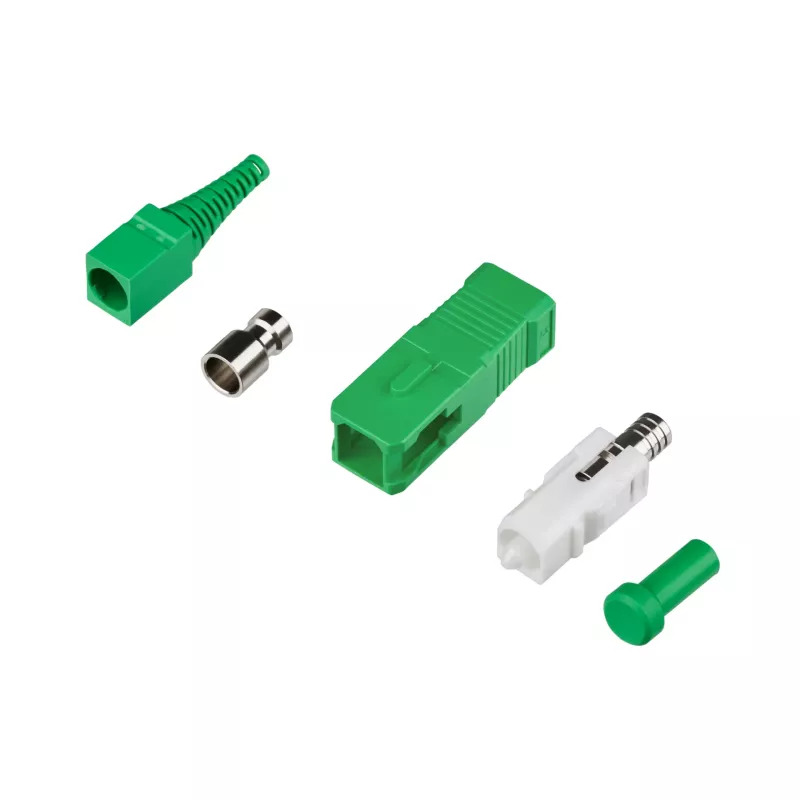

The EFB Electronics SC/APC Simplex Plug is a high-quality fibre optic connector designed for single-mode applications requiring low insertion loss and high return loss. This connector features an angled physical contact (APC) polish with an 8-degree angle, ensuring optimal performance in FTTH, CATV, and telecommunication networks. The plug is compatible with 2.0 mm cable diameter and is ideal for field assembly and patch cord production.

Advantages

This SC/APC simplex plug offers excellent optical performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The zirconia ceramic ferrule ensures durability and precise alignment, while the green housing colour indicates APC polish for easy identification. The connector is RoHS and REACH compliant, meeting environmental standards.

Suitable for

• FTTH (Fiber to the Home) installations
• CATV networks
• Telecommunication systems
• Patch cord manufacturing
• Field termination and repair

Key specifications

• Connector type: SC
• Polish type: APC (Angled Physical Contact)
• Fiber configuration: Simplex
• Fiber compatibility: Single-mode (SM)
• Cable diameter compatibility: 2.0 mm
• Ferrule diameter: 2.5 mm
• Ferrule material: Zirconia Ceramic
• Polish angle: 8 degrees
• Insertion loss (typical): ≤0.3 dB
• Return loss (typical): ≥60 dB
• Housing material: High-grade plastic
• Connector colour: Green
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Durability: >500 mating cycles
• Termination method: Epoxy-and-polish
• Application: Field assembly, patch cord production
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with single-mode fibre and ensure proper cleaning before termination. This connector is suitable for both indoor and outdoor applications within the specified temperature range.
