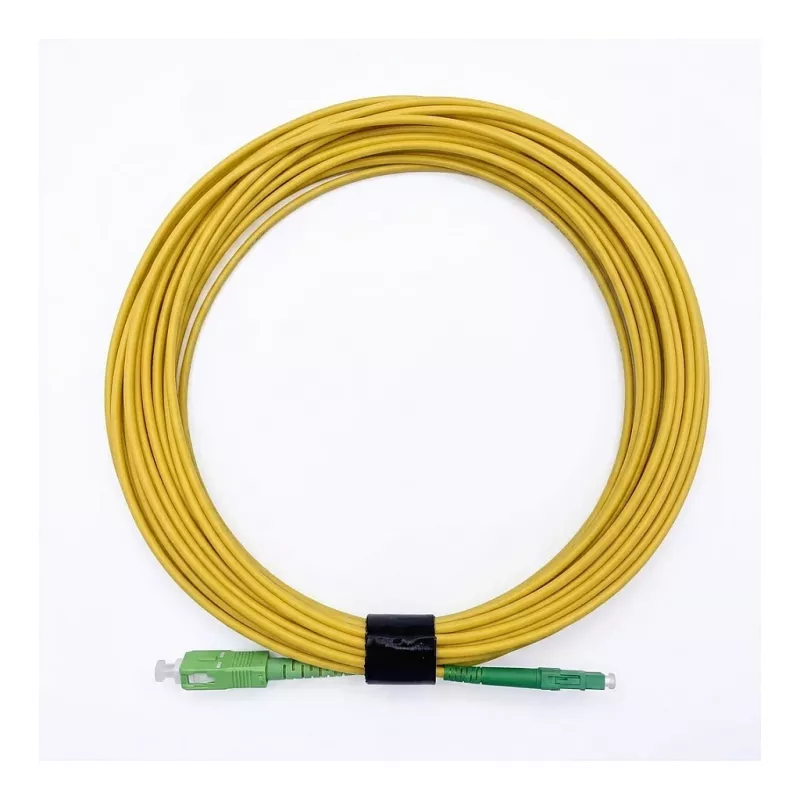

EFB Electronics simplex optický patch kábel LC/APC-SC/APC G657.A2 15 m 2,0 mm žltý 9/125 µm

The EFB Electronics Simplex Fibre Optic Patch Cable is a high-quality single-mode patch cable designed for reliable data transmission in telecommunications, data centers, and FTTH networks. With LC/APC to SC/APC connectors and a bend-insensitive G.657.A2 fibre, this 15-meter cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss < 0.3 dB and return loss > 60 dB. The LSZH jacket provides safety in enclosed spaces, and the 2.0 mm diameter ensures flexibility while maintaining durability. The yellow colour aids easy identification.

Suitable for

• Data centers
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• LAN applications

Key specifications

• Fibre mode: Single-mode
• Fibre standard: ITU-T G.657.A2 (Bend-Insensitive)
• Core/Cladding: 9/125 µm
• Connectors: LC/APC to SC/APC
• Polish: APC (Angled Physical Contact)
• Cable configuration: Simplex (1 fibre)
• Length: 15 m
• Cable diameter: 2.0 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Ferrule material: Zirconia Ceramic
• Minimum bend radius: 7.5 mm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed data transmission in single-mode fibre networks.
