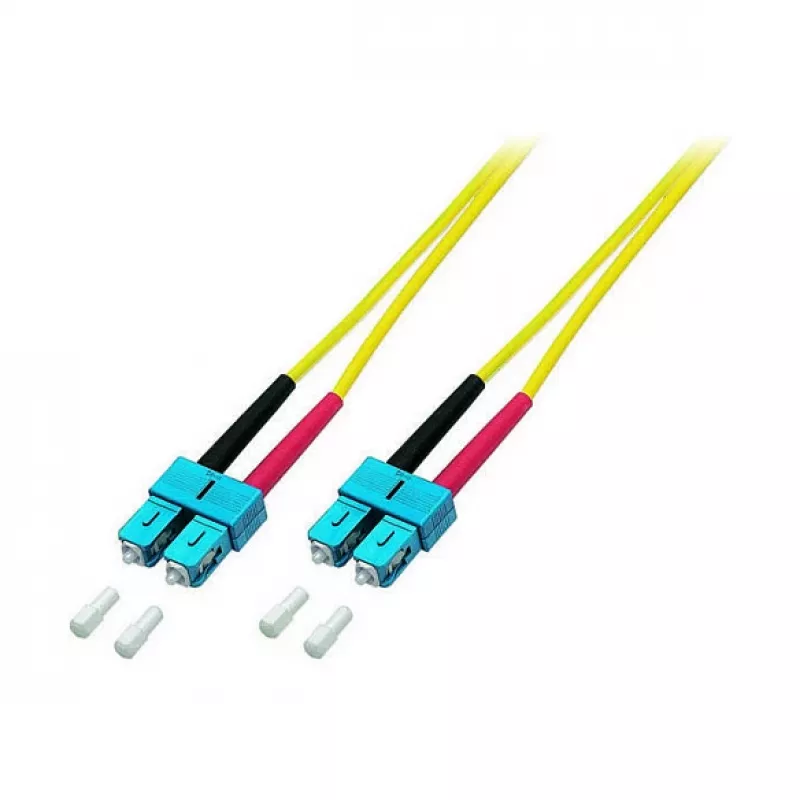

EFB-Elektronik Duplex Jumper SC-SC 9/125µm OS2 LSZH žltý 3,0mm 10m

The EFB-Elektronik Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for single-mode applications. With OS2 standard and LSZH jacket, it ensures reliable performance and safety in data centers, telecommunications, and LAN environments.

Advantages

Low insertion loss and high return loss guarantee excellent signal integrity. The duplex configuration allows bidirectional communication, while the yellow jacket provides easy identification for single-mode cables.

Suitable for

• Data centers
• Telecommunications networks
• Local area networks (LAN)
• FTTx installations

Key specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Single-mode
• Fiber standard: OS2
• Core/cladding diameter: 9/125 µm
• Connector type: SC to SC
• Connector polish: PC
• Cable configuration: Duplex
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable color: Yellow
• Cable diameter: 3.0 mm
• Cable length: 10 m
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation @ 1310nm: ≤ 0.3 dB/km
• Attenuation @ 1550nm: ≤ 0.2 dB/km
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for backbone and horizontal cabling in structured cabling systems.
