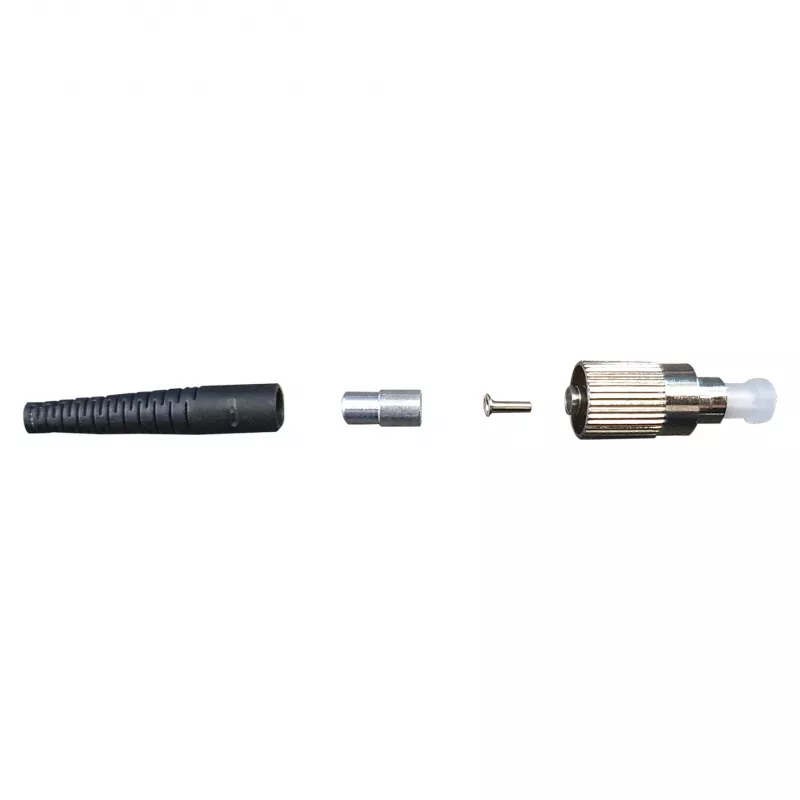

EFB-Elektronik FC/PC optický konektor multimode keramická ferula červený ochrana proti ohybu

The EFB-Elektronik FC/PC fiber optic connector is a high-quality field-terminable connector designed for multimode fiber networks. Featuring a zirconia ceramic ferrule and a red bend protection boot, this connector ensures reliable performance and durability. Ideal for termination of 50/125µm or 62.5/125µm multimode fibers, it provides low insertion loss and high return loss, making it suitable for data centers, telecommunications, and LAN applications.

Advantages

This connector offers excellent optical performance with typical insertion loss below 0.3 dB and return loss greater than 30 dB. The nickel-plated brass housing provides robust mechanical strength, while the red strain relief boot protects the fiber from bending and stress. With over 500 mating cycles durability, it ensures long-term reliability in demanding environments.

Suitable for

• Termination of multimode fiber optic cables (50/125µm, 62.5/125µm)
• Data center and enterprise network installations
• Telecommunication and CATV systems
• Field termination and repair applications

Key specifications

• Connector Type: FC/PC
• Fiber Mode: Multimode
• Ferrule Material: Zirconia Ceramic
• Polishing Type: PC (Physical Contact)
• Boot Color: Red
• Housing Material: Nickel-plated Brass
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Operating Temperature: -40°C to +85°C
• Durability: > 500 mating cycles
• Number of Fibers: Simplex (1 fiber)
• Termination Method: Epoxy & Polish
• Standard Compliance: IEC 61754-13

Recommendations

For optimal performance, use with multimode fiber cables and ensure proper cleaning and polishing during termination. This connector is designed for field installation with epoxy and polish method. Pair with FC/PC adapters for seamless connectivity.
