EFB LSA rozdeľovací modul 2/10 na 10DA s farebným kódom

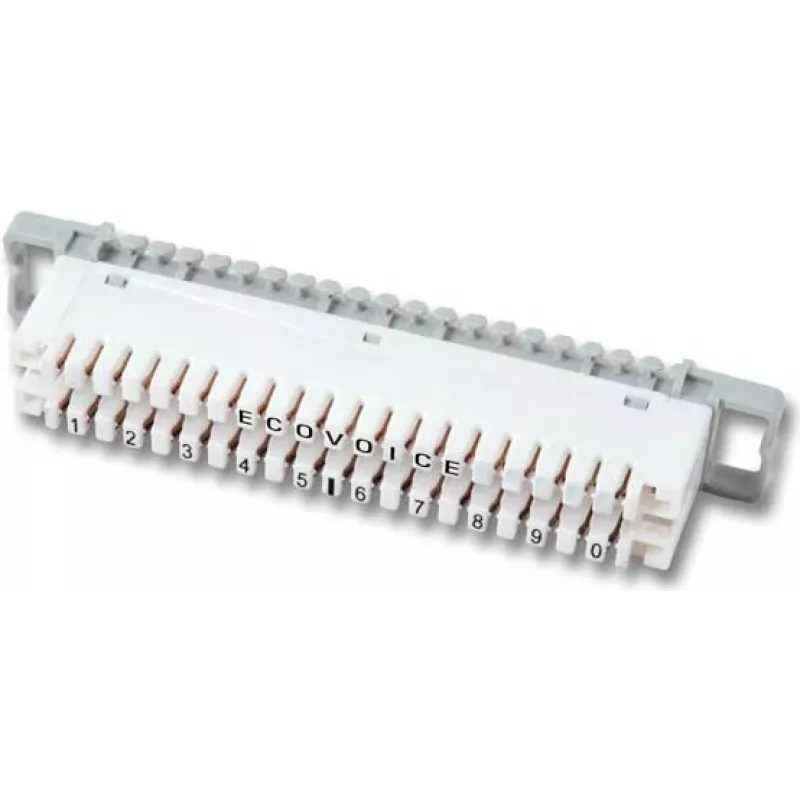

The EFB LSA Disconnection Module 2/10 to 10DA with Color Code (model 46005.1F) is a high-quality disconnection module designed for voice and telecommunications applications. It features LSA-Plus (IDC) connection technology for reliable and quick wire termination without stripping. The module supports 10 pairs (20 contacts) and is compatible with solid core wires from 0.4 to 0.6 mm (AWG 26-22). Its integrated color code simplifies wiring, and the backmount design allows easy installation on standard LSA mounting frames. With a frequency support up to 16 MHz (Cat.3), it is ideal for low-speed data and telephony networks.

Advantages

• Time-saving LSA-Plus IDC connections eliminate the need for stripping tools.
• Integrated color code reduces wiring errors and speeds up installation.
• Compact backmount design fits seamlessly into existing LSA frames.
• Silver-plated phosphor bronze contacts ensure reliable conductivity and corrosion resistance.
• Supports disconnection, testing, and switching functions for flexible network management.

Suitable for

• Telecommunications and voice networks
• Low-speed data transmission (up to 16 MHz)
• Structured cabling in office buildings, data centers, and industrial environments
• Installation in LSA mounting frames for patch panels and distribution boxes

Key specifications

• Module Type: Disconnection Module
• Connection Technology: LSA-Plus (IDC)
• Number of Pairs: 10
• Number of Contacts: 20
• Wire Gauge: 0.4 - 0.6 mm (AWG 26-22)
• Frequency Support: Up to 16 MHz (Cat.3)
• Mounting Type: Backmount
• Color Code: Integrated
• Housing Material: High-grade plastic
• Contact Material: Phosphor Bronze, Silver-plated
• Insulation Resistance: > 100 MΩ
• Dielectric Strength: > 2000 V
• Operating Temperature: -5°C to +60°C

Recommendations

For optimal performance, use with EFB LSA mounting frames and compatible solid core cables. Ensure proper termination by following the color code markings. This module is a reliable choice for structured cabling systems requiring disconnection and testing capabilities.
