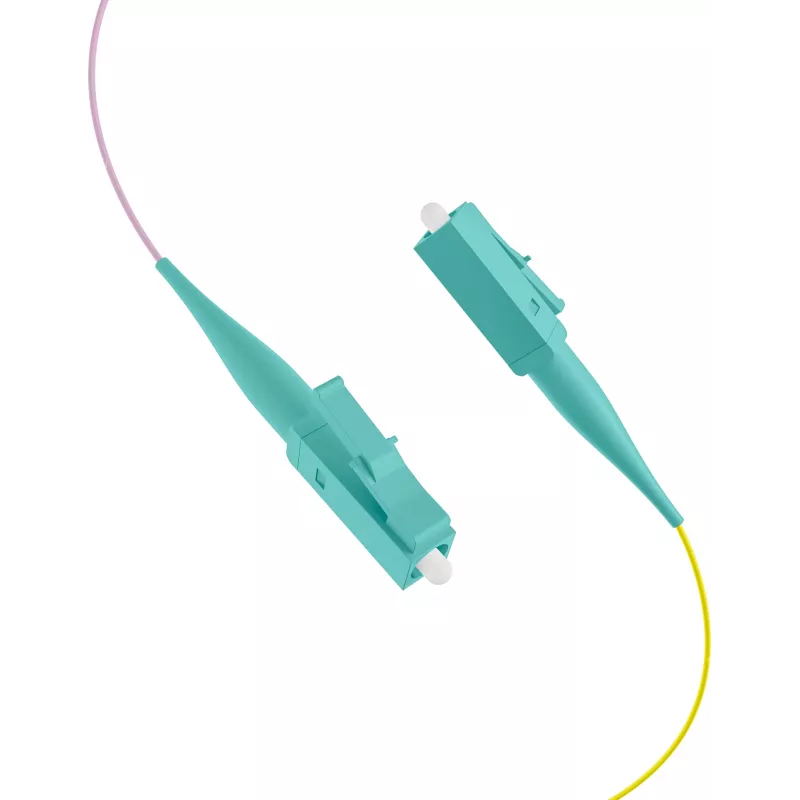

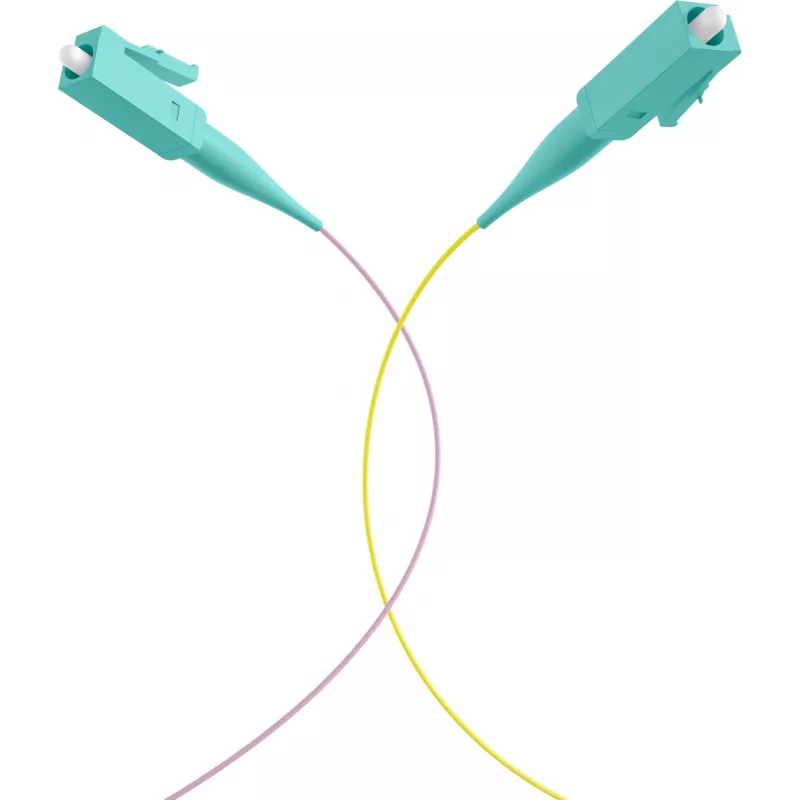

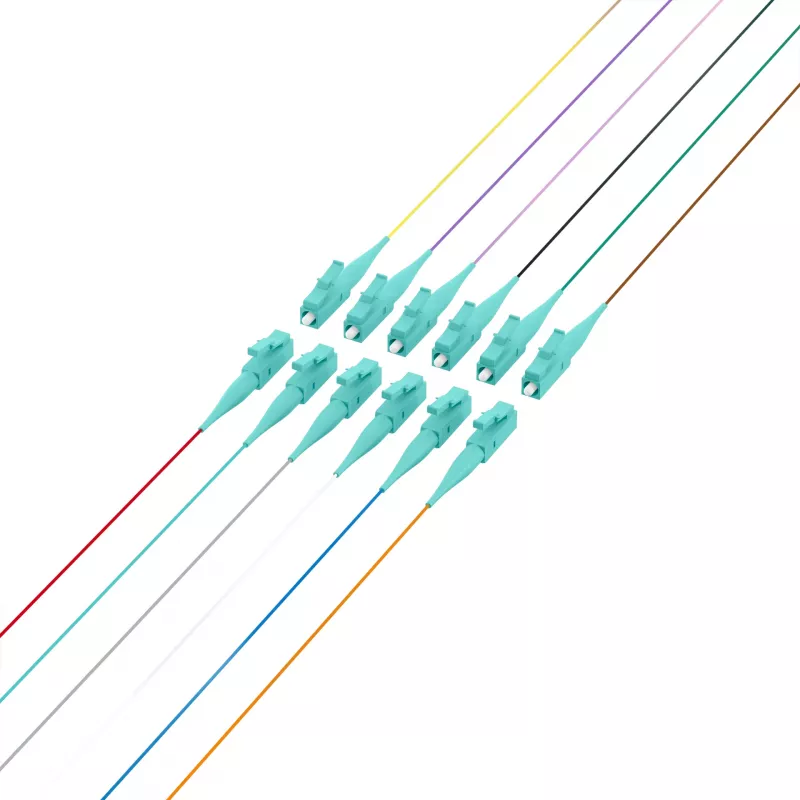

EFB Elektronik Fibre Pigtail LC 50/125 OM3 12-farebná sada 2m - sada kábel/adaptér - Multimode

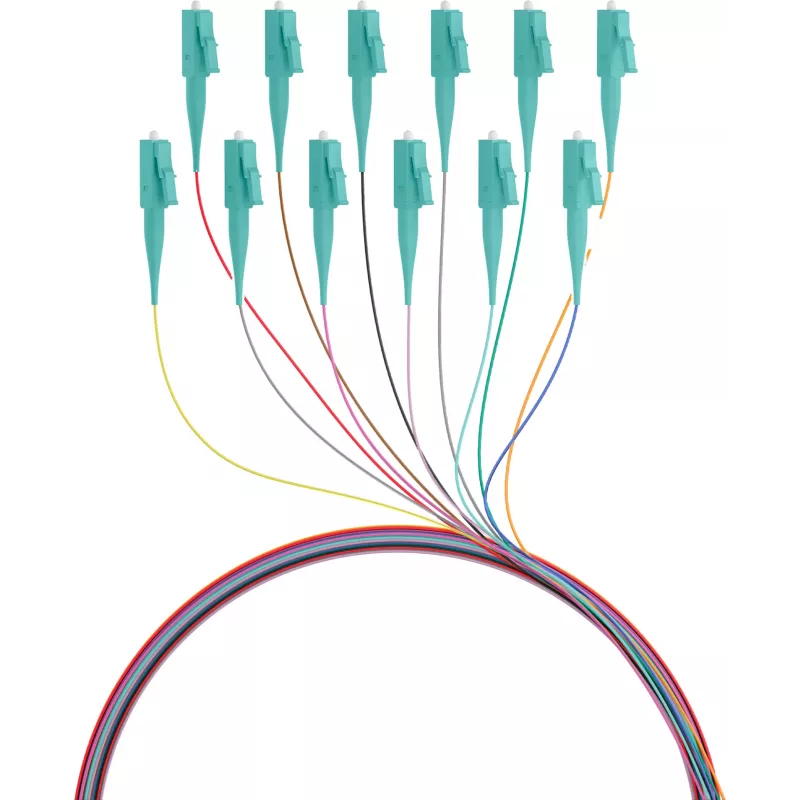

The EFB Elektronik Fibre Pigtail LC 50/125 OM3 12-Colour Set 2m is a high-quality fiber optic pigtail set designed for reliable and efficient network connections. This set includes 12 individually color-coded pigtails, each with a pre-terminated LC connector, making installation and identification easy. Ideal for use in data centers, telecommunications rooms, and structured cabling systems, these pigtails ensure low insertion loss and high return loss for optimal signal integrity.

Advantages

Pre-terminated LC connectors save time and reduce installation errors. The 12-color coding simplifies fiber identification and management. OM3 multimode fiber supports high-bandwidth applications over short to medium distances. LSZH jacket material ensures safety in indoor environments by reducing smoke and toxic fumes in case of fire.

Suitable for

• Data center cabling
• Telecommunications networks
• LAN and SAN infrastructure
• Fiber-to-the-desk (FTTD) installations
• Any indoor fiber optic application requiring reliable, high-performance connections

Key specifications

• Connector Type: LC
• Fiber Type: Multimode OM3
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 12 (individual pigtails)
• Length: 2 m
• Connector Polish: UPC
• Insertion Loss (Max.): ≤ 0.3 dB
• Return Loss (Min.): ≥ 30 dB
• Operating Wavelengths: 850 nm / 1300 nm
• Jacket Material: LSZH
• Individual Fiber Diameter: 0.9 mm
• Attenuation at 850nm: ≤ 3.0 dB/km
• Attenuation at 1300nm: ≤ 1.0 dB/km
• Standards: IEC 60794-2, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with OM3-rated patch panels and couplers. Ensure proper cleaning of connectors before mating. Store in a clean, dry environment when not in use.
