EFB Elektronik FTTH Building Entry Box IP54 neosadená, max. 8 SC/LC, so zámkom (53706.1)

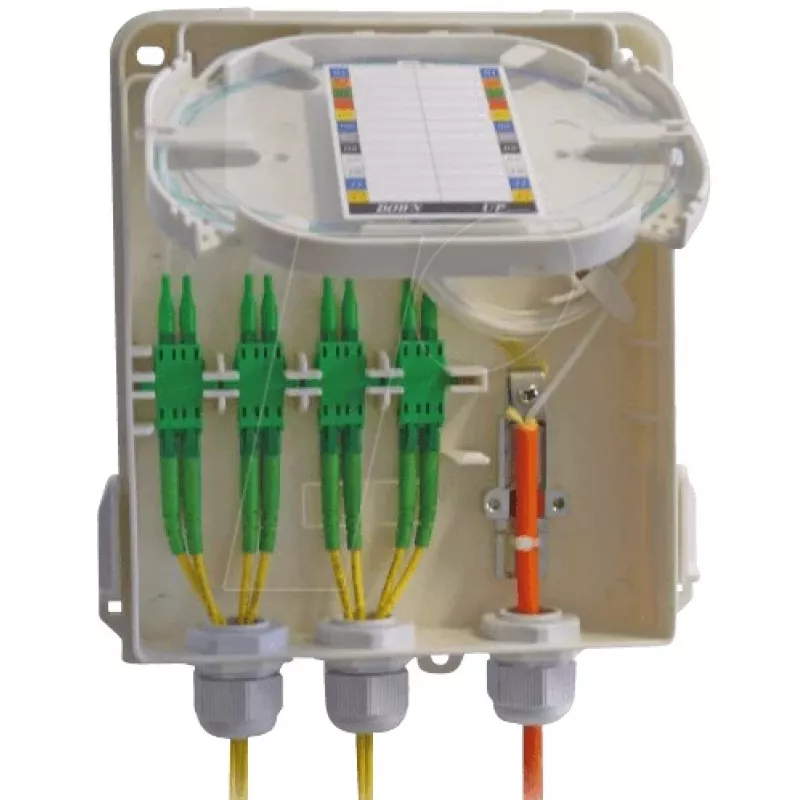

The EFB Elektronik FTTH Building Entry Box (HAB) is a robust and secure fiber optic termination enclosure designed for FTTH, FTTB, and FTTX networks. With an IP54 rating, it is suitable for both indoor and outdoor wall-mounted installations. This unpopulated (empty) version allows for flexible configuration with up to 8 SC simplex or LC duplex adapters. The box features a cylinder lock with two keys for secure access, integrated splice tray for up to 12 single fiber splices, and cable entry ports with blind plugs. Made from light grey ABS plastic (RAL 7035), it offers reliable protection and easy cable management.

Advantages

IP54 protection against dust and water splashes; secure lock mechanism; versatile adapter capacity; easy wall mounting; integrated splice tray and cable routing; suitable for various network architectures.

Suitable for

• FTTH (Fiber to the Home) installations
• FTTB (Fiber to the Building) applications
• FTTX network termination points
• Indoor and outdoor wall-mounted enclosures

Key specifications

• Product Type: Fiber Optic Building Entry Box (HAB)
• IP Protection Rating: IP54
• Adapter Capacity: Max. 8 SC Simplex / LC Duplex
• Configuration: Unpopulated (Empty)
• Lock Mechanism: Cylinder Lock with Key
• Mounting Type: Wall Mount
• Material: ABS Plastic
• Color: Light Grey (RAL 7035)
• Cable Entry Ports: 2x M20, 2x M25 (with blind plugs)
• Splice Capacity: Up to 12 single fiber splices
• Operating Temperature: -20°C to +70°C
• Dimensions (W x H x D): 180 x 220 x 60 mm
• Weight: 0.6 kg
• Included Accessories: Mounting material, 2x keys

Recommendations

For optimal performance, use with SC or LC connectors and ensure proper cable management. This box is ideal for network installers and telecom providers seeking a reliable, secure, and flexible termination solution.
