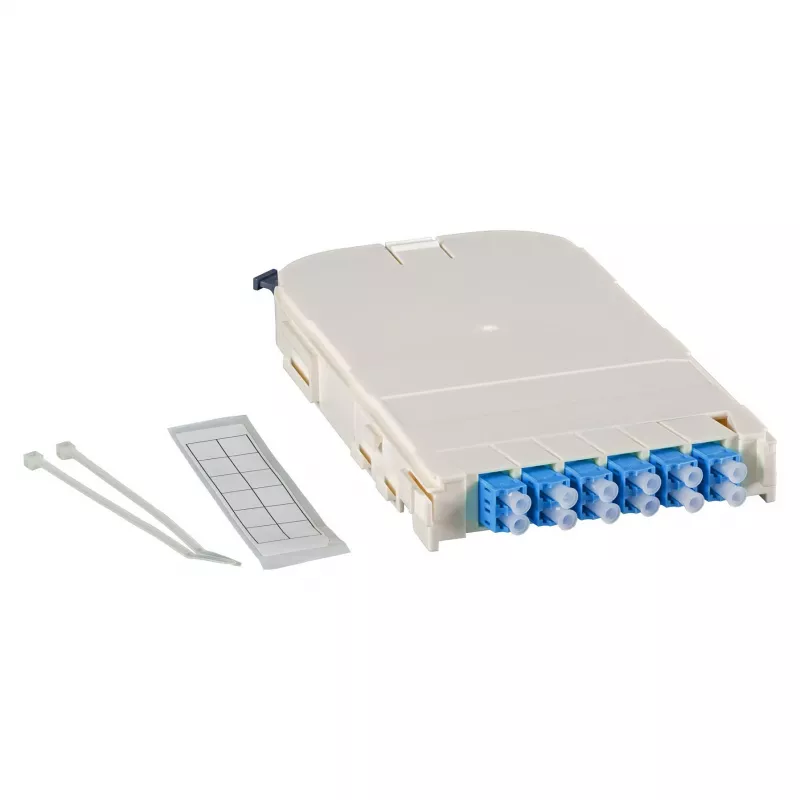

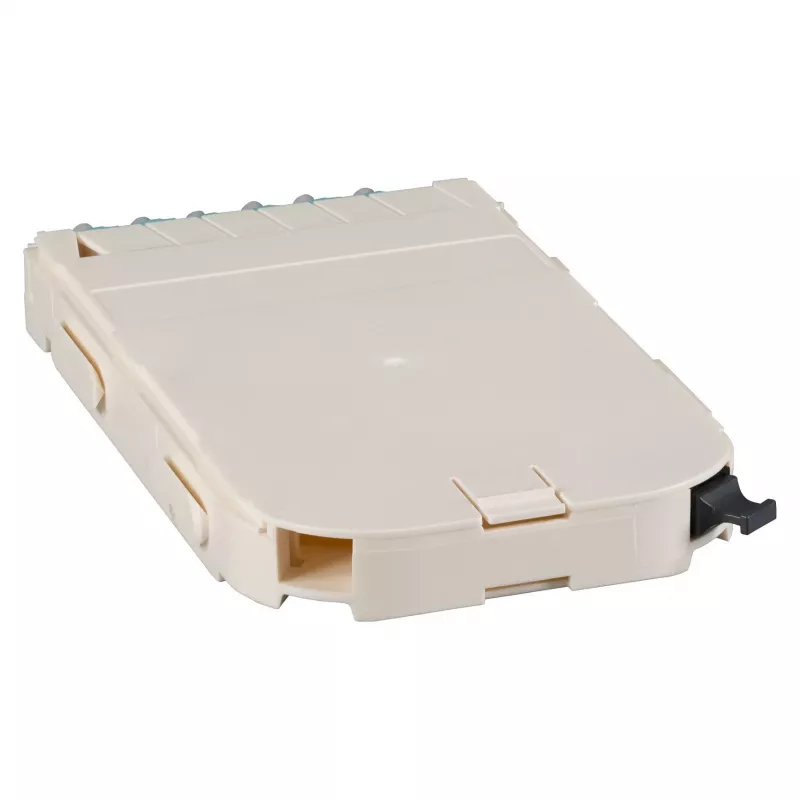

EFB Elektronik FTTH Module Insert pre FTTH-BGT, 12 port LC s OS2 keramickými spojkami

The EFB Elektronik FTTH Module Insert is a high-quality, 12-port LC module designed for use with EFB Elektronik FTTH Building Termination Points (BGT). It features OS2 single-mode ceramic couplers, ensuring reliable and low-loss fiber optic connections for FTTH networks.

Advantages

This module insert offers exceptional performance with typical insertion loss of ≤0.2 dB and return loss of ≥50 dB. The ceramic adapter sleeves provide durability and stability over more than 500 mating cycles. It is compliant with IEC 61754-20 and TIA/EIA-568.3-D standards, guaranteeing compatibility and reliability.

Suitable for

• Fiber-to-the-Home (FTTH) network installations
• Building Termination Points (BGT) from EFB Elektronik
• Single-mode fiber optic connections requiring OS2 performance
• High-density fiber management in telecommunications rooms

Key specifications

• Product Type: FTTH Module Insert
• Connector Type: LC
• Number of Ports: 12
• Fiber Mode: Single-mode
• Fiber Category: OS2 (G.657.A1/A2 compatible)
• Adapter Sleeve Material: Ceramic
• Connector Polish: PC (Physical Contact)
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Mating Cycles: > 500
• Standard Compliance: IEC 61754-20 (LC), TIA/EIA-568.3-D
• Compatibility: EFB Elektronik FTTH-BGT series
• Mounting Type: Module slot
• Number of Fibers Supported: 12

Recommendations

For optimal performance, pair this module insert with EFB Elektronik FTTH-BGT enclosures and use appropriate OS2 single-mode patch cables. Ensure proper handling and cleaning of LC connectors to maintain low insertion loss.
