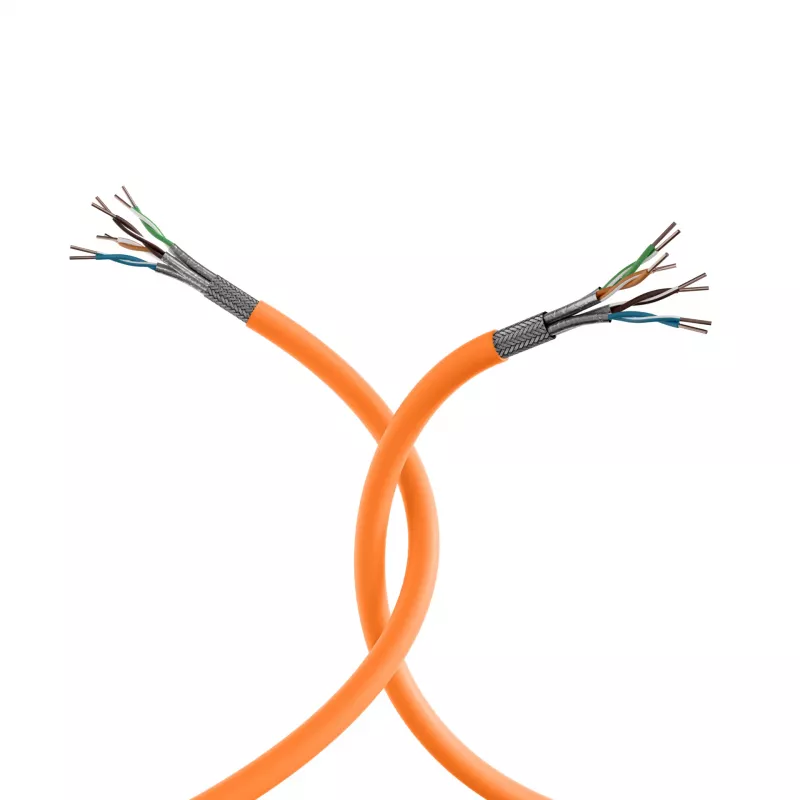

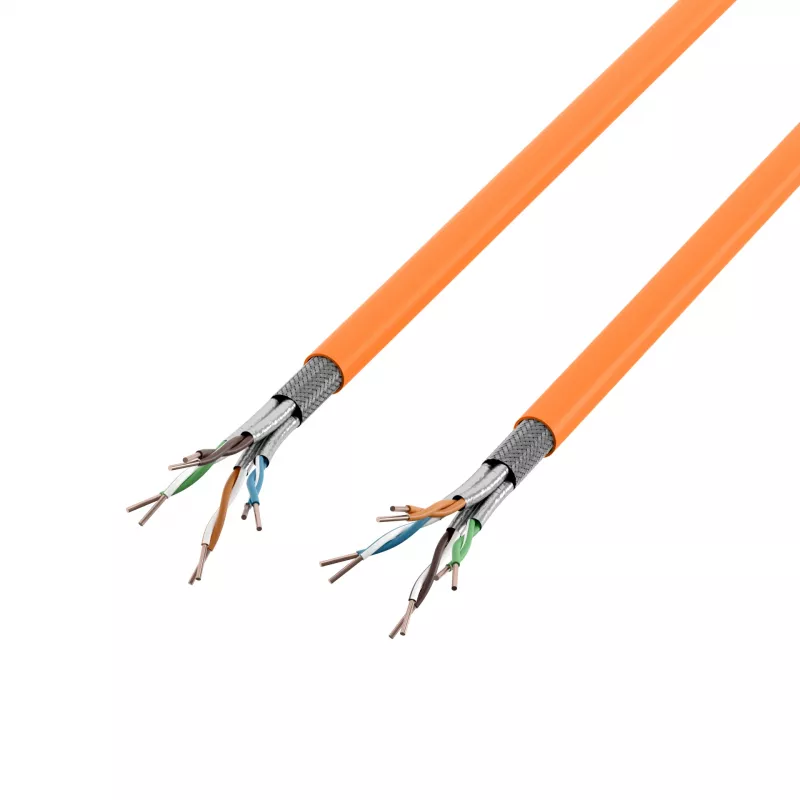

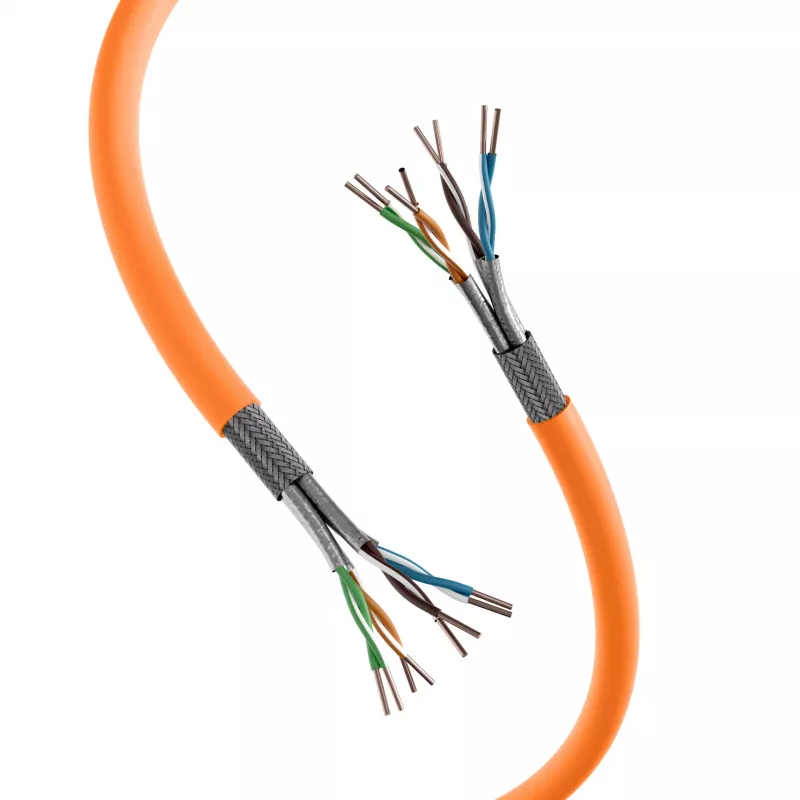

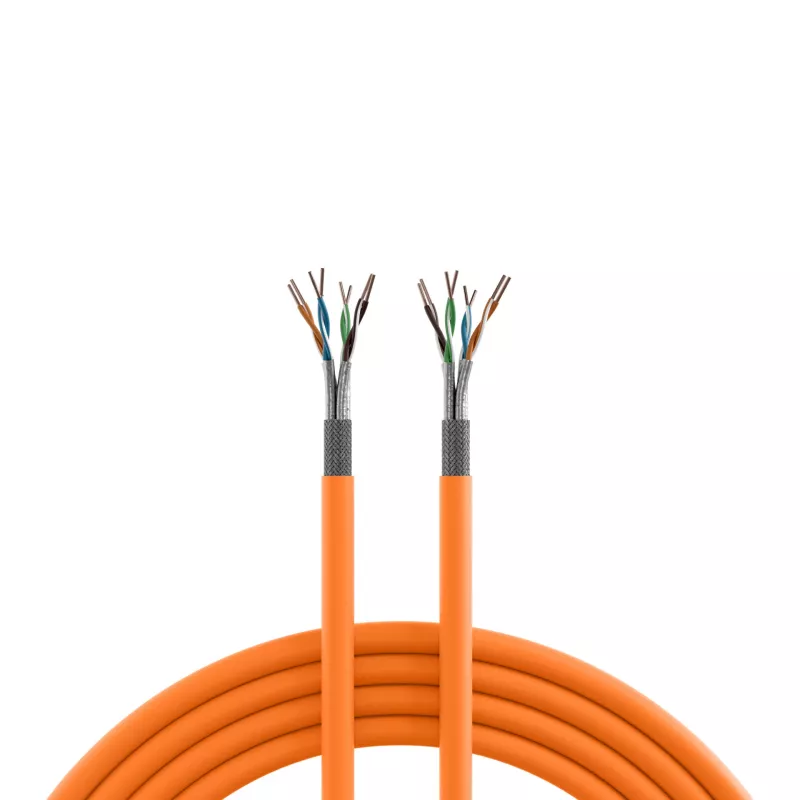

EFB Elektronik INFRA MK7100.1 inštalačný kábel Cat.7A 1200 MHz S/FTP AWG22 4P CPR Dca

The EFB Elektronik INFRA MK7100.1 is a high-performance installation cable designed for structured cabling systems requiring maximum data transmission rates. With Cat.7A classification and 1200 MHz bandwidth, it supports 10 Gigabit Ethernet (10GBASE-T) and is ideal for data centers, office networks, and industrial environments.

Advantages

This cable offers superior shielding (S/FTP) to minimize electromagnetic interference, ensuring reliable data transmission. The solid bare copper conductors and LSZH jacket provide durability and safety, while CPR Class Dca compliance guarantees fire performance for building installations.

Suitable for

• High-speed data networks (10 Gbit/s)
• Data center cabling
• Office and industrial structured cabling
• Installation in cable ducts and trays

Key specifications

• Cable type: Installation cable (Verlegekabel)
• Category: Cat.7A (Class FA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Frequency: 1200 MHz
• Conductor gauge: AWG22
• Number of pairs: 4
• Conductor material: Solid bare copper
• Jacket material: LSZH (Low Smoke Zero Halogen)
• CPR class: Dca-s2,d2,a1
• Impedance: 100 Ohm
• Outer diameter: approx. 7.8 mm
• Operating temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with compatible Cat.7A connectors and ensure proper installation practices. This cable is suitable for fixed installations in dry or damp environments.
