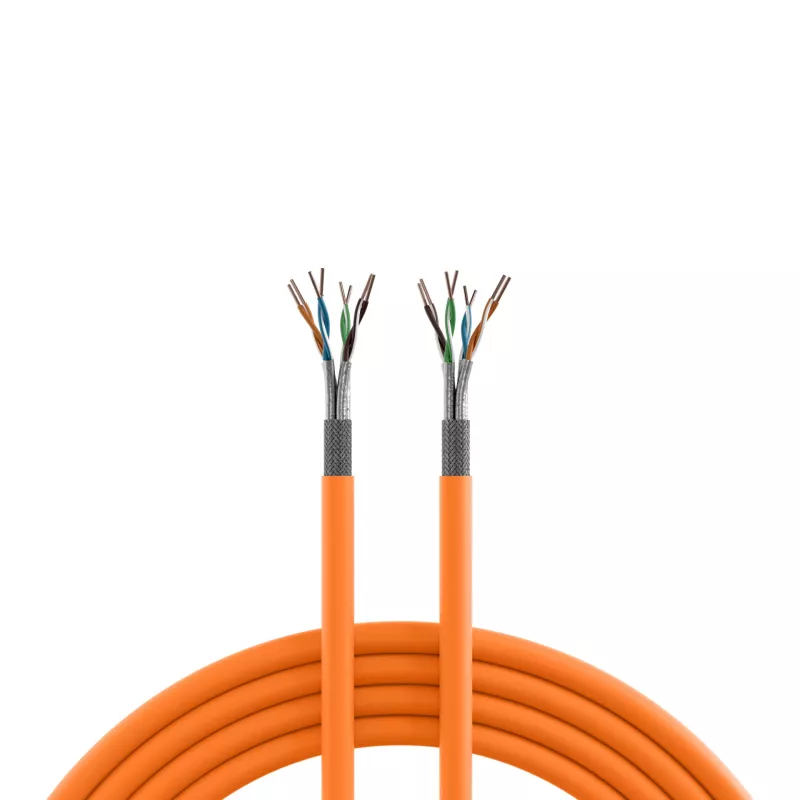

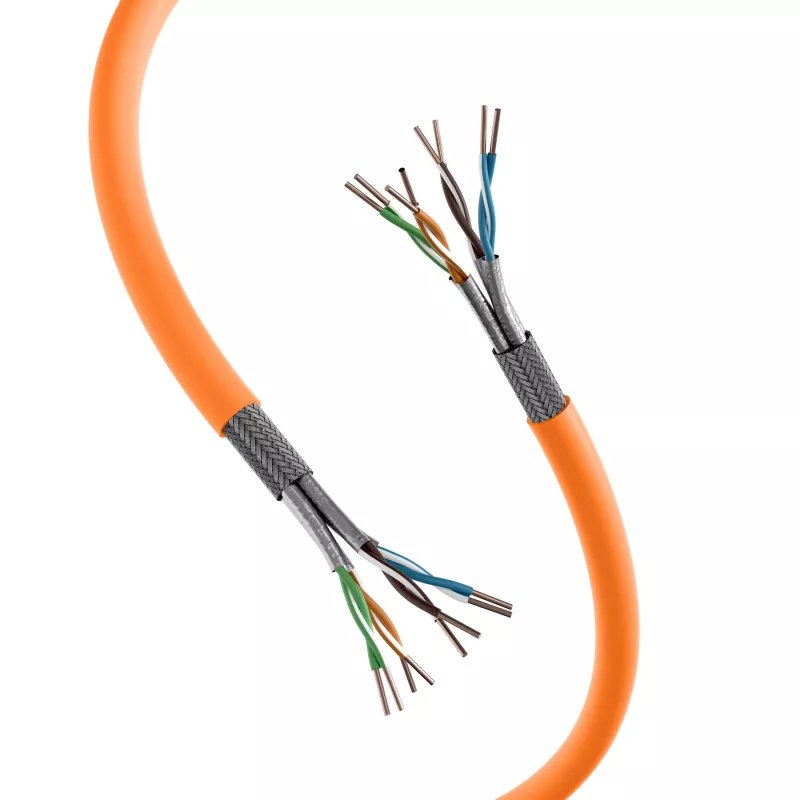

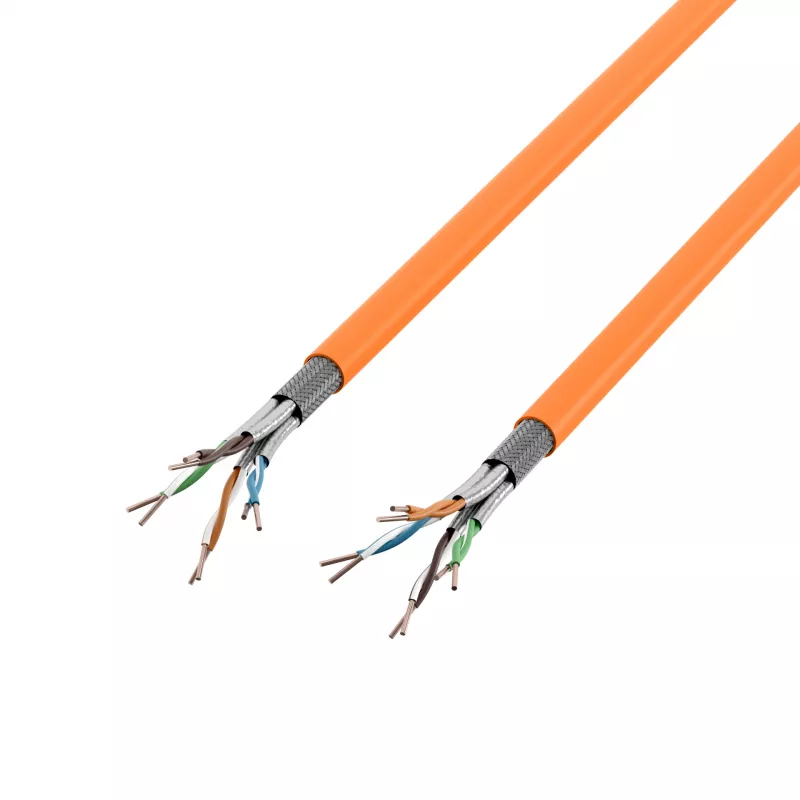

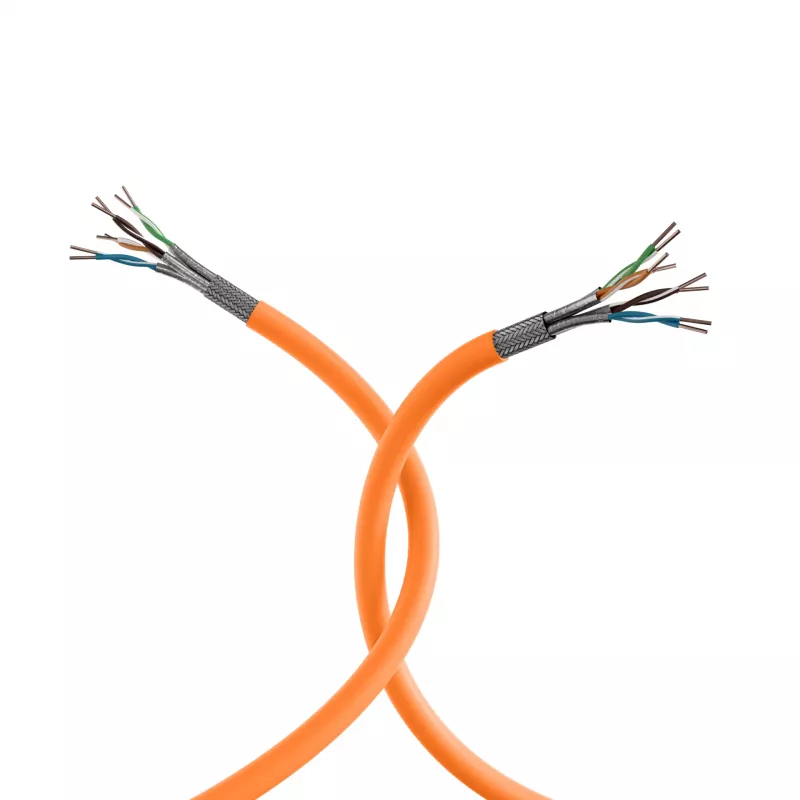

EFB Elektronik INFRALAN hromadný inštalačný kábel 1m SFTP Cat.7 LSZH oranžový

Structured cabling in office buildings and data centers demands reliable, high-performance links that can handle 10 Gigabit Ethernet without interference. The EFB Elektronik INFRALAN bulk cable delivers exactly that: a Cat.7 S/FTP installation cable with individually shielded pairs and an overall braid, ensuring exceptional crosstalk and noise immunity. Its LSZH jacket adds safety in fire-sensitive areas, while the solid bare copper conductors guarantee low attenuation over long runs. This 1-meter length is ideal for patch panels, consolidation points, or custom-length terminations.

Who is it for

Network installers, system integrators, and IT technicians who build or maintain high-speed copper infrastructures. It suits projects requiring ISO/IEC 11801 and EN 50173 compliance, especially where halogen-free cabling is mandated.

Main features

• Category 7 performance up to 600 MHz, supporting 10GBASE-T Ethernet
• S/FTP shielding: individual foil per pair plus overall braid for maximum EMI protection
• Solid bare copper conductors, AWG 23, for stable signal integrity
• LSZH (Low Smoke Zero Halogen) orange jacket for safety and visibility
• Halogen-free and flame retardant per IEC 60332-1-2
• 100 Ohm impedance, compliant with TIA/EIA-568-C.2

Specifications

• Cable type: Installation cable, Cat.7
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Conductor material: Bare copper, solid
• Conductor gauge: AWG 23
• Number of pairs: 4
• Outer jacket: LSZH, orange
• Outer diameter: approx. 7.5 mm
• Impedance: 100 Ohm
• Frequency range: Up to 600 MHz
• Application: 10 Gigabit Ethernet (10GBASE-T), Gigabit Ethernet
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame retardancy: IEC 60332-1-2
• Halogen free: Yes
• Operating temperature: -20°C to +60°C
• Packaging unit: 1 meter

Tips

For best performance, use shielded RJ45 connectors and maintain proper grounding of the braid at both ends. This cable is ideal for high-density environments where electromagnetic interference is a concern.
