EFB Elektronik INFRALAN U-DQ(ZN)BH 4G 50/125 OM2 LSZH čierny CPR Dca

The EFB Elektronik INFRALAN U-DQ(ZN)BH 4G is a high-quality multimode fiber optic cable designed for universal indoor/outdoor use. With 4 fibers, OM2 grade, and a 50/125 µm core/cladding, it delivers reliable performance for data transmission. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, and the CPR Dca-s2, d2, a1 fire classification meets European standards.

Advantages

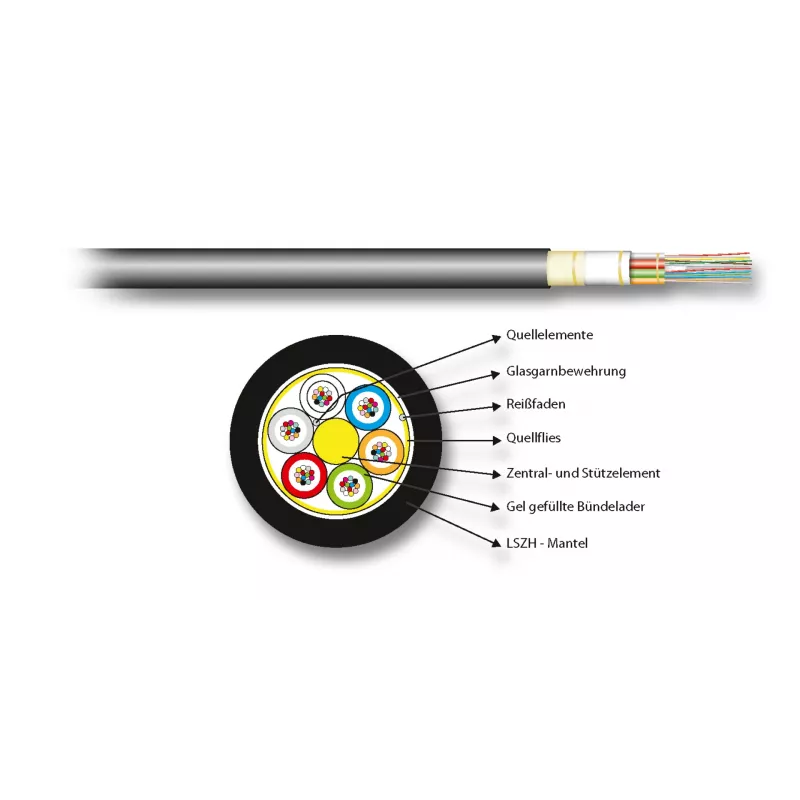

This cable offers low attenuation (≤2.5 dB/km at 850nm, ≤0.8 dB/km at 1300nm) and high bandwidth (≥500 MHz·km), making it ideal for high-speed networks. Its robust construction with aramid yarns provides excellent tensile strength (1500 N) and crush resistance (1000 N/10cm). The black LSZH jacket is durable and flame-retardant, reducing toxic smoke in case of fire.

Suitable for

• Indoor and outdoor fiber optic installations
• Data centers, LAN backbones, and campus networks
• Applications requiring CPR Dca fire safety compliance
• Environments where low smoke and zero halogen are critical

Key specifications

• Fiber Type: Multimode OM2
• Fiber Count: 4
• Core/Cladding: 50/125 µm
• Jacket: LSZH, Black
• CPR Class: Dca-s2, d2, a1
• Outer Diameter: approx. 6.0 mm
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius (Installation): 20 x OD
• Tensile Strength: 1500 N

Recommendations

For optimal performance, use with appropriate connectors (LC, SC, FC, or ST) and ensure proper installation to maintain bend radius and tensile limits. This cable is ideal for structured cabling systems requiring reliable, high-bandwidth connectivity.
