EFB Elektronik INFRALAN U-DQ(ZN)BH 4G 50/125 OM5 LSZH čierna CPR Dca

The EFB Elektronik INFRALAN U-DQ(ZN)BH 4G 50/125 OM5 LSZH Black CPR Dca is a high-performance loose tube fiber optic cable designed for demanding indoor and outdoor installations. With 4 multimode fibers of OM5 class, it supports wideband multimode fiber (WBMMF) technology for high-speed data transmission over short to medium distances. The cable features a low smoke zero halogen (LSZH) jacket, ensuring safety in confined spaces, and meets CPR fire class Dca-s2, d2, a1 for European construction regulations.

Advantages

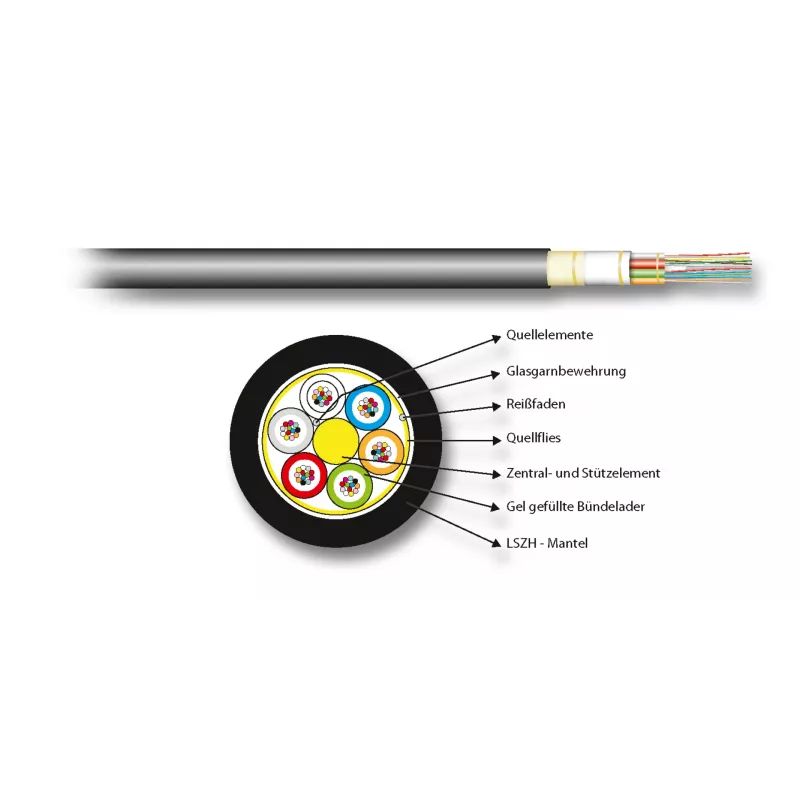

OM5 fiber enables transmission over multiple wavelengths, increasing capacity without additional fibers. The LSZH jacket reduces toxic and corrosive emissions during fire, making it ideal for public buildings and data centers. The loose tube construction provides excellent protection against moisture and mechanical stress.

Suitable for

• Data center backbone cabling
• Local area network (LAN) installations
• Building and campus backbone networks
• Industrial environments requiring flame-retardant cables

Key specifications

• Fiber type: Multimode OM5 (50/125 µm)
• Number of fibers: 4
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Black
• CPR class: Dca-s2, d2, a1
• Cable length: 1000 m
• Outer diameter: 6.5 mm
• Attenuation at 850 nm: ≤ 2.3 dB/km
• Attenuation at 953 nm: ≤ 2.3 dB/km
• Attenuation at 1300 nm: ≤ 0.6 dB/km
• Bandwidth at 850 nm (OFL): 2800 MHz·km
• Bandwidth at 953 nm (OFL): 1500 MHz·km
• Bandwidth at 850 nm (EMB): 4700 MHz·km
• Operating temperature: -20°C to +60°C
• Storage temperature: -20°C to +60°C
• Tensile strength (installation): 1500 N

Recommendations

For optimal performance, use with OM5-compatible transceivers and connectors. Ensure proper cable management to maintain bend radius and avoid excessive tension during installation.
