EFB Elektronik IP67KVRJ45TM31 - káblová priechodka, M25, RJ45

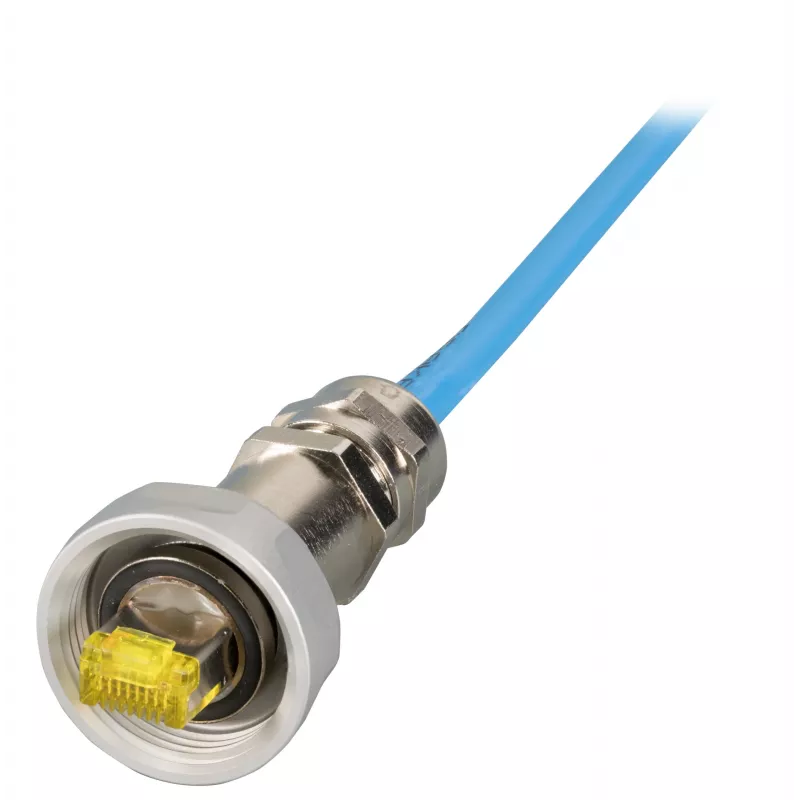

The EFB Elektronik IP67KVRJ45TM31 is a robust RJ45 panel mount coupler designed for industrial Ethernet applications in harsh environments. Featuring an M25 thread and IP67 ingress protection, this feed-through connector ensures reliable data transmission up to 10 Gigabit Ethernet (Cat.6A compatible). The nickel-plated brass housing with 360° shielding provides excellent durability and EMI protection.

Advantages

This coupler offers a secure and waterproof connection for RJ45 cables, making it ideal for outdoor or industrial settings. Its compact design allows for easy panel mounting, and the gold-plated contacts ensure optimal signal integrity. The IP67 rating guarantees protection against dust and temporary immersion in water.

Suitable for

• Industrial Ethernet networks
• Outdoor and harsh environment installations
• Panel feed-through applications
• Data centers and automation systems

Key specifications

• Product Type: RJ45 Panel Mount Coupler / Feed-through
• Thread Size: M25 x 1.5
• Ingress Protection: IP67
• Connector Type: RJ45 Socket (8P8C) to RJ45 Socket (8P8C)
• Mounting Type: Panel Mount (Screw-in)
• Housing Material: Nickel-plated Brass
• Insulator Material: Polyamide (PA)
• Seal Material: Nitrile Butadiene Rubber (NBR)
• Shielding: 360° Shielded
• Data Transmission Speed: Up to 10 Gigabit Ethernet (Cat.6A compatible)
• Operating Temperature Range: -20°C to +70°C
• Max. Panel Thickness: 5 mm
• Standards Compliance: RoHS, REACH
• Number of Ports: 1
• Color: Metallic (Silver)
• Contact Plating: Gold

Recommendations

For optimal performance, use with Cat.6A or higher shielded RJ45 cables. Ensure proper tightening of the M25 gland to maintain IP67 protection. Suitable for use in control cabinets, junction boxes, and outdoor enclosures.
