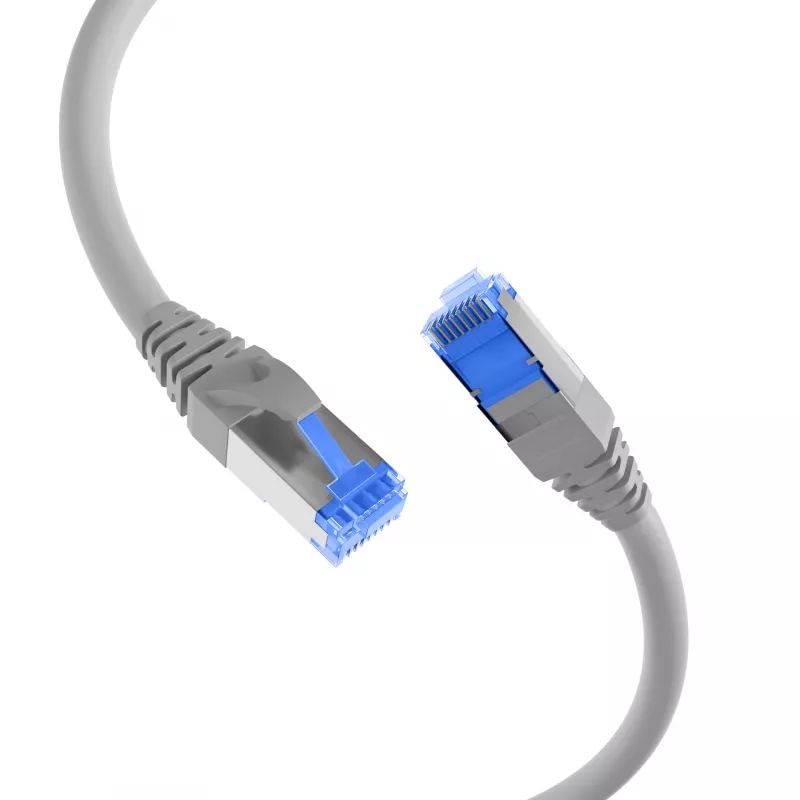

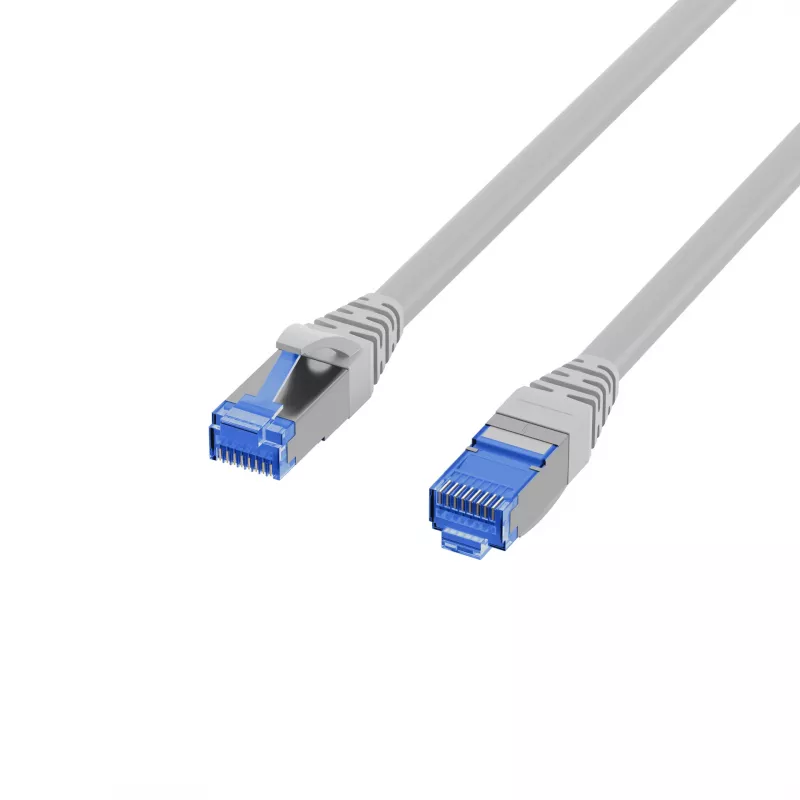

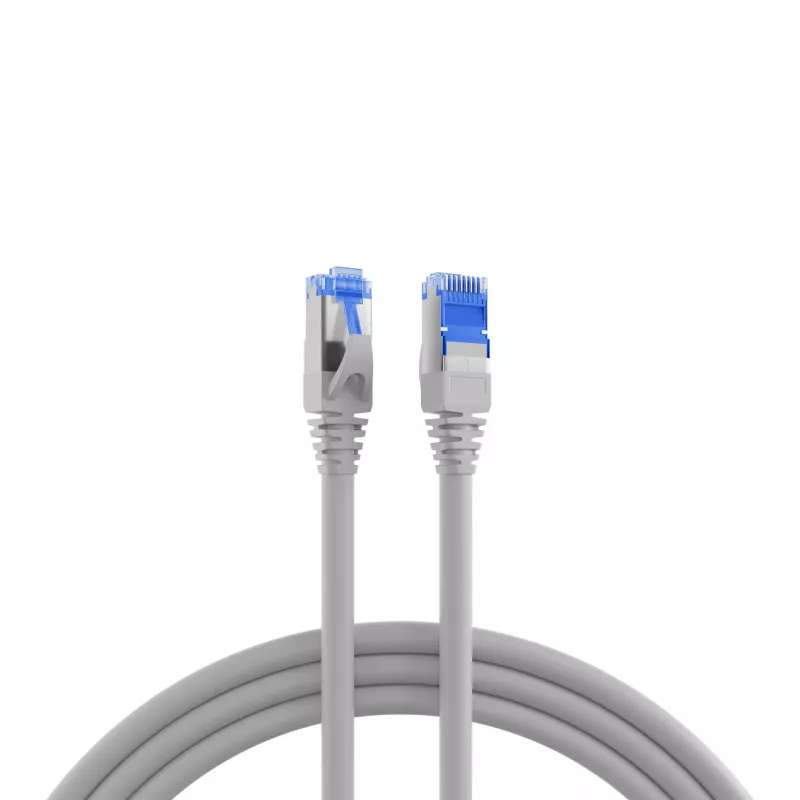

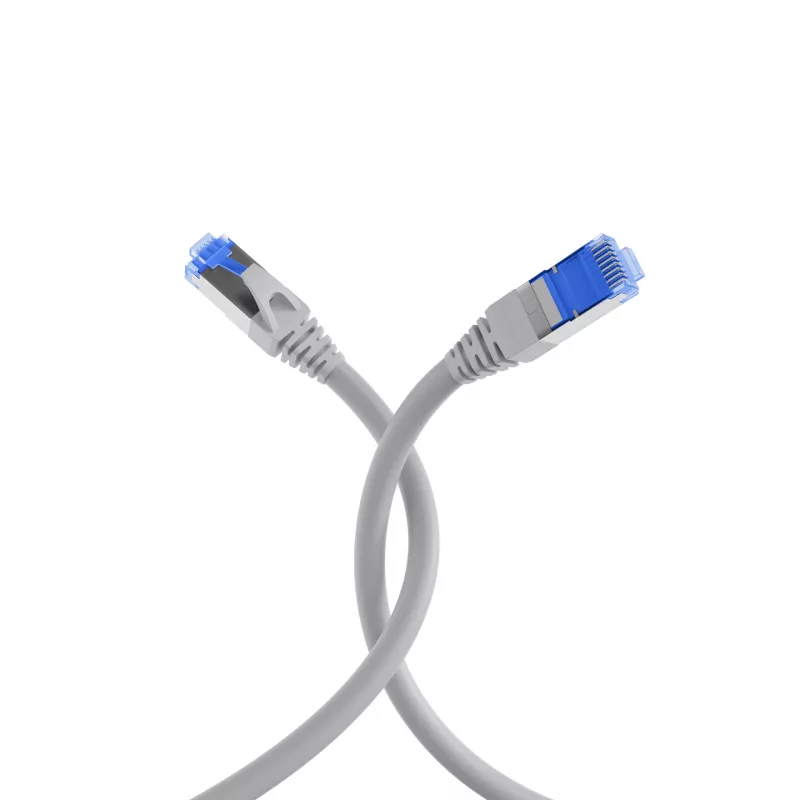

EFB Elektronik IPK-6A-U-TPE-GR-0500 Cat6a S/FTP patch kábel 5 m sivá

The EFB Elektronik IPK-6A-U-TPE-GR-0500 is a high-performance Cat6a S/FTP patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 5 meters and a robust TPE jacket, this cable is ideal for demanding network environments where signal integrity and durability are paramount.

Advantages

This cable offers superior shielding (S/FTP) to minimize electromagnetic interference, ensuring stable data transmission. The TPE jacket is halogen-free and flame retardant, making it suitable for use in public buildings and areas with strict fire safety requirements. It supports PoE++ (IEEE 802.3bt) for powering devices such as IP cameras and wireless access points.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Industrial environments where cable durability is critical
• PoE applications including IP cameras, VoIP phones, and access points
• 10GBASE-T networks up to 100 meters

Key specifications

• Cable Type: Patch Cable
• Category: Cat6a (Class EA)
• Shielding: S/FTP (PIMF)
• Connectors: RJ-45 Male to RJ-45 Male
• Length: 5 m
• Jacket Material: TPE (Thermoplastic Elastomer)
• Colour: Grey
• Conductor: Copper, AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA 568-B
• Halogen Free: Yes (LSZH)
• Flame Retardant: Yes (IEC 60332-1-2)
• Bandwidth: 500 MHz
• Data Transfer Rate: 10 Gbps
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Connector Design: Slimline, Unbooted
• Operating Temperature: -20°C to +60°C
• Outer Diameter: Approx. 6.2 mm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Recommendations

For optimal performance, pair this cable with compatible Cat6a or higher networking equipment. Ensure proper cable management to maintain signal integrity.
