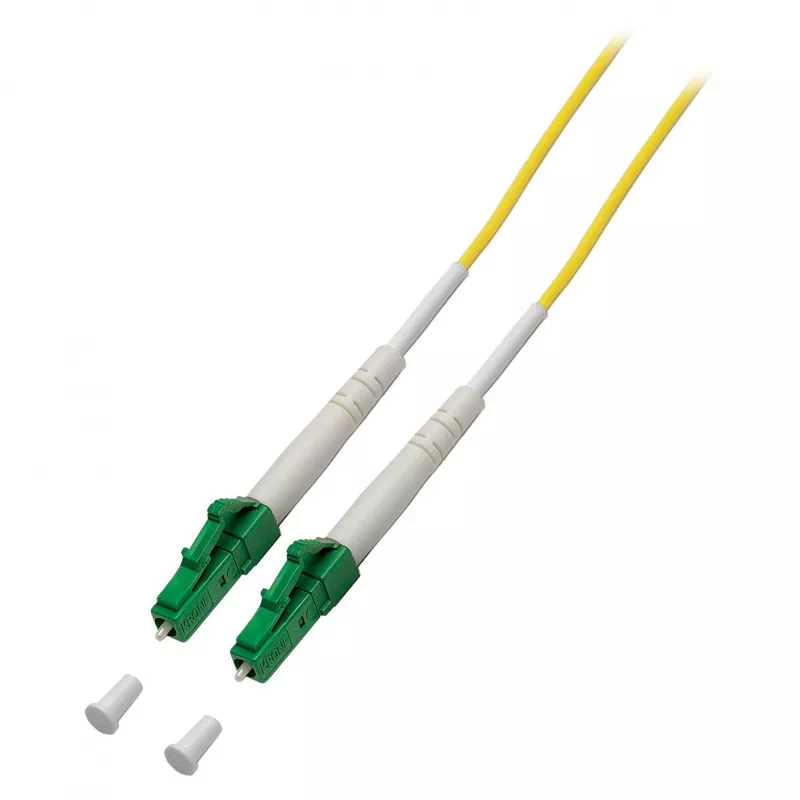

EFB Elektronik O2519.2 simplex optický patch kábel LC/APC na LC/APC OS2 9/125 2m G.657.A2 LSZH žltý

The EFB Elektronik O2519.2 is a high-quality simplex fibre optic patch cable designed for single-mode applications. It features LC/APC connectors on both ends, ensuring low insertion loss and high return loss for reliable data transmission. The cable is 2 meters long, with a 9/125 µm core/cladding and G.657.A2 bend-insensitive fibre, making it ideal for indoor installations where tight bends are required. The yellow LSZH jacket provides safety and easy identification.

Advantages

This patch cable offers excellent performance with typical insertion loss <0.3 dB and return loss >60 dB. The bend-insensitive fibre (G.657.A2) allows for flexible routing without signal degradation. LSZH jacket ensures low smoke and zero halogen, enhancing safety in enclosed spaces.

Suitable for

• Data centres
• Telecommunications networks
• FTTH (Fibre to the Home) installations
• Local area networks (LANs)
• Any single-mode fibre optic connection requiring APC polish

Key specifications

• Connector Type: LC/APC to LC/APC
• Fibre Mode: Single-mode (OS2)
• Core/Cladding: 9/125 µm
• Fibre Standard: ITU-T G.657.A2
• Number of Fibres: 1 (Simplex)
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss: <0.3 dB (typical)
• Return Loss: >60 dB (typical)

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice trays. This cable is compatible with standard LC/APC interfaces.
