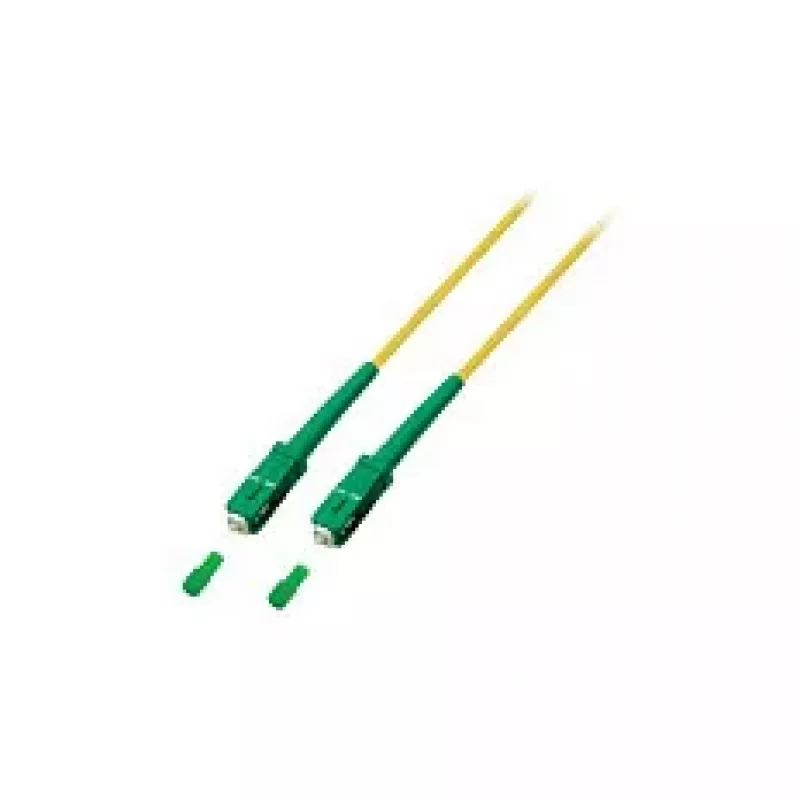

EFB Elektronik Simplex prepoj SC/APC-SC/APC 9/125µm OS2 LSZH žltý 3,0mm 15m

The EFB Elektronik Simplex Jumper is a high-quality fiber optic patch cable designed for single-mode applications. With SC/APC connectors on both ends, it ensures low insertion loss and high return loss, making it ideal for critical network infrastructures. The cable features a 9/125µm core/cladding, OS2 fiber class, and a durable LSZH (Low Smoke Zero Halogen) jacket in yellow, with a diameter of 3.0mm and a length of 15 meters.

Advantages

This simplex jumper offers excellent signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH jacket provides enhanced safety in enclosed spaces by reducing toxic and corrosive emissions during combustion. The 3.0mm diameter ensures flexibility while maintaining durability, and the yellow color aids in easy identification.

Suitable for

• Data centers
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Any single-mode fiber optic connection requiring SC/APC interfaces

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Type: Simplex
• Fiber Type: Single-mode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Connector A: SC/APC
• Connector B: SC/APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Cable Color: Yellow
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 30 mm
• Durability: 500 Mating Cycles
• Standards Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is suitable for indoor use in controlled environments. For outdoor installations, use appropriate protection.
