EFB Elektronik univerzálna podstava 800 x 800 mm, výška 100 mm, RAL 7035

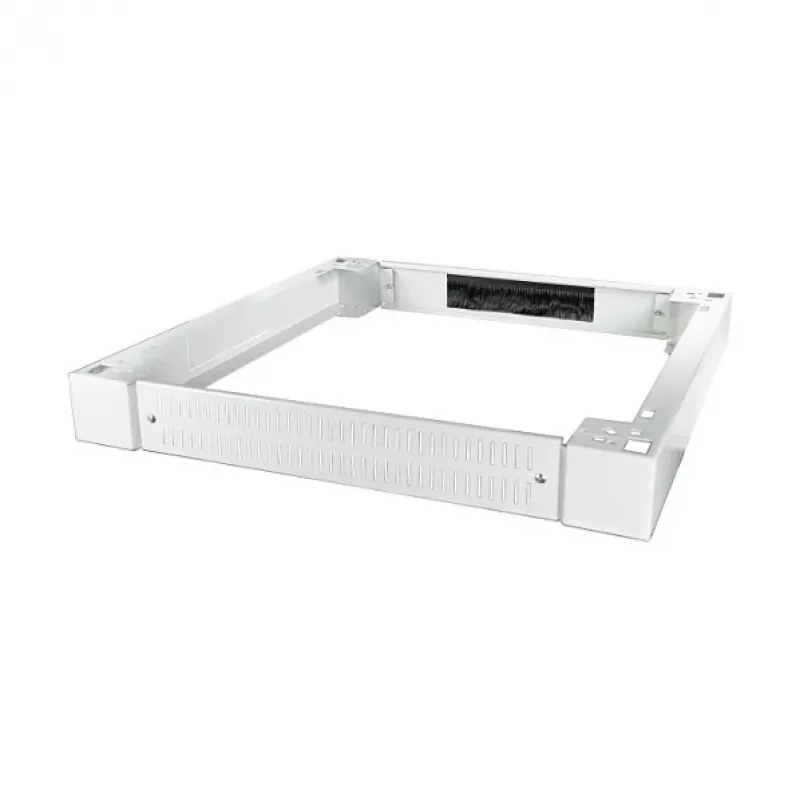

This EFB Elektronik Universal Plinth sets itself apart from ordinary rack bases by combining a rugged welded steel frame with a precisely matched 800 x 800 mm footprint and a 100 mm elevation that actively improves both cabinet stability and under-floor airflow. Instead of a simple spacer, you get a purpose-built foundation that integrates removable cable entry panels, so power and data lines can be routed cleanly without drilling or awkward cutouts.

Highlights

• Compatible with standard 800 mm wide and 800 mm deep server cabinets and network racks
• 100 mm plinth height creates a dedicated cable routing zone and improves bottom ventilation
• Powder-coated steel construction in light grey (RAL 7035) for durability and a professional look
• Removable panels provide flexible cable entry from the front, rear, or sides
• Supplied with all necessary mounting material for quick installation under the cabinet

In daily use

Once installed beneath a server cabinet, the plinth raises the entire enclosure off the floor, reducing the risk of dust and moisture ingress while making it easier to clean around the rack. The extra clearance also allows cold air to reach bottom-mounted equipment more effectively, and the removable panels let you bring in bundles of network or power cables without compromising the clean appearance of the installation. Because the plinth matches the cabinet's width and depth exactly, it forms a seamless, stable base that resists shifting even in busy data center aisles.

Full specifications

• Product type: Plinth / Base
• Compatible cabinet width: 800 mm
• Compatible cabinet depth: 800 mm
• Plinth height: 100 mm
• Material: Steel
• Surface finish: Powder-coated
• Colour: Light grey (RAL 7035)
• Cable entry: Yes (via removable panels)
• Mounting position: Under cabinet
• Included components: Mounting material

Final note

For any standard 800 mm server cabinet, this universal plinth is an essential accessory that delivers both mechanical stability and practical cable management in one robust package.
