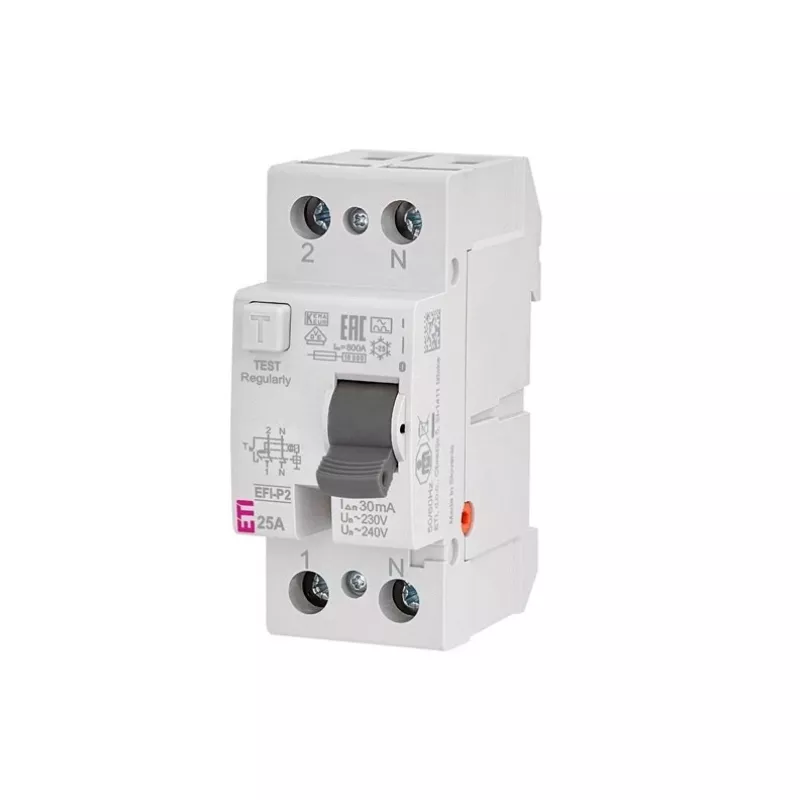

EFI-P2 25A/30MA/A prúdový chránič 25A 2P 2M 30MA Typ A 10kA

The EFI-P2 25A/30MA/A Differential Circuit Breaker is a high-quality residual current circuit breaker (RCCB) designed for reliable protection against earth faults. With a rated current of 25A and a residual operating current of 30mA, it ensures safety in residential and commercial electrical installations. This 2-pole, 2-module unit features Type A sensitivity, making it suitable for circuits with electronic loads.

Advantages

This RCCB provides enhanced protection against electric shock and fire hazards caused by earth leakage currents. Its compact 2-module design saves space on DIN rail enclosures. The integrated test button allows for easy periodic testing, and the tripping indicator provides clear visual status. With a high short-circuit breaking capacity of 10kA, it offers robust performance.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control systems requiring earth leakage protection
• Circuits with sensitive electronic equipment

Key specifications

• Product Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 2P
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Residual Current Type: Type A
• Rated Voltage (Un): 230 V AC
• Rated Frequency: 50/60 Hz
• Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Mounting Type: DIN Rail
• Module Width: 2 Modules
• Degree of Protection: IP20 (Terminals), IP40 (Enclosure)
• Operating Temperature Range: -25°C to +55°C
• Terminal Capacity: 1-25 mm²
• Standards: IEC/EN 61008-1
• Electrical Endurance: 4000 cycles
• Mechanical Endurance: 10000 cycles
• Tripping Indicator: Yes
• Test Button: Yes

Recommendations

For optimal safety, install this RCCB in accordance with local electrical regulations. Regularly test the device using the test button to ensure proper functionality. Suitable for use in circuits with sinusoidal and pulsating DC residual currents.
