ELEKTRA-PLUS R5 elektrický otvárač dverí s blokovaním, symetrický, úzky 16,5mm 9125

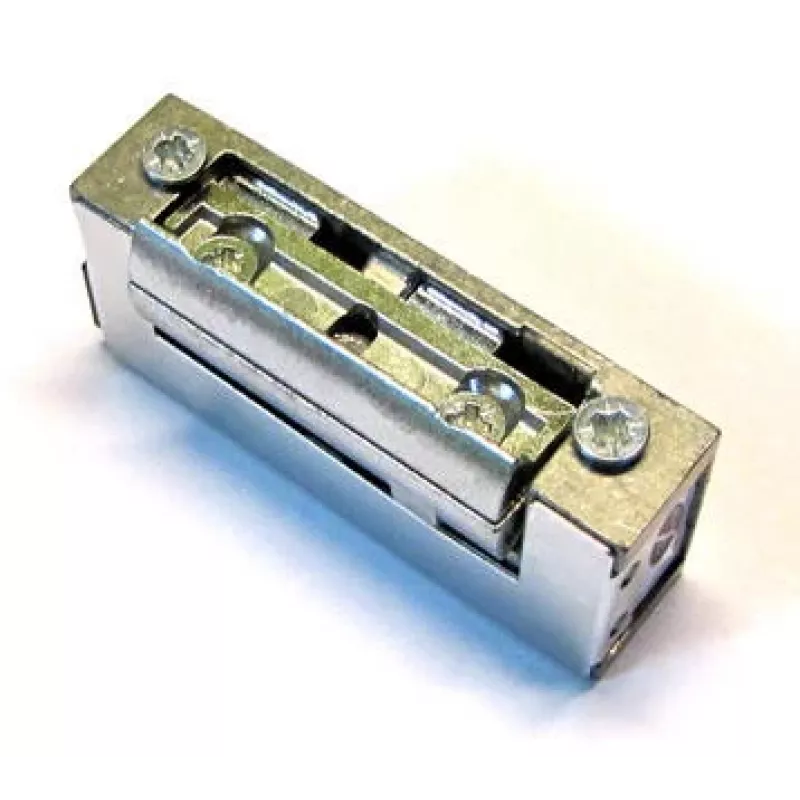

The ELEKTRA-PLUS R5 electric strike with blockade is a symmetrical narrow strike designed for remote opening of left and right doors and double-leaf doors. It is compatible with latch or latch-and-bolt locks and features a special latch design that allows installation with a smaller frame cutout.

Key features

• Symmetrical design – one model for left and right doors
• Blockade function – allows the latch to be left open via a mechanical switch (offices, service facilities)
• Special latch construction enables mounting with a smaller frame cutout
• Adjustable latch with 3 mm adjustment range for clearance
• Designed for doors with aluminium and PVC profiles

Specifications

• Brand: Elektra-Plus
• MPN: R5-12.20

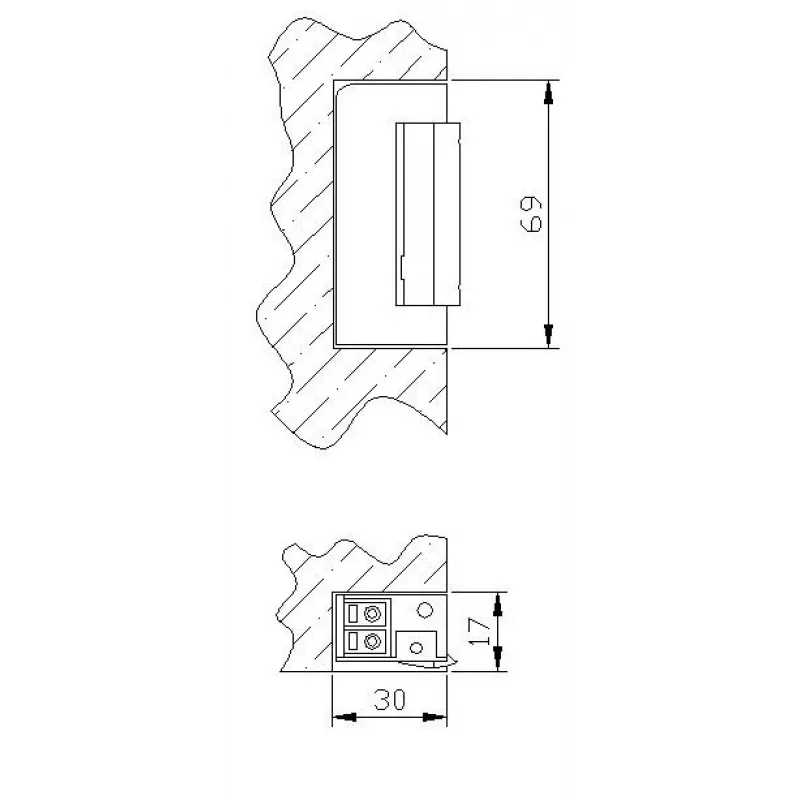

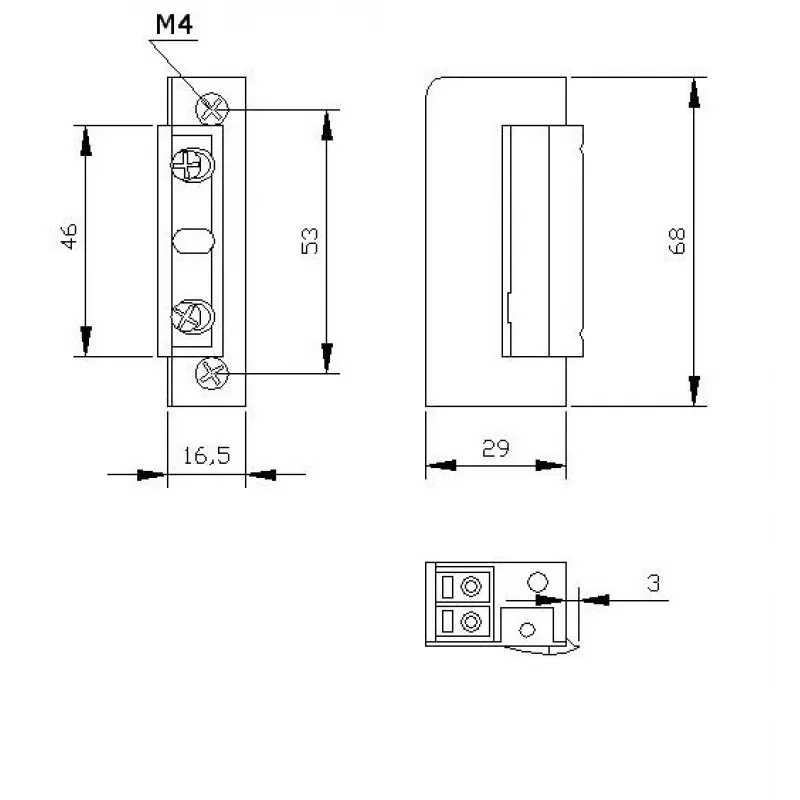

• External housing dimensions: 16.5 x 29 x 67 mm
• Weight: 0.13 kg
• Maximum weight of strike with faceplate: 0.34 kg
• Permissible pressure on door during latch release: 30 N (3 kG)
• Permissible load on door acting on strike: 3000 N (300 kG)
• Rated voltage U: 10 ± 2V
• Permissible continuous operation time: 30 min
• Latch: adjustable within 3 mm range
