ELEKTRA-PLUS R2 úzky ľavý elektrický otvárač dverí 1339

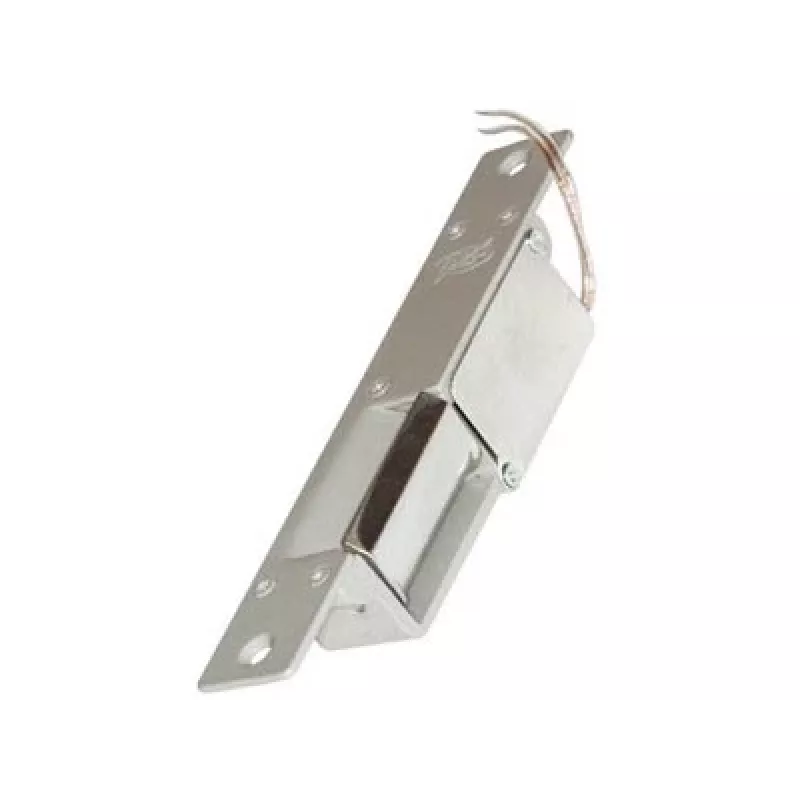

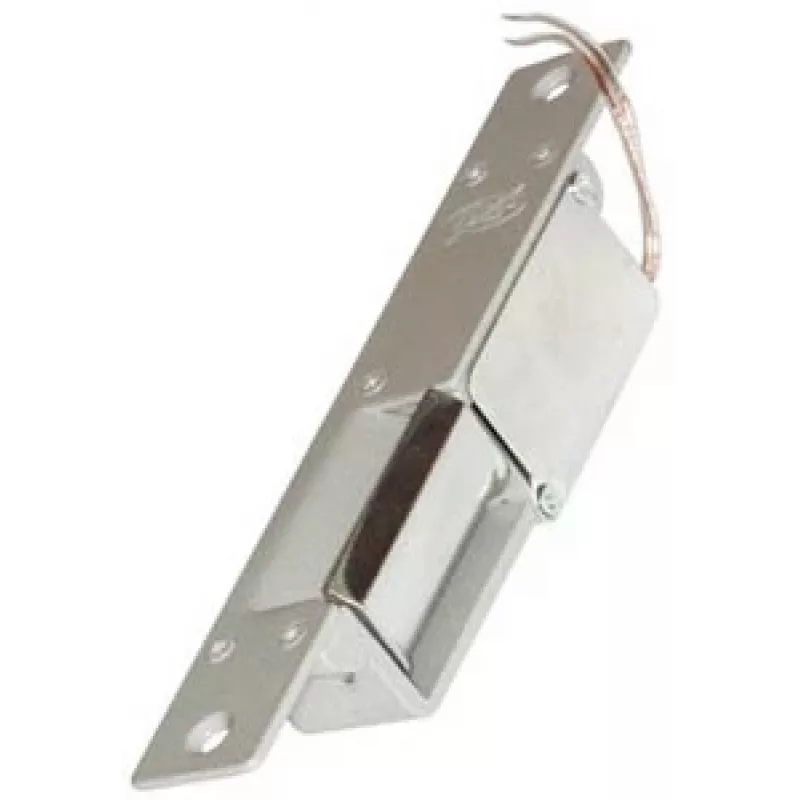

The ELEKTRA-PLUS R2 Narrow Left Electric Strike 1339 is a narrow electric strike designed for door access control. It features a compact housing and operates on a rated voltage of 10 ± 2V or 24 ± 2V (special version).

Key features

• Narrow left-handed electric strike
• Rated voltage U: 10 ± 2V * / 24 ± 2V **
• Current I: AC 340-540mA, DC 630-940mA
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load on strike: 2500 N (250 kG)
• Permissible continuous operation time: 30 min.

Specifications

• Brand: Elektra-Plus
• MPN: R2-12.10L
• Model: R2-12.10L

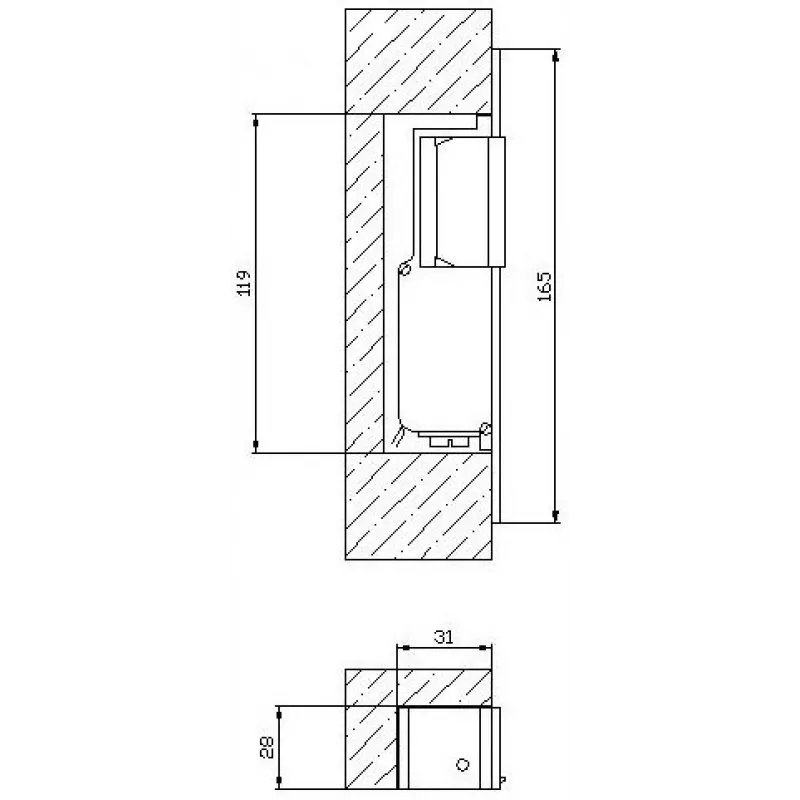

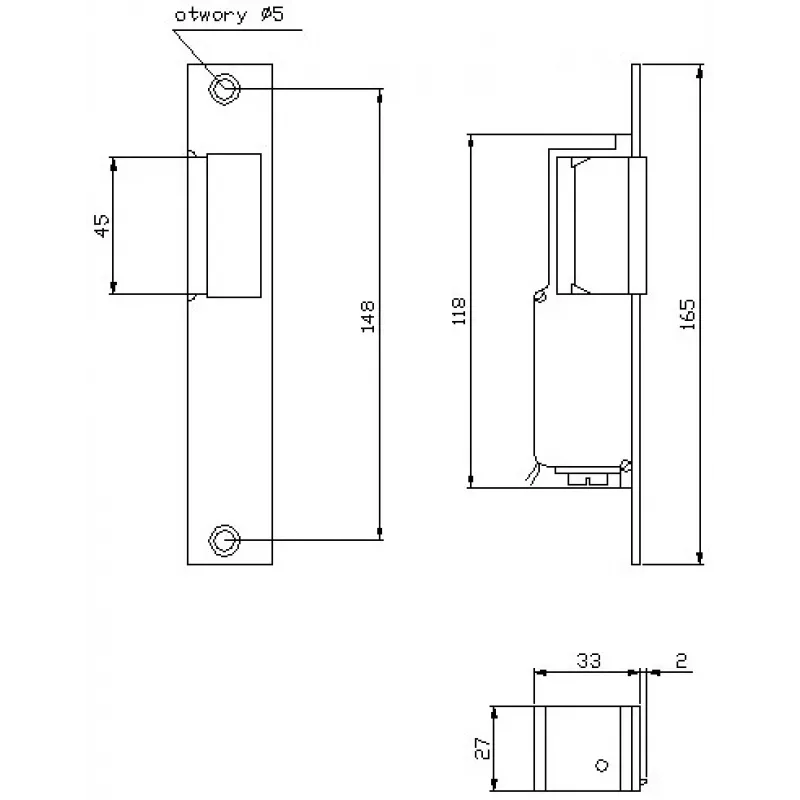

• External housing dimensions: 27 x 33 x 118 mm
• Weight: 0.25 kg
• Rated voltage U: 10 ± 2V * / 24 ± 2V **
• Current I: AC 340-540mA, DC 630-940mA
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load on strike: 2500 N (250 kG)
• Permissible continuous operation time: 30 min.

* allows the use of a bell transformer
** in special version
