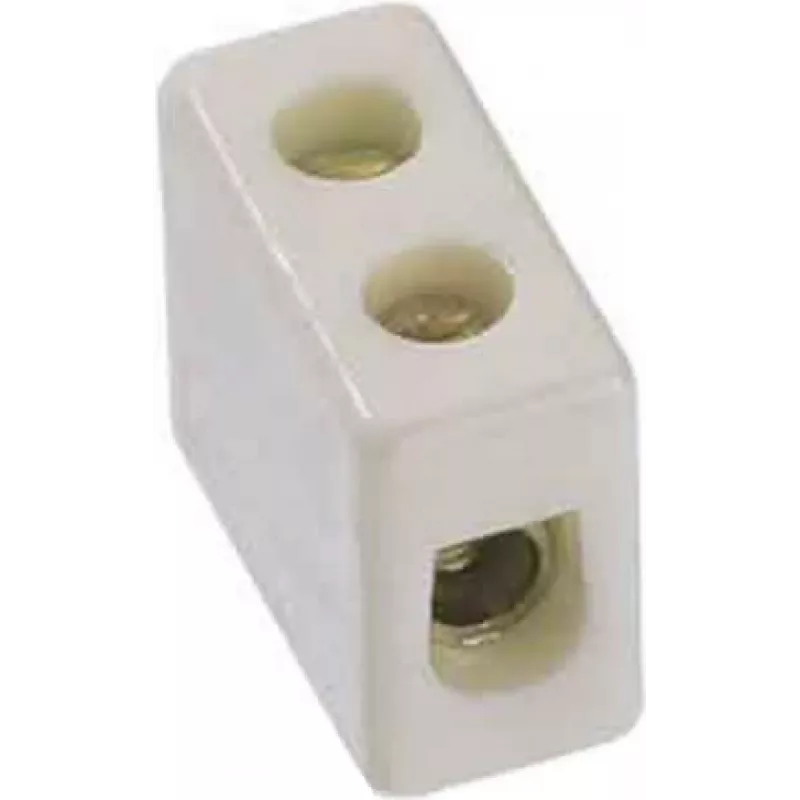

Elektrická svorka Bachmann 950.000, porcelán, biela, výška 12 mm

Bachmann 950.000 is a compact electrical terminal in white porcelain with a height of 12 mm. The porcelain body provides electrical insulation and resistance to elevated temperatures, making the terminal suitable for secure connections in installations, appliances, repair and maintenance tasks where a small insulating terminal is required. The terminal accepts wire cross sections up to 2.50 mm² and is specified as heat-resistant up to the low-voltage temperature range.

Advantages

The porcelain construction ensures reliable electrical insulation and improved heat resistance compared with many plastic terminals. Its compact 12 mm height saves space in tight installations. The terminal is suitable for secure screw connections for single wires up to 2.50 mm², and the white finish makes it simple to integrate visually in many applications.

Suitable for

• Internal wiring of appliances and electrical boxes
• Repair and maintenance of household electrical connections
• Small installation projects requiring insulated terminals
• Situations where ceramic heat resistance and electrical insulation are needed

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 950.000
• Material: Porcelain (ceramic)
• Color: White
• Height: 12 mm
• Wire cross section (max): up to 2.50 mm²
• Heat resistance: up to low-voltage temperature range (specified as up to 20 °C in source)
• EAN: 4016514009909

How to use

Strip the conductor to the appropriate length, insert the wire into the terminal entry and secure it with the screw connection according to the installation practice and applicable safety regulations. Ensure the terminal is mounted on a clean, stable surface and that screw tightness and conductor seating provide a firm electrical contact. Observe the rated wire cross section and temperature limitations when selecting wiring and installation location.

Recommendations

Use this porcelain terminal where ceramic insulation and moderate heat resistance are required; avoid exposure to temperatures or environments beyond the specified low-voltage temperature range and follow local electrical codes for installation and conductor sizing.
