Elektrické puzdro Rittal 9508.050 — polyester/polyetylén, IP66, 130×57×94 mm

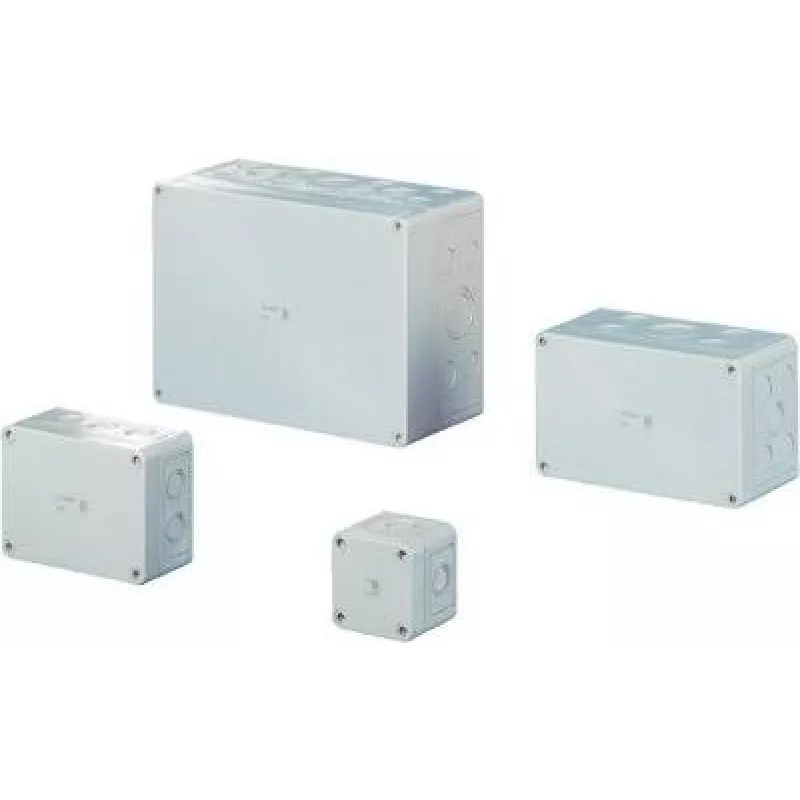

Rittal 9508.050 is a compact electrical enclosure made from polyester with polyethylene components and a fibre-glass reinforced polycarbonate housing and grey cover. The enclosure provides an IP66 rating and external dimensions of 130 × 57 × 94 mm, offering protection against dust ingress and powerful water jets. It is intended to house small electrical components, terminal blocks or control modules in indoor and outdoor environments where a corrosion-resistant, sealed enclosure is required.

Advantages

The combination of polyester, polyethylene and a fibre-glass reinforced polycarbonate housing delivers mechanical stability with chemical and corrosion resistance. The IP66 sealing ensures reliable protection against dust and strong water jets, making the enclosure suitable for harsh environments. Metric knockouts on the housing simplify cable entry and adaptation for mounting conduits or glands. Its small footprint allows installation in compact assemblies or on equipment panels where space is limited.

Suitable for

• Housing small control modules, relay sockets or terminal blocks
• Protecting electronic components in indoor and outdoor installations
• Applications requiring IP66-rated protection against dust and water
• Environments where corrosion-resistant materials are needed

Key specifications

• Material: polyester body with polyethylene components and fibre-glass reinforced polycarbonate housing and cover
• Protection rating: IP66
• External dimensions (W × H × D): 130 × 57 × 94 mm
• Colour: grey cover
• Cable entry: metric knockouts

How to use

Open the enclosure by removing the cover to place components, terminal blocks or wiring inside. Use the metric knockouts to create cable entries appropriate for cable glands or conduits, and ensure gasket surfaces are free of debris before reassembling the cover to maintain the IP66 seal. Secure the enclosure to a surface or panel using appropriate fasteners compatible with the housing material and mounting requirements. Follow applicable wiring and safety standards when connecting electrical devices.

Recommendations

For best performance, install the enclosure on a stable surface away from sources of excessive heat or direct mechanical impact. Select cable glands that match the knockout sizes and maintain the integrity of the gasket to preserve IP66 protection. Regularly inspect the enclosure for physical damage or degraded seals in long-term outdoor installations.
