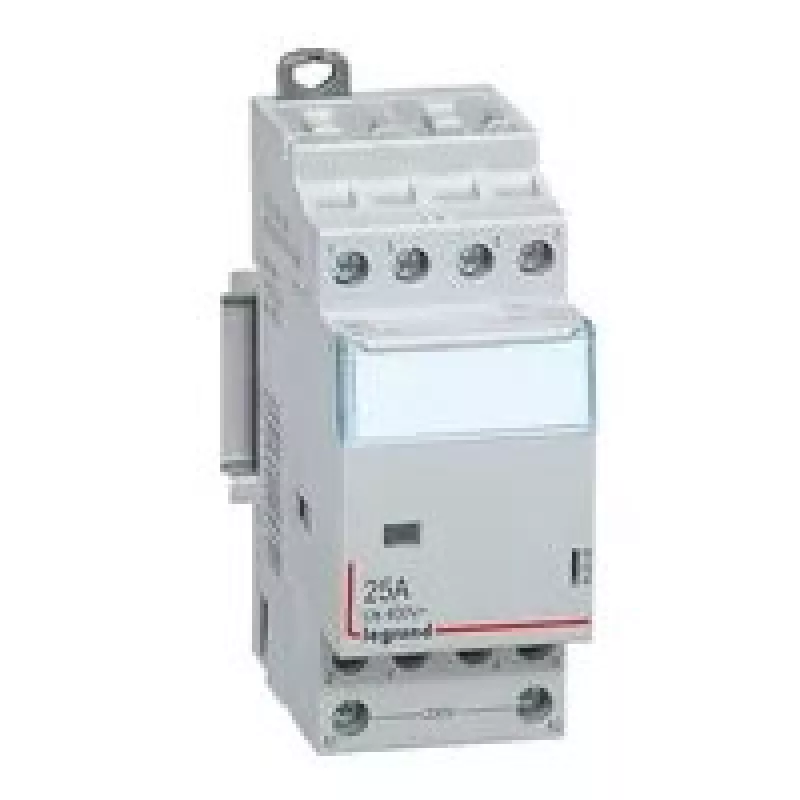

Elektrické relé Legrand 412535, viacfarebné, 226 g

Legrand 412535 electrical relay in a multicolour finish is a compact switching component intended for use in control panels and automation equipment. Weighing 226 g, this relay is designed for mounting and integration into electrical circuits where dependable switching of loads or signals is required. The product is suitable for installations that need a space-efficient relay with clear visual identification through its multicolour appearance.

Advantages

The relay offers compact dimensions and modest weight, making it easy to install in confined electrical cabinets and control enclosures. Its multicolour finish provides immediate visual recognition, which can simplify wiring identification and maintenance. Built for general switching tasks, the relay supports reliable operation in control systems and automation environments.

Suitable for

Key specifications

How to use

Mount the relay according to the electrical panel layout, ensuring terminals are properly connected to the control and load circuits. Verify that the relay is compatible with the supply voltage and the switching current of the circuit before energizing. After wiring, perform functional tests to confirm correct switching behaviour and secure any fastening to prevent vibration-related loosening.

Recommendations

Use appropriate protection devices such as fuses or circuit breakers sized for the controlled load, and follow local electrical codes. For long-term reliability, avoid exposing the relay to excessive heat, moisture, or corrosive environments and ensure connections remain tight during periodic inspections.

Keywords: Legrand relay, electrical relay, multicolour relay, control relay, panel relay, 226 g relay
