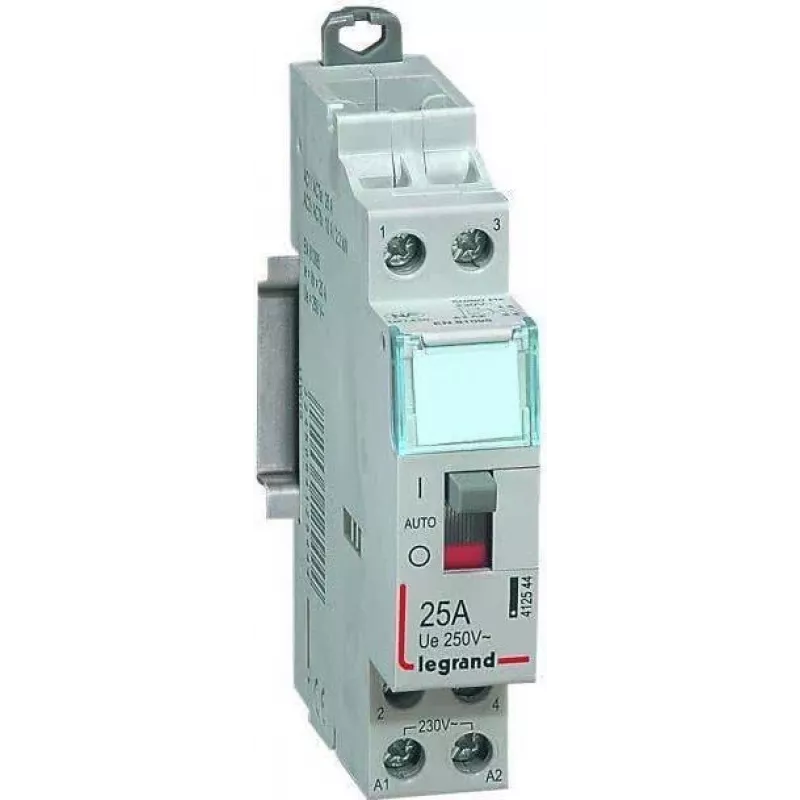

Elektrické relé Legrand 412544 — viacfarebné, 125 g

Legrand 412544 is a compact electrical relay in a multicolour finish, weighing approximately 125 g. Designed for electrical switching tasks where a small footprint and low weight are important, this relay is intended for integration into control panels, lighting circuits and general-purpose switching in residential and commercial installations. The unit provides a practical solution when space is limited and straightforward switching capability is required.

Advantages

The relay offers a compact design with a small physical profile and low mass, which simplifies installation in crowded cabinets and fixtures. Its multicolour finish aids visual identification during wiring and maintenance. The component is manufactured by a recognized brand, ensuring consistent build quality and compatibility with common control and lighting systems. Because it is lightweight, handling and mounting are easier during installation.

Suitable for

Key specifications

How to use

Install the relay according to local electrical codes and the system wiring diagram. Ensure power is disconnected before mounting or connecting the relay. Position the unit within the control panel or fixture so that terminals are accessible for secure wiring connections. Make appropriate wire terminations and tighten connectors to the specified torque values of the installation. After wiring, restore power and verify correct switching operation with suitable testing equipment.

Recommendations

Use the relay within its rated electrical parameters and environment; avoid exposure to moisture, excessive dust or heat. Match the relay to compatible control equipment and verify terminal markings before connection. Periodically inspect connections and the relay body for signs of wear or damage and replace if any abnormalities are found.
