ELEKTROKABEL elektrický kábel plochý YDYp 450/750V 3x2,5mm² elektrický kábel 100m

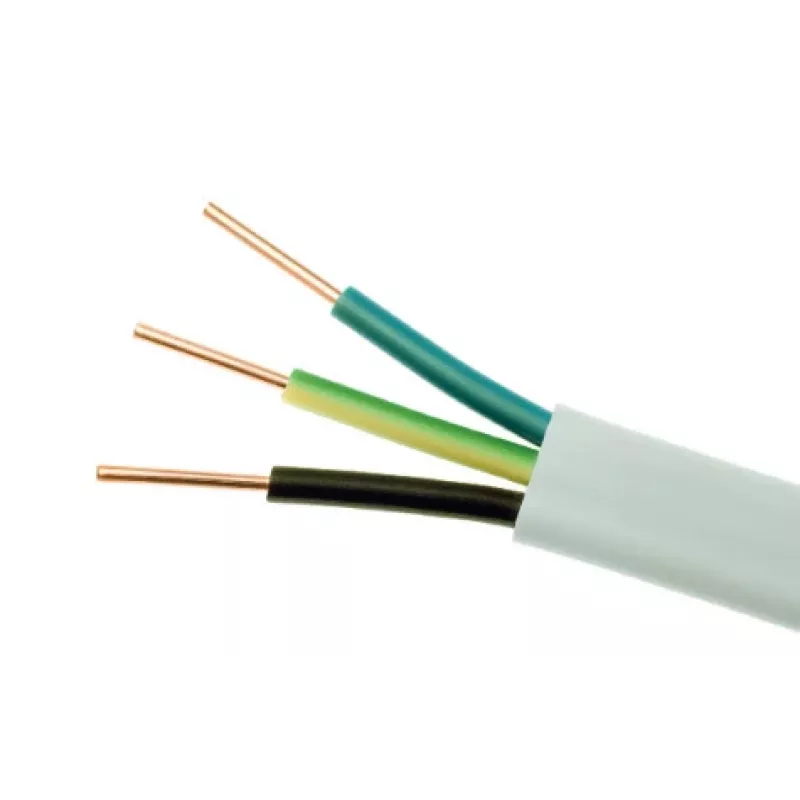

This ELEKTROKABEL YDYp flat electrical wire is designed for fixed installation in dry and damp environments. With 3 solid copper conductors of 2.5 mm² each, it is suitable for surface or recessed mounting. The PVC insulation and sheath provide durability and flame retardancy. Rated voltage 450/750V, length 100m.

Advantages

Flat design saves space; solid copper conductors ensure reliable conductivity; flame retardant for safety; suitable for various indoor applications.

Suitable for

• Fixed electrical installations in buildings
• Surface or recessed wiring
• Dry and damp environments

Key specifications

• Cable type: YDYp
• Conductor material: Copper (solid)
• Number of conductors: 3
• Cross-section: 2.5 mm²
• Rated voltage: 450/750 V
• Insulation: PVC
• Outer sheath: PVC
• Sheath colour: White
• Cable shape: Flat
• Length: 100 m
• Operating temperature: -30°C to +70°C
• Flame retardant according to IEC 60332-1-2
• Standard: PN-EN 50525-2-31

Recommendations

Ensure compliance with local electrical regulations. Suitable for indoor use only. Not for outdoor or direct burial.
