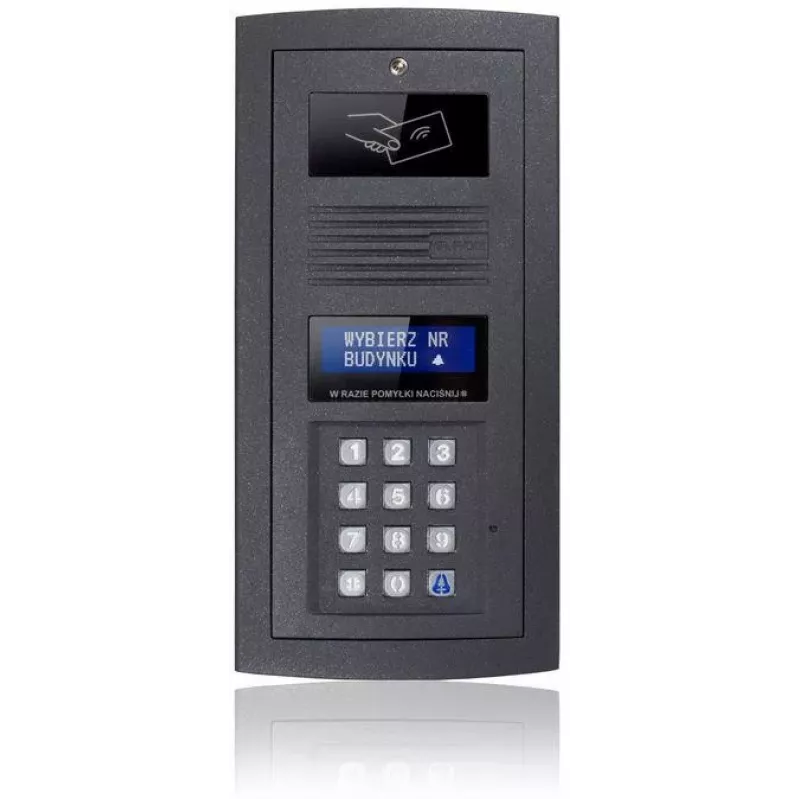

ELFON OPTIMA OP-MA765R-G RFID Graphite modul

The ELFON OPTIMA OP-MA765R-G is a high-performance dual-frequency RFID module designed for secure access control and identification systems. Featuring both low-frequency (125 kHz) and high-frequency (13.56 MHz) operation, it supports a wide range of card technologies including EM4100/EM4102, MIFARE Classic, MIFARE DESFire, and MIFARE Plus. The module offers selectable output interfaces (Wiegand 26/34-bit, RS232, RS485) and is housed in a durable ABS plastic enclosure with an IP65 rating, making it suitable for indoor and outdoor use. Its compact surface-mount design and integrated planar antenna ensure easy installation and reliable read ranges up to 8 cm.

Advantages

Dual-frequency support ensures compatibility with legacy and modern RFID cards. The multi-color LED and integrated buzzer provide clear visual and audio feedback for user interaction. With a wide input voltage range (9-16V DC) and low power consumption (max 80 mA), it is energy-efficient and versatile for various installations. Firmware upgradability allows for future enhancements.

Suitable for

• Access control systems for offices, buildings, and secure areas
• Time and attendance tracking
• Parking management
• Identification and authentication in industrial environments

Key specifications

• Operating Frequencies: 125 kHz (LF) and 13.56 MHz (HF)
• Supported Card Types: EM4100/EM4102, MIFARE Classic (1K/4K), MIFARE DESFire, MIFARE Plus, ISO/IEC 14443 Type A
• Reading Range: Up to 5-8 cm (depending on card type and environment)
• Output Interface: Wiegand 26-bit, Wiegand 34-bit, RS232, RS485 (selectable)
• Power Supply: 9-16V DC
• Current Consumption: Max. 80 mA
• Housing Material: ABS Plastic
• Color: Graphite
• Operating Temperature: -20°C to +60°C
• Ingress Protection: IP65
• LED Indicator: Multi-color (Red/Green/Blue)
• Buzzer: Integrated
• Mounting Type: Surface Mount
• Cable Length: 0.5 meters (integrated)
• Antenna: Integrated planar
• Firmware Upgradable: Yes
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with compatible RFID cards and ensure proper mounting on a non-metallic surface. The module is ideal for new installations or upgrading existing systems to dual-frequency capability.
