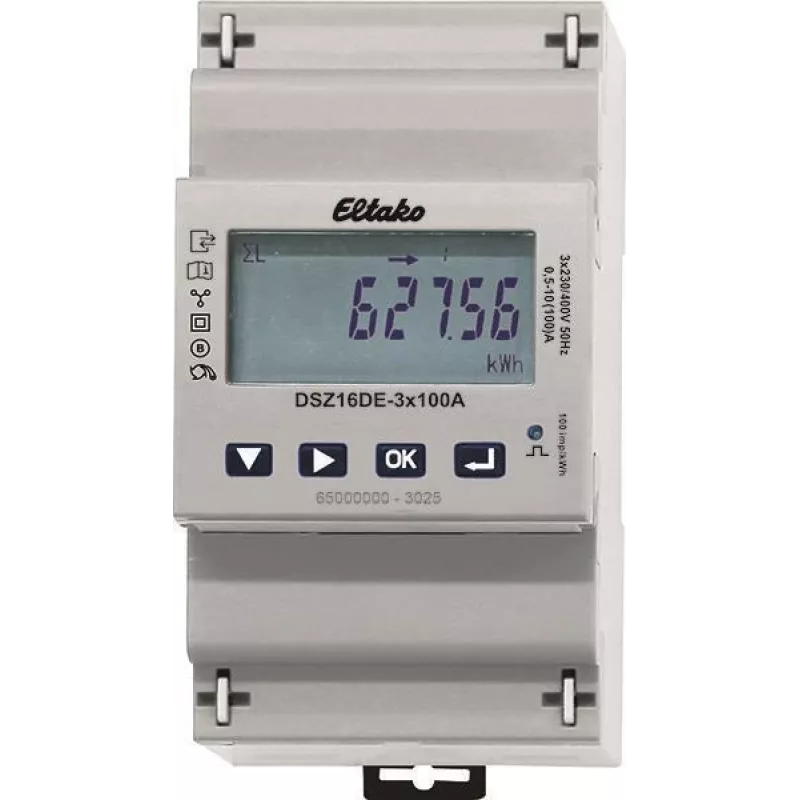

Eltako DSZ16DE-3x100A trojfázový elektromer, priame meranie, neciachovaný, 100 A

In a busy commercial building, the facility manager needs to track electricity consumption across three-phase circuits without the complexity of MID-calibrated meters. The Eltako DSZ16DE-3x100A is a direct-measuring three-phase energy meter that installs on a DIN rail and provides clear LCD readings of active energy (kWh). With a maximum current of 100 A and a nominal voltage of 3x230/400 V AC, it handles typical sub-metering tasks in distribution boards, workshops, and server rooms. The S0 pulse output enables remote data logging, while the backlit display ensures readability even in dim electrical cabinets.

Key specifications

• Meter type: Three-phase energy meter, direct measurement
• Maximum current (Imax): 100 A
• Nominal current (In): 10 A
• Nominal voltage: 3x230/400 V AC, 50/60 Hz
• Accuracy class: B (active energy), uncalibrated (not MID-compliant)
• Display: LCD with backlight, 7 digits (6+1 for kWh)
• Pulse output: S0 interface, 1000 impulses per kWh
• Mounting: DIN rail, 4 modules wide
• Self-consumption: < 0.5 W / < 8 VA per phase
• Operating temperature: -25°C to +55°C
• Protection class: IP20
• Wiring: 4-wire connection, single tariff

Why choose it

This meter offers a cost-effective solution for energy monitoring in three-phase installations where legal calibration is not required. Its direct measurement capability up to 100 A eliminates the need for external current transformers, simplifying installation. The S0 pulse output integrates easily with building management systems or data loggers, and the backlit display provides at-a-glance consumption data.

Ideal use cases

• Sub-metering in commercial and industrial buildings
• Monitoring energy consumption of individual machines or departments
• Integration into energy management systems via S0 pulses
• Retrofit projects where a simple, reliable kWh meter is needed

Good to know

The DSZ16DE-3x100A is uncalibrated, meaning it is not intended for billing purposes subject to legal metrology. It is designed for internal energy monitoring and cost allocation. Installation requires a 4-module DIN rail space and standard three-phase wiring. The meter operates on a single tariff and does not support multi-tariff functions.
