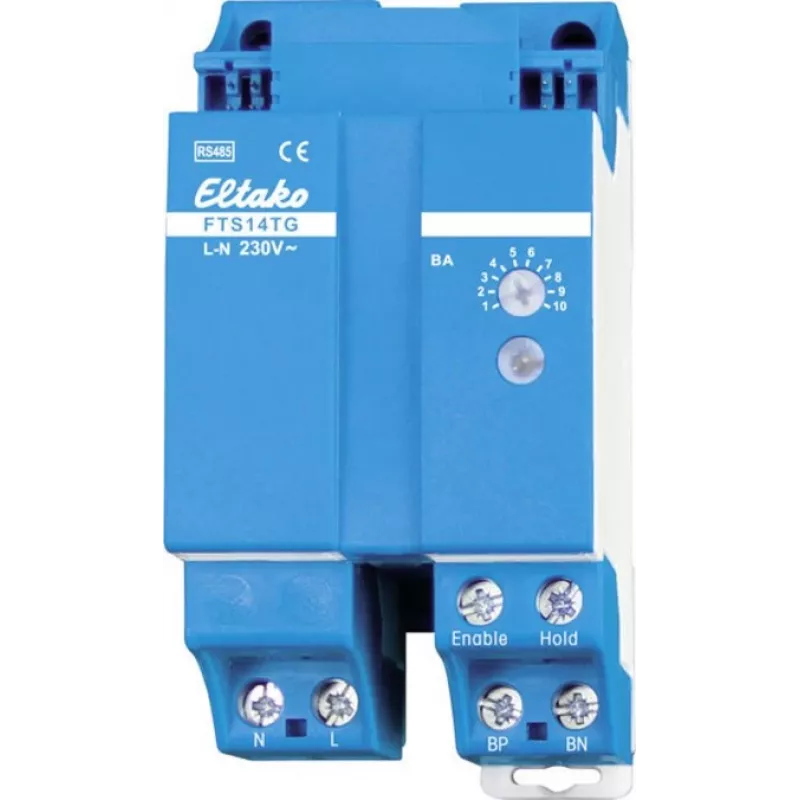

ELTAKO FTS14TG tlačidlový gateway pre FTS14 systémy (30014061)

The ELTAKO FTS14TG Pushbutton Gateway bridges conventional pushbuttons into the EnOcean-based FTS14 wireless ecosystem, turning simple potential-free contacts into intelligent wireless commands. Unlike standalone EnOcean switches, this DIN-rail module integrates directly into the Eltako RS485 bus, offering four independent inputs that can be configured as universal, direction, dimmer, shutter, or scene pushbuttons via the PCT14 software. Its 1 TE (18 mm) width makes it one of the most compact gateways in its class, ideal for retrofits where space is tight and existing wiring must be reused.

Highlights

• Four potential-free inputs for conventional pushbuttons or switches
• EnOcean wireless transmission at 868.3 MHz, compatible with all FTS14 receivers
• Powered directly from the Eltako RS485 bus (12 V DC, max. 20 mA) – no separate power supply needed
• Flexible function assignment: universal, direction, dimmer, shutter, and scene control
• Ultra-compact DIN-rail housing: only 1 TE (18 mm) wide
• Easy configuration with Eltako PCT14 software

In daily use

Install the FTS14TG next to your existing pushbuttons, connect the wires to the screw terminals, and connect the module to the RS485 bus. After a quick setup in PCT14, each input can trigger any FTS14 actuator – from lighting scenes to shutter control. The gateway transmits wireless telegrams with up to 10 mW power, ensuring reliable coverage in residential and commercial buildings. Since it draws power from the bus, installation is clean and maintenance-free. The IP20 thermoplastic housing is designed for distribution boards and dry indoor environments.

Full specifications

• Brand: ELTAKO
• Model: FTS14TG
• MPN: 30014061
• EAN: 4010312315088
• Product type: Pushbutton Gateway
• System compatibility: Eltako FTS14, EnOcean
• Number of inputs: 4
• Input type: Potential-free contacts
• Wireless standard: EnOcean
• Wireless frequency: 868.3 MHz
• Wireless transmit power: max. 10 mW
• Power supply: 12 V DC via RS485 bus
• Current consumption: max. 20 mA
• Bus connection: Eltako RS485 bus
• Mounting type: DIN rail (REG)
• Module width: 1 TE (18 mm)
• Configuration: Eltako PCT14 software
• Supported functions: Universal, direction, dimmer, shutter, scene pushbutton
• Operating temperature: -20°C to +50°C
• Protection class: IP20
• Housing material: Thermoplastic

Final note

The FTS14TG is the missing link for integrating existing pushbuttons into modern EnOcean smart home systems – compact, bus-powered, and endlessly configurable.
