Embedded Cellular Raspberry 5G Redcap Pi HAT — TELTONIKA CALYX (EBD070000000)

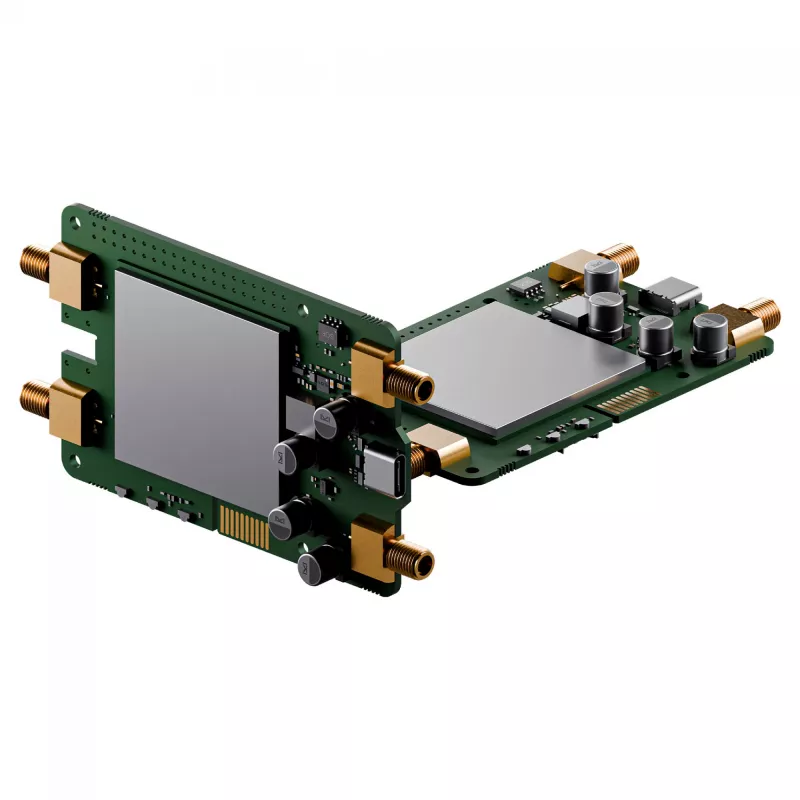

TELTONIKA CALYX Embedded Cellular Raspberry 5G Redcap Pi HAT is a compact hardware add-on that adds 5G RedCap cellular connectivity to Raspberry Pi single-board computers. Designed in the Pi HAT form factor, the module provides a standardized mechanical and electrical interface for integrating mobile network access into embedded and edge applications. The HAT enables data transfer, remote access and network-based telemetry while maintaining a small footprint suitable for constrained installations.

Advantages

The Pi HAT form factor ensures simple physical integration with Raspberry Pi models that support HATs, while the embedded 5G RedCap radio provides lower-latency, higher-bandwidth cellular connectivity compared to legacy 4G modules. The design focuses on compactness and power efficiency for continuous operation in remote or industrial environments. Built to work with mobile networks, the module supports reliable external connectivity for applications that require real-time data exchange and remote management.

Suitable for

• IoT gateway and telemetry devices requiring cellular backhaul
• Industrial monitoring and remote sensing on Raspberry Pi platforms
• Edge computing projects that need mobile network connectivity
• Prototyping and development of cellular-enabled applications on Raspberry Pi

Key specifications

• Form factor: Raspberry Pi HAT-compatible add-on
• Cellular technology: 5G RedCap capable radio
• Interfaces: HAT pins for power and data integration with Raspberry Pi
• Intended use: embedded cellular connectivity for data, telemetry and remote access

How to use

Install the TELTONIKA CALYX Pi HAT directly onto the Raspberry Pi 40-pin header following standard HAT mounting procedures and secure it with the retaining hardware if provided. Configure the operating system on the Raspberry Pi to enable the HAT interface and install any required drivers or configuration utilities supplied by the manufacturer. Provision SIM and network settings according to your mobile operator’s requirements, then verify connectivity with network diagnostic tools and basic data transfer tests.

Recommendations

Place the assembled unit in a location with adequate cellular signal and ensure proper antenna placement if external antennas are used. Monitor power consumption and thermal conditions during initial deployment and follow any installation guidelines from TELTONIKA for antenna routing, grounding and regulatory compliance.
