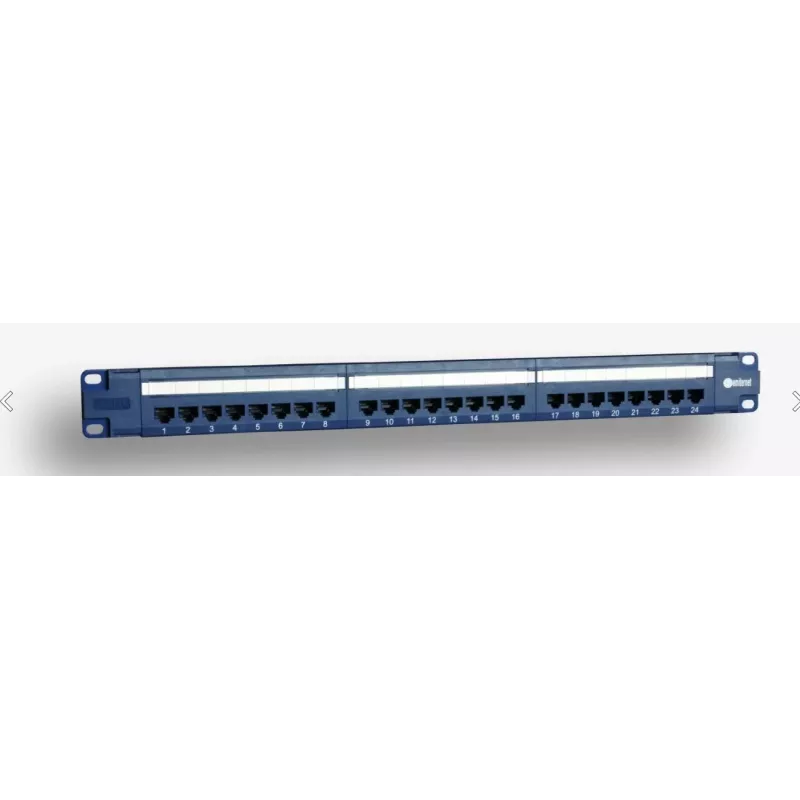

EMITERNET 19" 24-portový Cat.6 UTP patch panel so správou káblov, modrý, PoE

Managing high-density network connections in a 19" rack can quickly become a mess of tangled cables and unreliable links. The EMITERNET 24-port Cat.6 UTP patch panel solves this by providing a clean, organized termination point for your horizontal cabling, complete with an integrated cable management shelf to keep everything neat and accessible.

Who is it for

This patch panel is ideal for network administrators, IT installers, and data center technicians who need a dependable, rack-mountable solution for terminating up to 24 Cat.6 UTP cable runs. It suits small to medium business networks, server rooms, and structured cabling systems where PoE devices like IP cameras, wireless access points, and VoIP phones are deployed.

Main features

• 24 RJ45 ports in a compact 1U 19-inch rack-mount form factor
• Supports Cat.6 UTP cable for Gigabit Ethernet and beyond
• PoE compatible – safely passes power to connected devices
• Integrated cable management shelf keeps patch cords organized
• Color-coded T568A/T568B wiring diagram for easy termination
• Gold-plated contacts ensure reliable, corrosion-resistant connections
• Durable steel housing with a blue finish for easy identification

Specifications

• Product type: Patch panel
• Rack size: 19-inch
• Rack units: 1U
• Number of ports: 24
• Connector type: RJ45
• Cable type compatibility: UTP (Unshielded Twisted Pair)
• Category rating: Cat.6
• PoE support: Yes
• Color: Blue
• Features: Integrated cable management shelf
• Mounting type: Rack-mountable
• Termination type: IDC (Insulation Displacement Connector)
• Wiring scheme: T568A/T568B (color-coded)
• Housing material: Steel
• Contact plating: 50 micro-inch gold-plated
• Standard compliance: ANSI/TIA/EIA-568-C.2
• Application: Ethernet, LAN, data centers
• Shielding: Unshielded

Tips

For best performance, use solid-core Cat.6 UTP cable and maintain proper bend radius. Terminate cables using a 110-style punch-down tool, following the color-coded label for either T568A or T568B. Keep the integrated shelf clear of excess cable slack to ensure optimal airflow in the rack.
