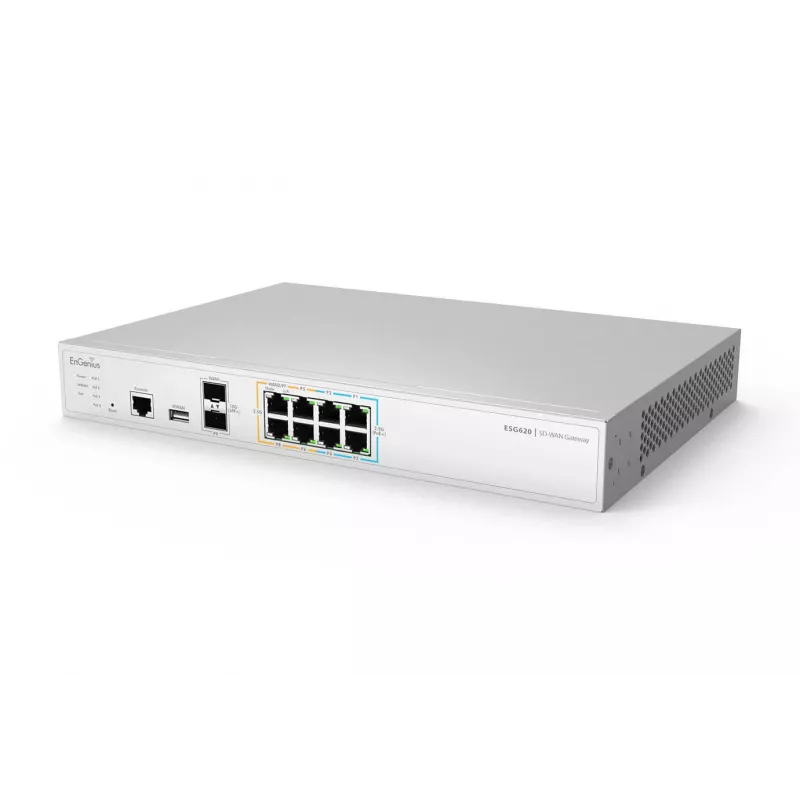

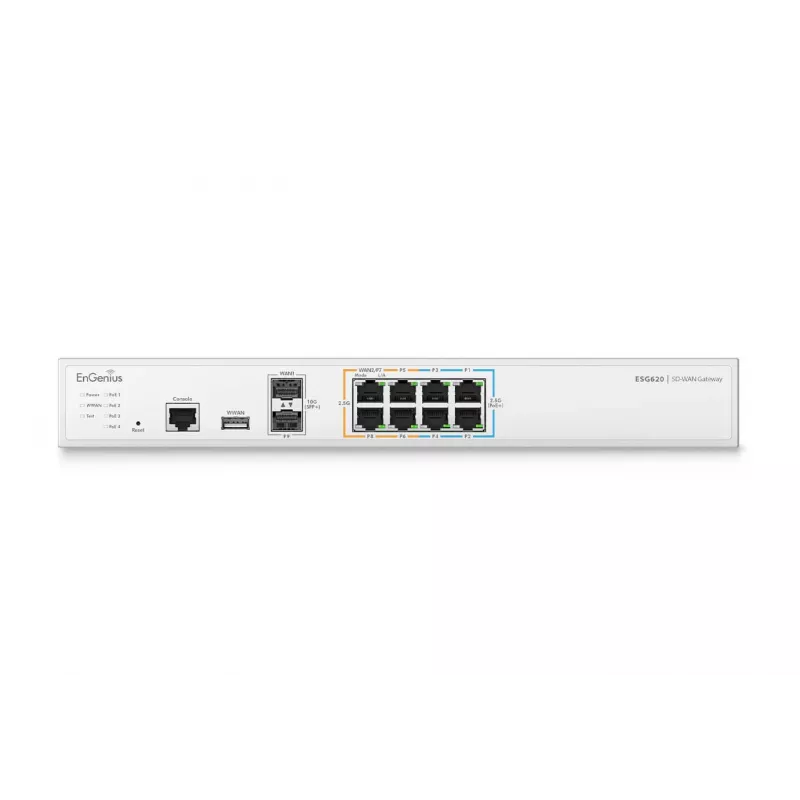

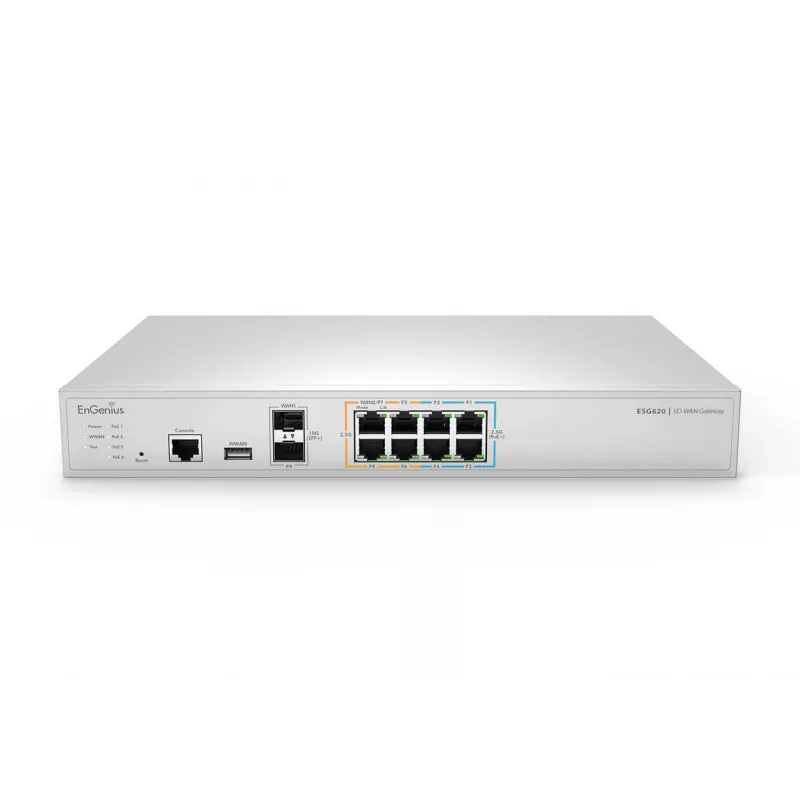

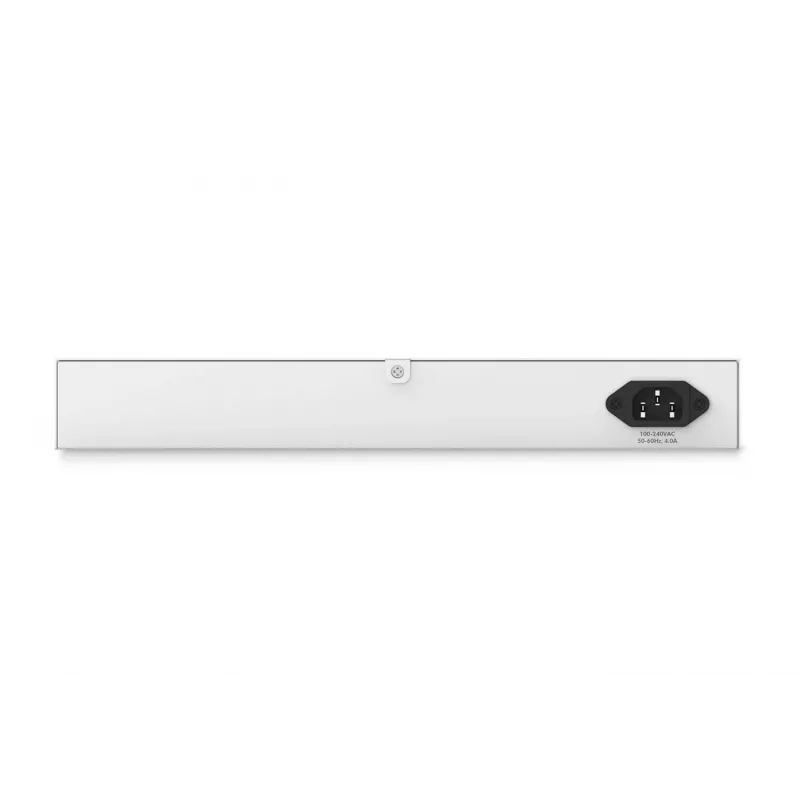

EnGenius Cloud Managed Security Gateway 2 x 2,5 GbE LAN & 6 x 2,5 GbE WAN & 2 SFP+ porty

EnGenius Gateway6 8mG 2SFP+ (ESG620) is a compact SD-WAN gateway designed for business networks. It integrates a 2200 MHz CPU and 8192 MB of internal memory to deliver stable routing and security performance, with Ethernet LAN data rates up to 2500 Mbit/s. The device supports dual-WAN, load balancing and site-to-site VPNs, and can be centrally managed via EnGenius Cloud for remote configuration and monitoring.

Advantages

The gateway provides high firewall throughput and hardware resources suitable for demanding network tasks, including a firewall throughput of up to 7700 Mbit/s and SSL VPN throughput up to 1.5 Gbit/s. It supports modern security algorithms such as AES and MD5, and includes two SFP+ ports for flexible fiber uplink options. Centralized management through EnGenius Cloud simplifies deployment and ongoing maintenance across multiple sites.

Suitable for

• Small and medium-sized businesses requiring secure SD-WAN connectivity
• Multi-site deployments with site-to-site VPN needs
• Environments needing dual-WAN and load balancing for uptime
• Networks that use fiber uplinks via SFP+ ports

Key specifications

• Model: EnGenius Gateway6 8mG 2SFP+ (ESG620)
• Processor: 2200 MHz
• Internal memory: 8192 MB
• Ethernet LAN data rate: 2500 Mbit/s
• Firewall throughput: 7700 Mbit/s
• SSL VPN throughput: 1.5 Gbit/s
• Security algorithms: AES, MD5
• Colour: White
• Management: EnGenius Cloud

How to use

Connect the gateway to your internet uplinks using the WAN ports and, if required, install fiber modules in the SFP+ slots for fiber connections. Access the device via EnGenius Cloud for initial setup, configure WAN settings, load balancing and VPN profiles, and apply security policies. Monitor performance and logs from the cloud portal and update firmware as recommended to maintain security and stability.

Recommendations

For optimal performance in multi-site environments, enable load balancing across both WAN interfaces and use the SFP+ uplinks for high-bandwidth fiber connections. Regularly monitor SSL VPN and firewall loads in EnGenius Cloud and schedule firmware updates during maintenance windows to avoid service disruption.
