Equip 32 palcov-65 palcov stropný držiak pre štyri obrazovky

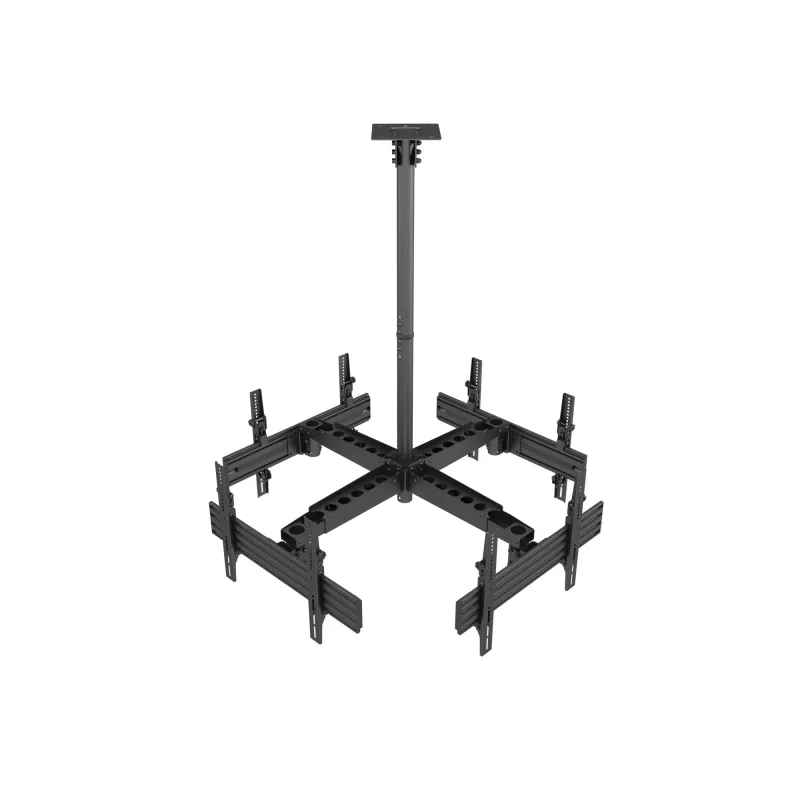

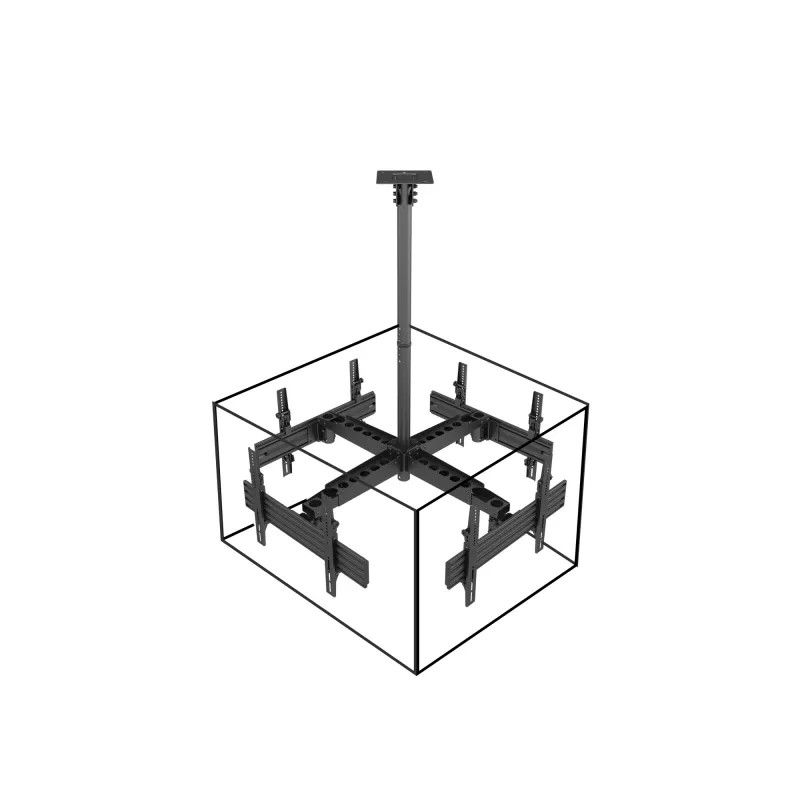

The Equip Ceiling Mount Quad Screen TV Bracket (model 650372) is an industrial-grade four-screen ceiling mount designed for signage and multi-display installations. It supports screens from 32" to 65" and a combined maximum weight capacity of 120 kg, offering a stable solution for public areas, offices, or commercial spaces that require multiple aligned displays.

Advantages

The mount provides an adjustable tilt range of 0–15° to allow precise and even angling of all four screens, helping to achieve a uniform viewing plane. It supports VESA patterns from 100 x 100 mm up to 600 x 400 mm, accommodates screens up to 65" and has a robust 26 kg product weight for stable installation. The black finish offers a discreet, modern appearance suitable for many interiors.

Suitable for

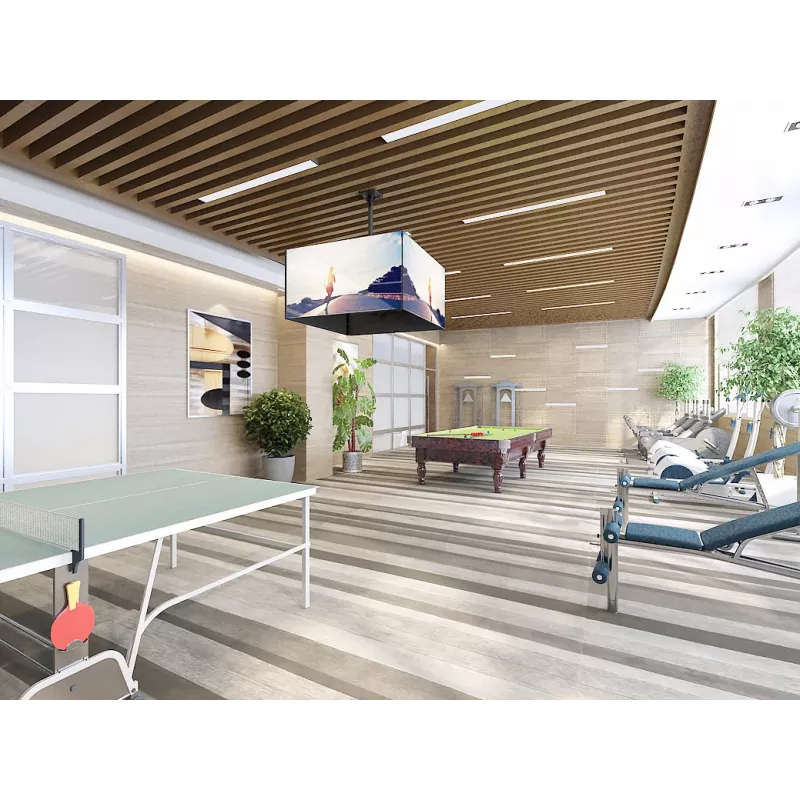

• Video walls and signage in retail or public spaces
• Multi-screen displays in control rooms or meeting areas
• Airport, station or lobby information displays
• Commercial installations requiring ceiling-mounted quad screens

Key specifications

• Supported screen size: 32"–65"
• Maximum weight capacity: 120 kg (total)
• VESA compatibility: 100 x 100 mm up to 600 x 400 mm
• Tilt range: 0–15°
• Number of displays: 4
• Product weight: 26 kg
• Colour: Black
• Brand: EQUIP, MPN: 650372, EAN: 4015867207994

How to use

Install the ceiling mount to a suitable structural ceiling point following applicable building codes and using appropriate fasteners. Attach each TV to the mount using the compatible VESA holes (100 x 100 mm to 600 x 400 mm), verify the total weight does not exceed 120 kg, and adjust each screen tilt within the 0–15° range to align all four displays evenly. Ensure all fasteners are tightened and check level and stability before final use.

Recommendations

Ensure the ceiling structure can safely carry the combined weight of the mount and screens; consult a qualified installer or structural engineer for heavy or complex installations. Use displays within the specified VESA and size ranges and periodically inspect mounting points and fasteners for wear.
