Equip 326522 patch panel

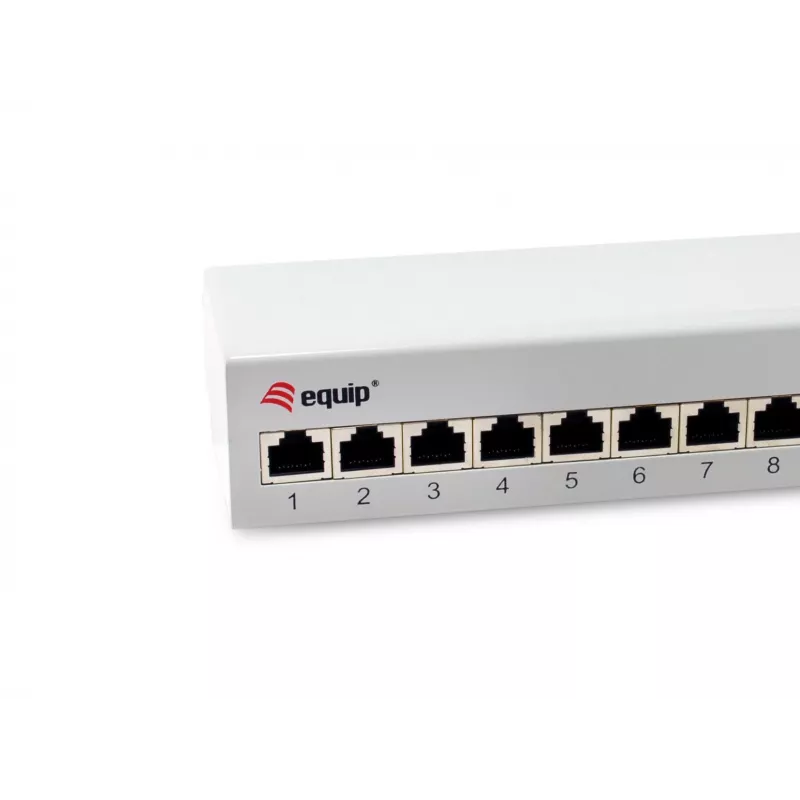

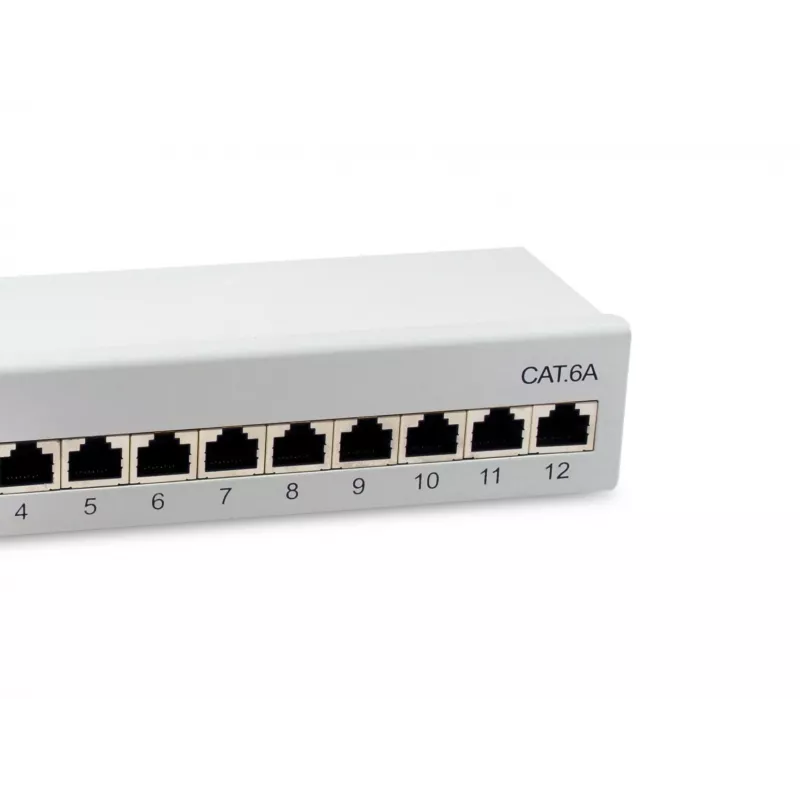

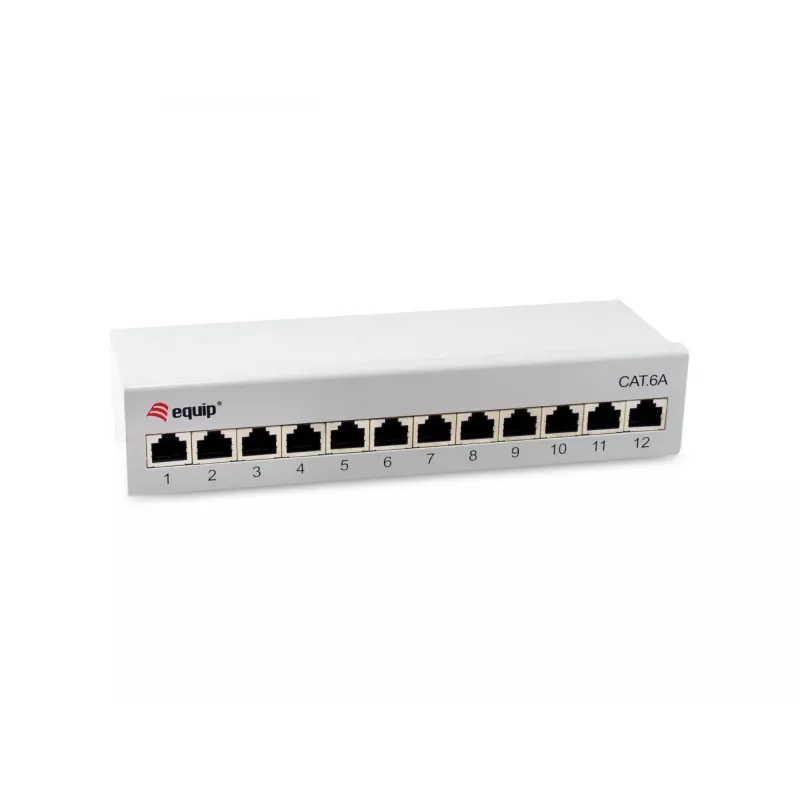

The Equip 326522 patch panel is a metal 12‑port panel designed for 10GBase‑T cabling and 10 Gigabit Ethernet networks. It supports a maximum data transfer rate of 10000 Mbit/s and is finished in grey. The panel measures 212.5 mm (width) x 109.3 mm (height) x 44.3 mm (depth), weighs 0.87 kg and is supplied packaged in a box. The Equip 326522 complies with CE and RoHS standards, providing a rack-mountable, compact option for structured cabling installations where 10G connectivity is required.

Advantages

The Equip 326522 offers a durable metal construction and a grey finish that resists wear in standard installation environments. With 12 ports and compatibility with 10GBase‑T cabling technology, it enables 10 Gigabit Ethernet connections and supports high data transfer rates up to 10000 Mbit/s. The product's compliance with CE and RoHS standards confirms conformity with applicable safety and environmental requirements. Its compact dimensions make it suitable for installations with limited rack space while maintaining a clear, labeled front for cable management.

Suitable for

• Structured cabling for small server rooms and network racks
• Office LANs requiring 10GBase‑T connections
• Patch panels replacement or expansion in existing 10 Gigabit Ethernet infrastructures
• Projects where CE and RoHS compliance is required

Key specifications

• Manufacturer: EQUIP
• Model / MPN: 326522
• EAN: 4015867237502
• Ports quantity: 12
• Supported technology: 10GBase‑T
• Maximum data transfer rate: 10000 Mbit/s
• Material: Metal
• Product colour: Grey
• Dimensions (W x H x D): 212.5 x 109.3 x 44.3 mm
• Weight: 0.87 kg
• Standards: CE, RoHS
• Packaging: Box

How to use

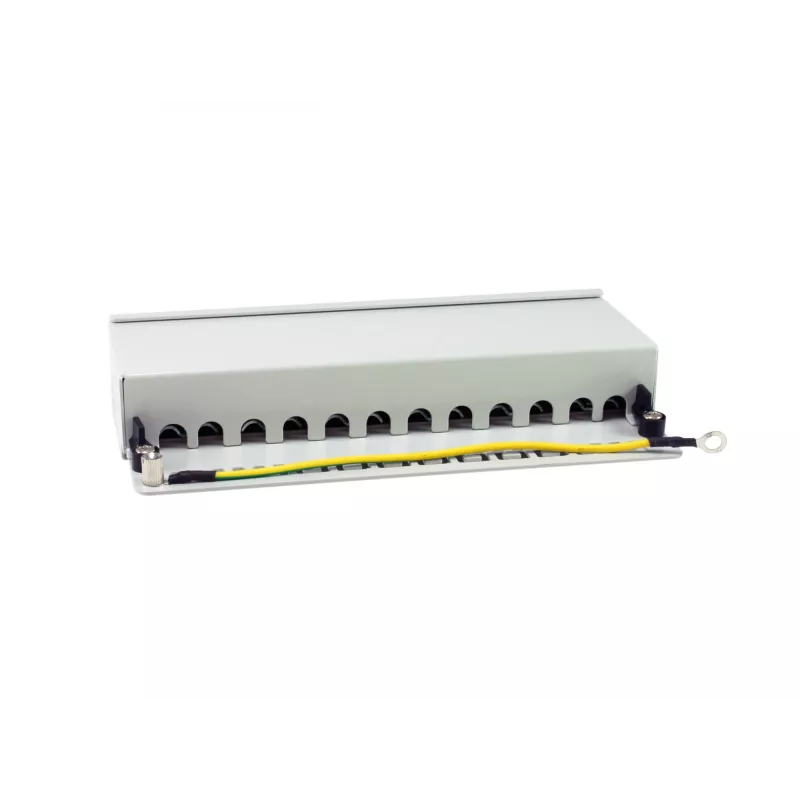

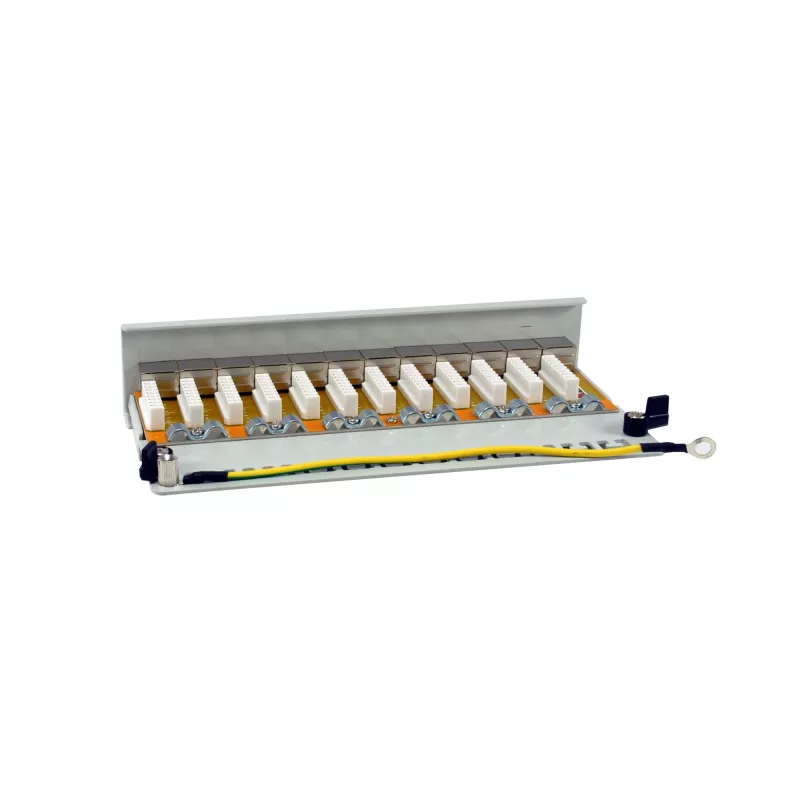

Install the Equip 326522 patch panel in a compatible rack or cabinet at the desired location, aligning mounting holes with rack rails and securing with appropriate fasteners. Terminate twisted‑pair cables to the rear of the panel according to the wiring scheme used in your network (for example T568A or T568B). Use cable management accessories to route and strain‑relieve cables. Connect patch cords from the front ports to network devices or switches supporting 10 Gigabit Ethernet. Verify link status and performance using network testing tools after installation.

Recommendations

For reliable 10GBase‑T performance, use certified Cat6A or higher cabling and quality connectors; avoid excessive cable bends and maintain proper cable management to reduce interference and ensure consistent data rates up to 10000 Mbit/s.
