Equip 650605 60-100" ultravelký teleskopický vozík pre displej LFD

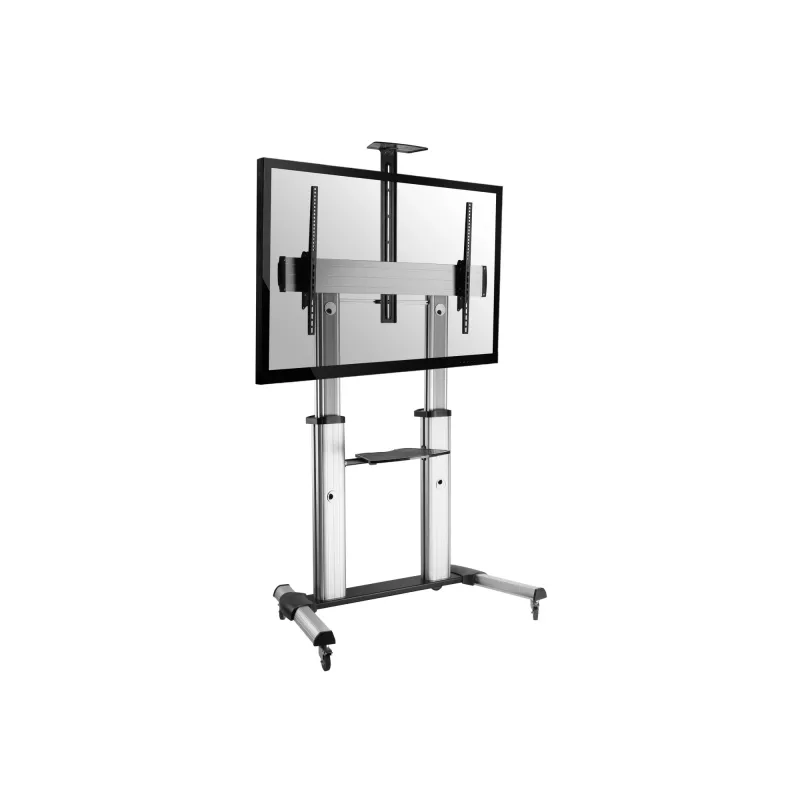

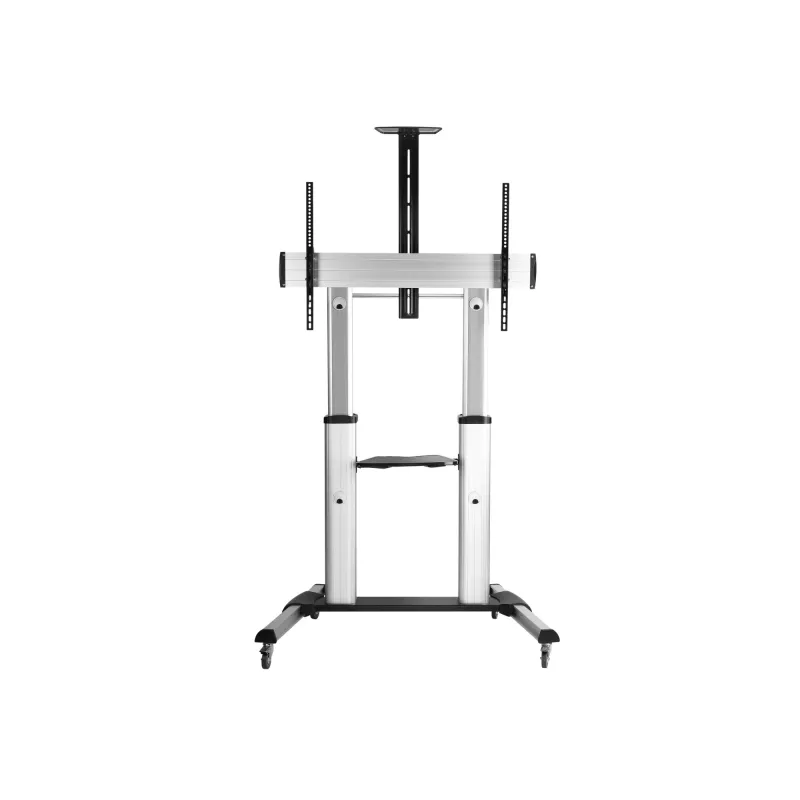

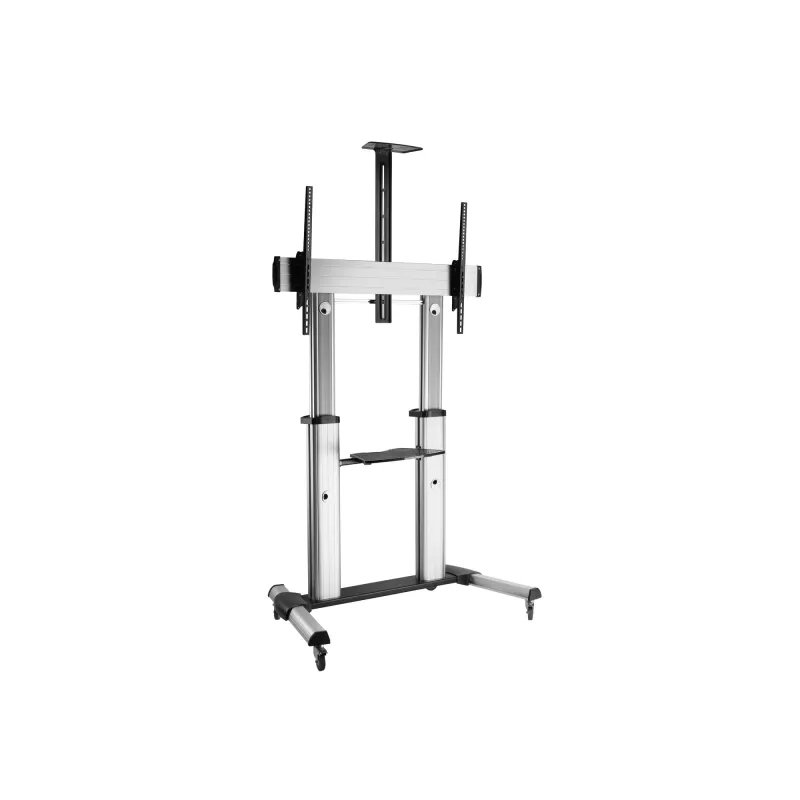

The Equip 650605 ultra-large display trolley supports one 60"–100" LED or LCD flat panel TV with a maximum load of 100 kg (220 lbs). Constructed from aluminium, the trolley includes vertical TV brackets with a tilting range of +5° to -10° for adjusting viewing angle and reducing glare. It also provides height-adjustable shelves for AV equipment and a camera shelf suitable for conference use, plus integrated cable management and locking casters for stable positioning and easy relocation.

Advantages

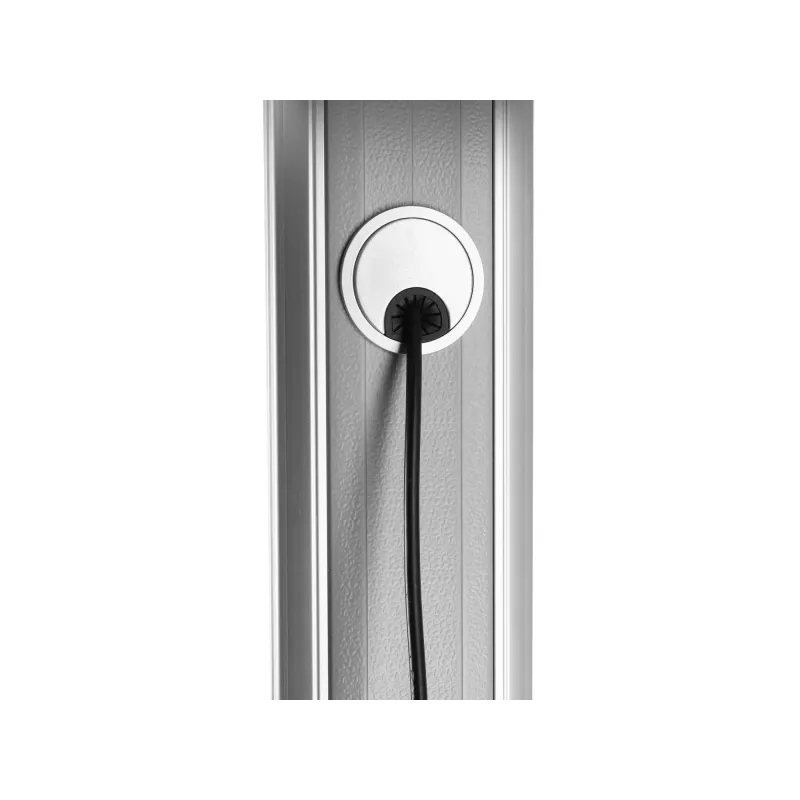

The trolley is compatible with VESA patterns from 200 x 200 mm up to 1000 x 600 mm and is rated for up to 100 kg, making it suitable for most large-format displays. Its aluminium construction balances durability and mobility, while the internal cable routing keeps cables concealed. Locking castors secure the trolley in place during presentations or meetings.

Suitable for

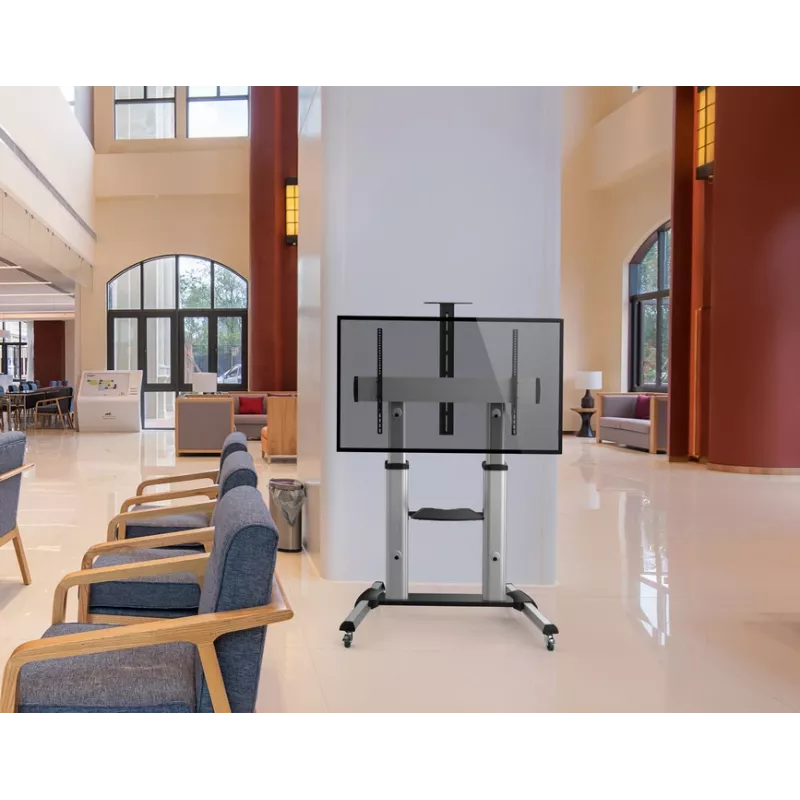

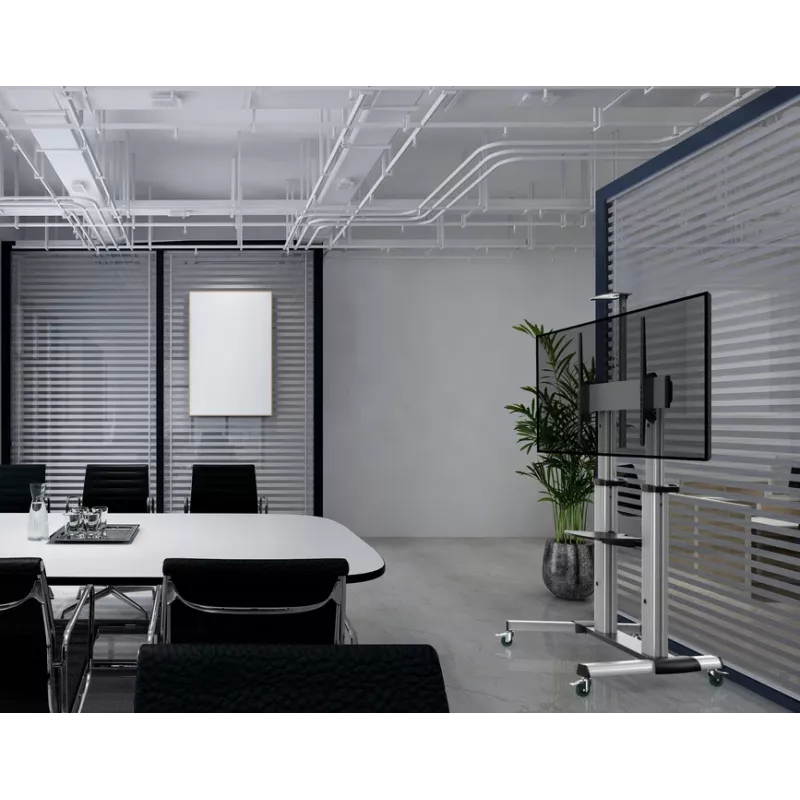

• Conference rooms and video meetings
• Public displays and digital signage
• Training sessions and classrooms
• Temporary exhibitions and trade shows

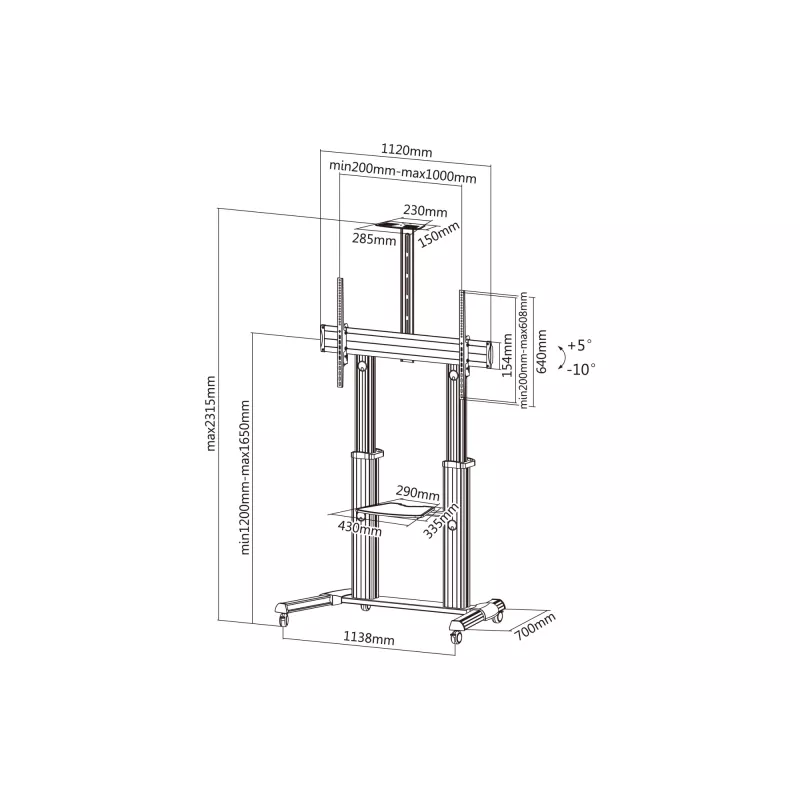

Key specifications

• Supported screen size: 60"–100"
• Maximum weight capacity: 100 kg
• VESA compatibility: 200 x 200 mm up to 1000 x 600 mm

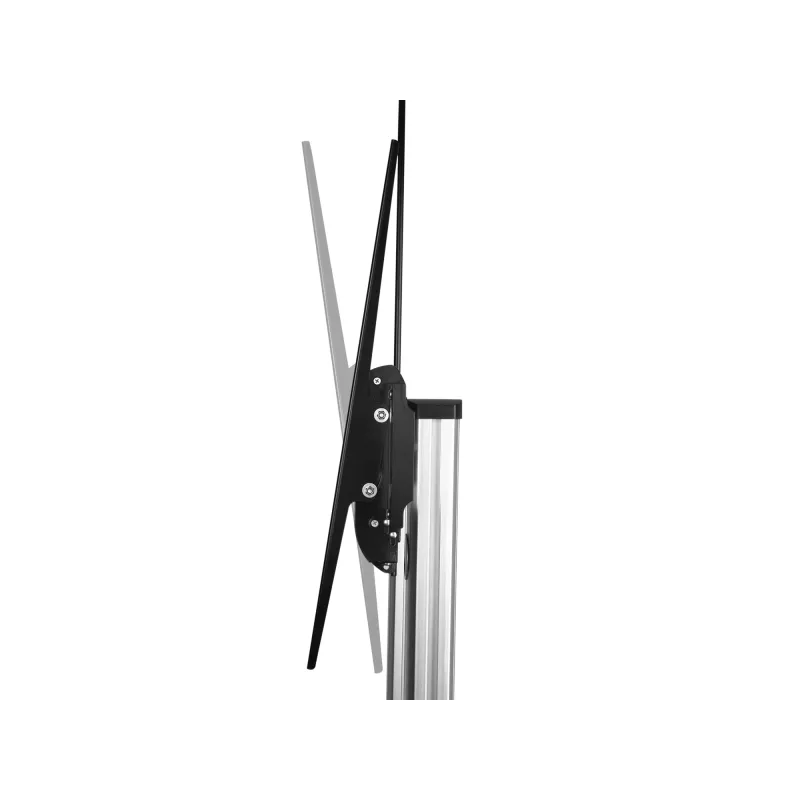

• Tilt range: +5° to -10°
• Material: Aluminium
• Product weight: 29.97 kg
• Number of displays supported: 1
• Colour: Aluminium

How to use

Place the trolley on a flat, stable surface and lock the casters before mounting the display. Attach the TV to the vertical brackets using appropriate screws matching the TV's VESA pattern within the supported range. Adjust the height and tilt to the desired viewing position. Store media players or accessories on the adjustable shelf and route cables through the internal cable management channels to keep them organized and out of sight.

Recommendations

Ensure the total weight of the display and any attached equipment does not exceed the 100 kg limit. When moving the trolley, unlock the casters and push slowly to avoid sudden shifts; lock the casters again before use. Verify that the TV's VESA pattern is within the supported range (200 x 200 to 1000 x 600 mm) and use suitable mounting hardware.
