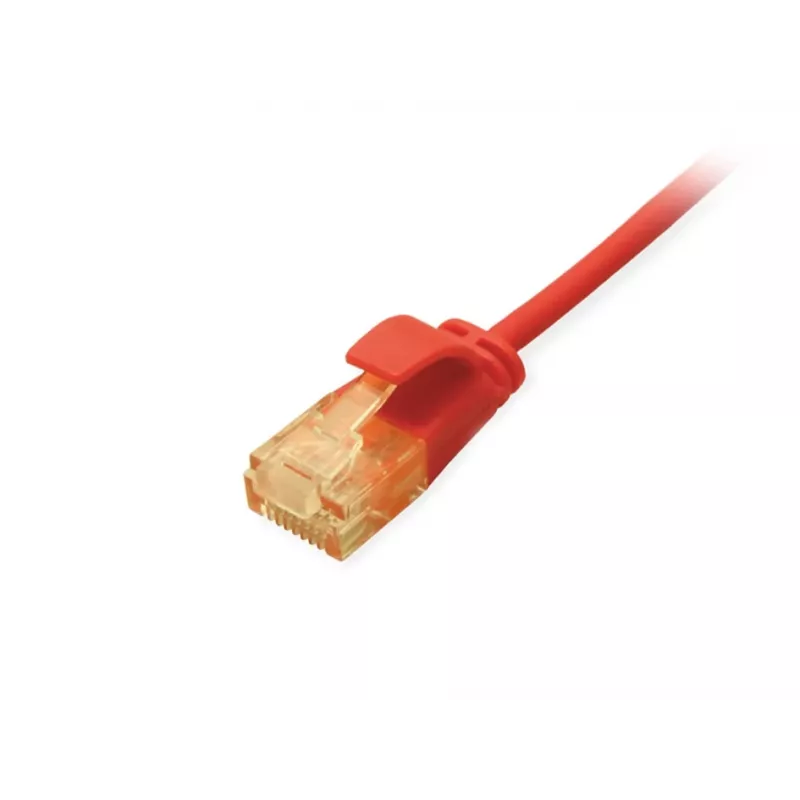

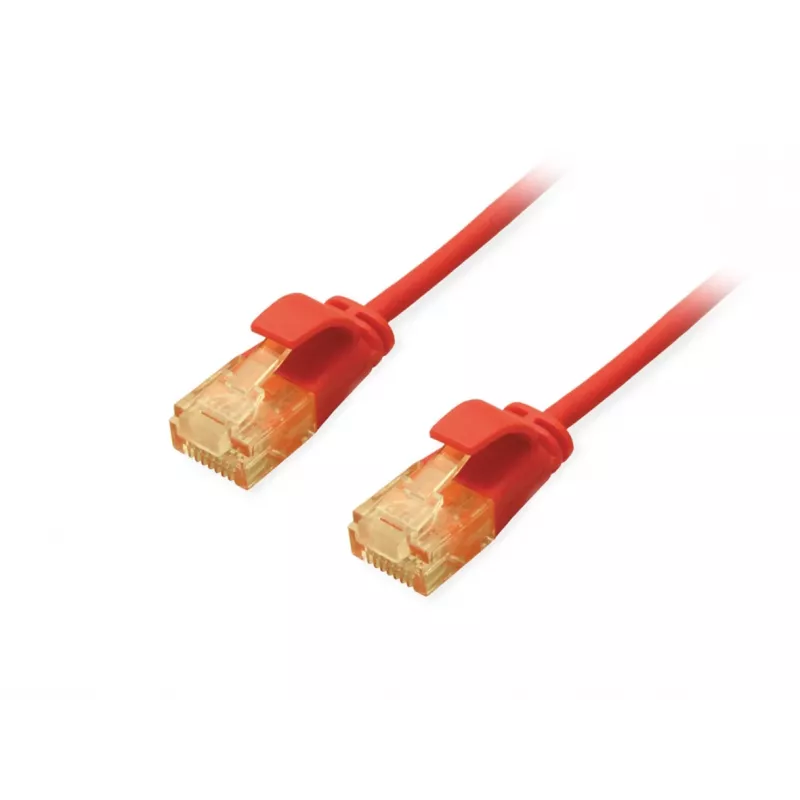

Equip Cat.6A U/UTP tenký patch kábel 0,15 m červený 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.15m in red is a slim, high-performance Ethernet patch cable designed for data centers, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and a 0.15 m length, it improves cable management and airflow in crowded racks and patch panels while supporting 10 Gigabit Ethernet and frequencies up to 500 MHz.

Advantages

This Cat.6A U/UTP slim patch cable provides reliable 10GBase-T performance with minimal crosstalk thanks to its unshielded twisted pair design and stranded bare copper conductors. The molded boots with strain relief increase durability during frequent reconfiguration, and the LSZH (Low Smoke Zero Halogen) jacket and RoHS compliance meet common safety and environmental requirements. The compact 32 AWG construction reduces space usage without affecting transmission up to 10000 Mbit/s.

Suitable for

• High-density rack and patch panel connections
• 10 Gigabit Ethernet links and high-speed uplinks
• Short patch runs between network equipment in data centers and server rooms
• Power over Ethernet (PoE) and PoE+ enabled devices

Key specifications

• Standard: Cat6a U/UTP (unshielded)
• Conductor: stranded bare copper
• Wire gauge: 32 AWG
• Bandwidth: up to 500 MHz
• Data rate: up to 10000 Mbit/s (10GBase-T)
• Length: 0.15 m
• Connectors: RJ-45 straight male – RJ-45 straight male
• Jacket: LSZH / LSOH
• Compliance: ISO/IEC 11801, EN 50173, RoHS
• Colour: Red

How to use

Connect one RJ-45 plug to the network device (switch, router or NIC) and the other RJ-45 plug to the corresponding port on the second device. The short 0.15 m length is intended for patching inside racks or between adjacent ports; avoid excessive bending at the connector boots and ensure the molded strain relief remains seated to prevent damage. No special tooling or configuration is required for standard Ethernet and PoE deployments.

Recommendations

Use this slim Cat.6A patch cable for short, high-density patching runs where space and airflow are limited. For longer runs or environments with strong electromagnetic interference, consider using shielded cabling or standard-gauge Cat6A cables appropriate for the installation.
