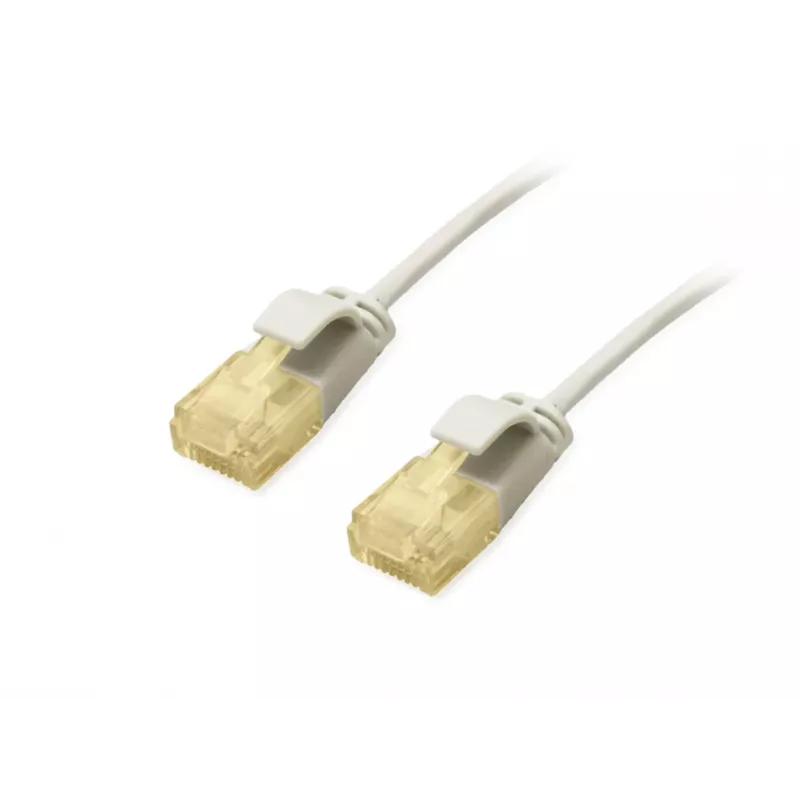

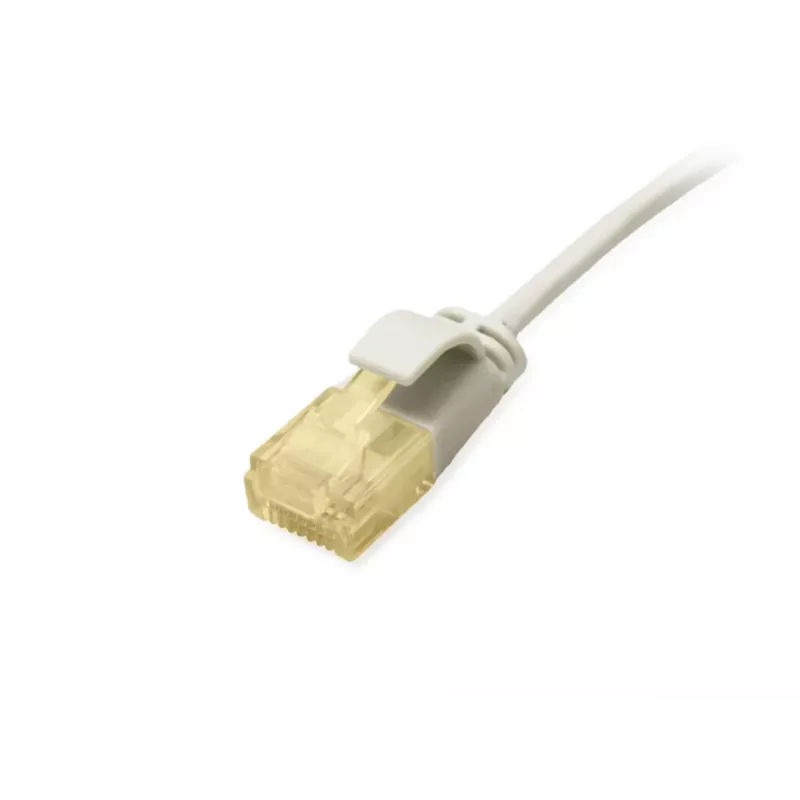

Equip Cat.6A U/UTP tenký patch kábel 3 m sivý 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 3m Grey is a slim, 3‑meter network cable designed for high-density installations in data centres, server rooms and enterprise networks. With a reduced diameter and stranded bare copper conductors, it provides 10 Gigabit Ethernet performance up to 500 MHz while improving cable routing and airflow in crowded racks and patch panels.

Advantages

The slim 32 AWG construction reduces cable bulk for cleaner cable management and better airflow. Unshielded twisted pair (U/UTP) design offers reliable transmission in low to moderate EMI environments. Stranded copper conductors and a moulded boot with strain relief deliver flexibility and durability for frequent reconfiguration. The cable is RoHS compliant and available in Low Smoke Zero Halogen (LSZH/LSOH) material.

Suitable for

• 10 Gigabit Ethernet (10GBase-T) connections
• Patch panels and high-density rack installations
• PoE and PoE+ powered devices
• Short-run horizontal cabling within data centres and server rooms

Key specifications

• Length: 3 m
• Category: Cat.6A U/UTP (UTP)

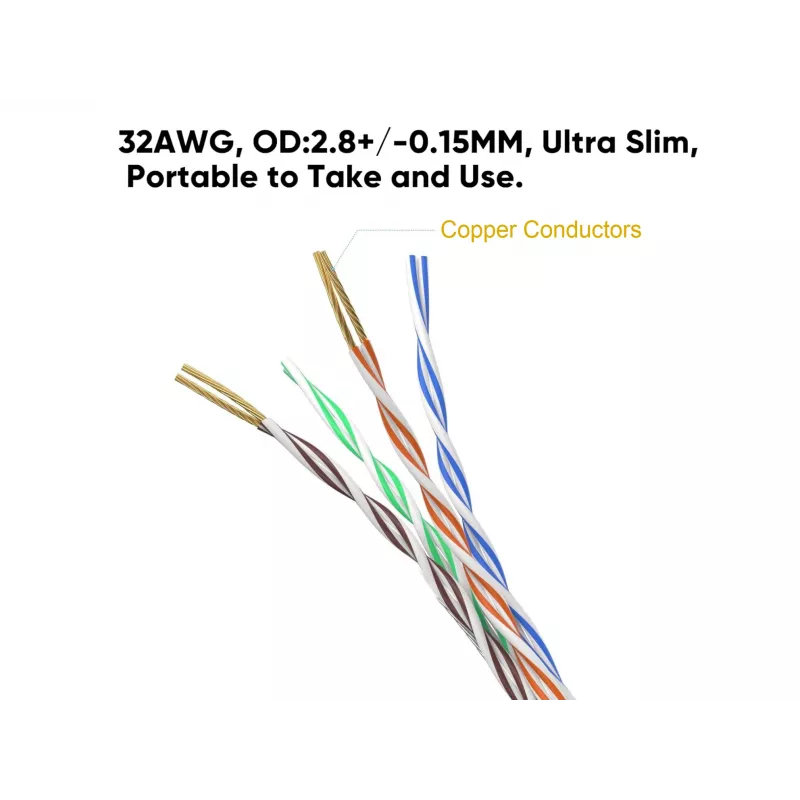

• Conductor: Stranded bare copper, 32 AWG
• Bandwidth/frequency: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male – RJ-45 straight male
• PoE support: suitable for PoE, PoE+
• Material: LSZH/LSOH (Low Smoke Zero Halogen)
• Standards: Compliant with ISO/IEC 11801 and EN 50173
• Colour: Grey

How to use

Connect one RJ‑45 plug to the network port of a switch, patch panel or device and the other RJ‑45 plug to the corresponding port. Ensure connectors are fully inserted and that cable routing avoids sharp bends and sources of strong electromagnetic interference. Use the slim cable for short horizontal or patch runs where space is limited; it is not intended as in‑wall permanent plenary cabling unless local regulations permit LSZH patch cords in that application.

Recommendations

For optimal performance, keep cable runs within the specified 3 m length for patching, maintain bend radius greater than four times the cable diameter, and segregate from high-voltage power cables to minimise EMI. Verify PoE power budgets on connected equipment before deployment.
