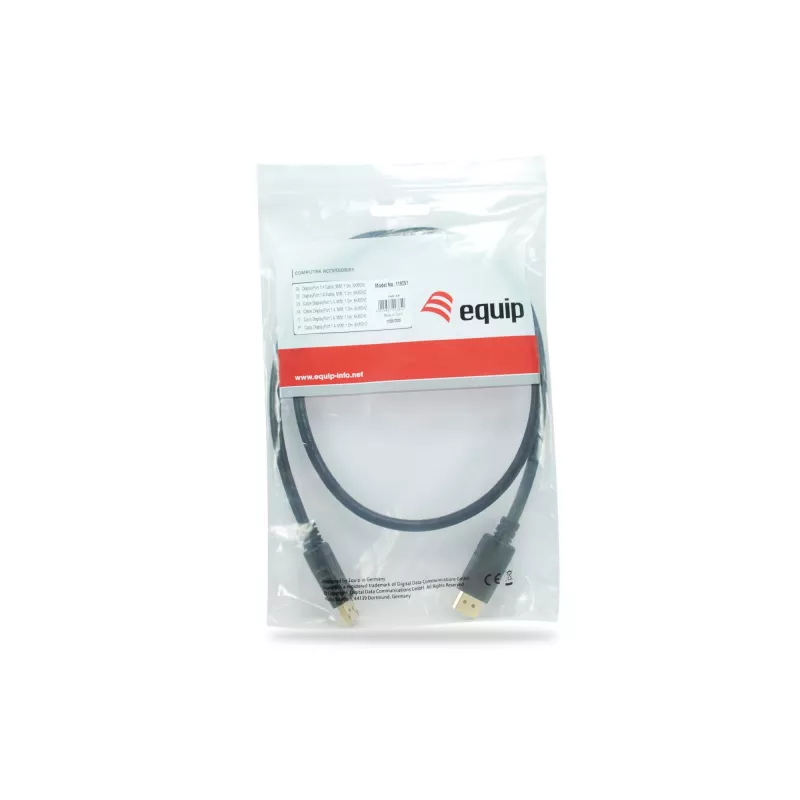

Equip DisplayPort 1.4 kábel, 1 m

The equip® DisplayPort Cable 1.4 (1 m) is a digital audio and video cable designed for connecting a computer to a monitor or a home-theatre system. The cable features DisplayPort connectors on both ends and supports DisplayPort 1.4 bandwidth up to 32.4 Gbps, allowing transmission of content up to 8K Ultra HD (7680 x 4320 @ 60 Hz). It complies with CE and RoHS standards and comes in a compact, lightweight design (1 m length, 68 g weight) in black color.

Advantages

This DisplayPort cable provides a high-bandwidth digital connection suitable for demanding video resolutions and multichannel audio. With support for DisplayPort 1.4 specifications, it enables transmission of high-resolution signals (up to 8K @ 60 Hz) while remaining lightweight and easy to route. Compliance with CE and RoHS ensures regulatory and environmental conformity.

Suitable for

• Connecting a PC or laptop to a DisplayPort-capable monitor
• Linking a computer to a home-theatre receiver or display with DisplayPort input
• High-resolution video editing and content review workflows
• Multi-monitor setups that use DisplayPort connections

Key specifications

• Standard: DisplayPort 1.4
• Maximum bandwidth: 32.4 Gbps
• Maximum resolution supported: up to 8K Ultra HD (7680 x 4320 @ 60 Hz)
• Length: 1 m
• Connectors: DisplayPort to DisplayPort
• Weight: 0.068 kg
• Colour: Black
• Certifications: CE, RoHS

How to use

Connect one end of the cable to the DisplayPort output on your computer and the other end to the DisplayPort input on your monitor or AV device. Ensure connectors are fully inserted until they click into place. Select the appropriate input source on the display and configure output resolution and refresh rate in your operating system or graphics driver settings to match the monitor’s capabilities.

Recommendations

For best performance at high resolutions, use quality DisplayPort ports on both devices and set the graphics driver to the desired resolution and refresh rate. Avoid sharp bends and excessive pinching of the cable; route it so it is not under tension. If using adapters, ensure they support DisplayPort 1.4 features to maintain full bandwidth.
