Equip Eco Mount 10' skriňa, 06U, 300X300MM, RAL7035 sivá

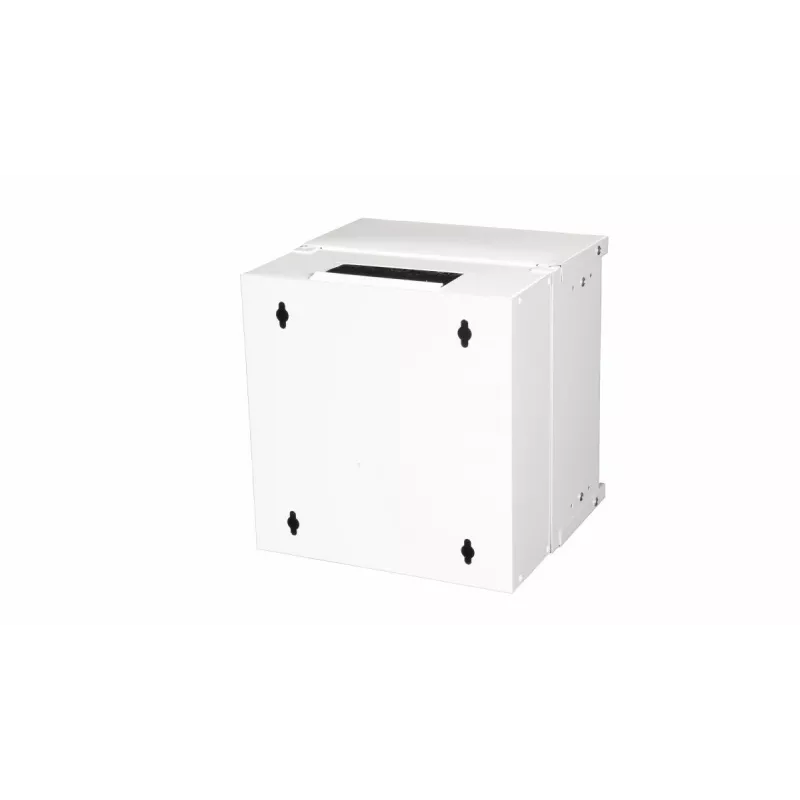

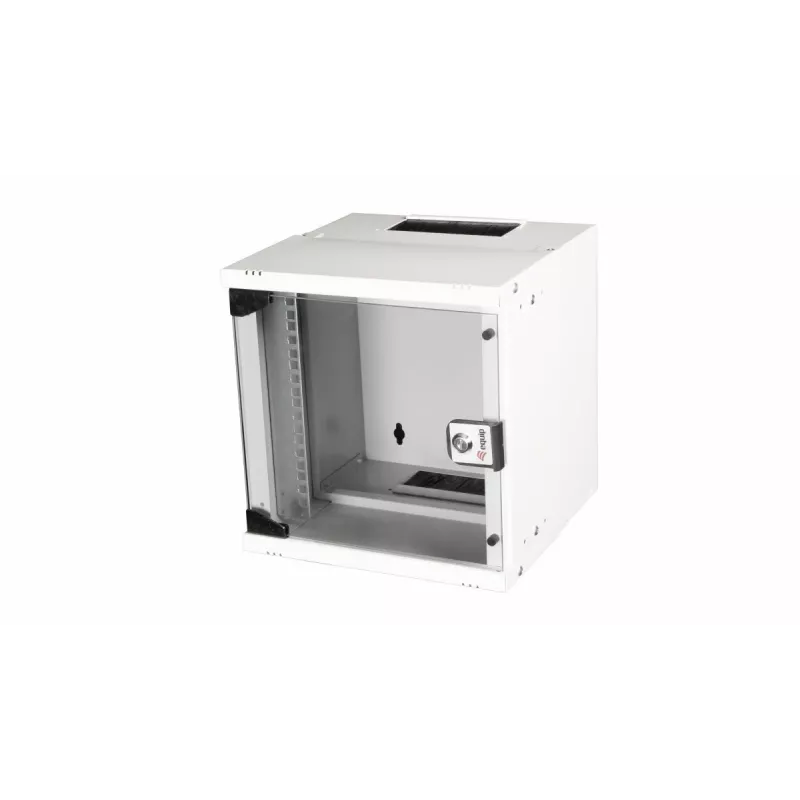

The Equip Eco Mount Wall mounted rack EWM-06-3030-G is a 10" (6U) wall cabinet designed for compact and secure installation of network equipment. Constructed from 1.5 mm steel, the cabinet provides robust protection for IT hardware and is finished in grey (RAL 7035). The unit is lightweight (4.58 kg) and supports a maximum mounting depth of 270 mm, with ventilation slots at the top and reversible door orientation for flexible placement. Cable entry points at the top and bottom are covered with removable plastic panels to simplify cable routing.

Advantages

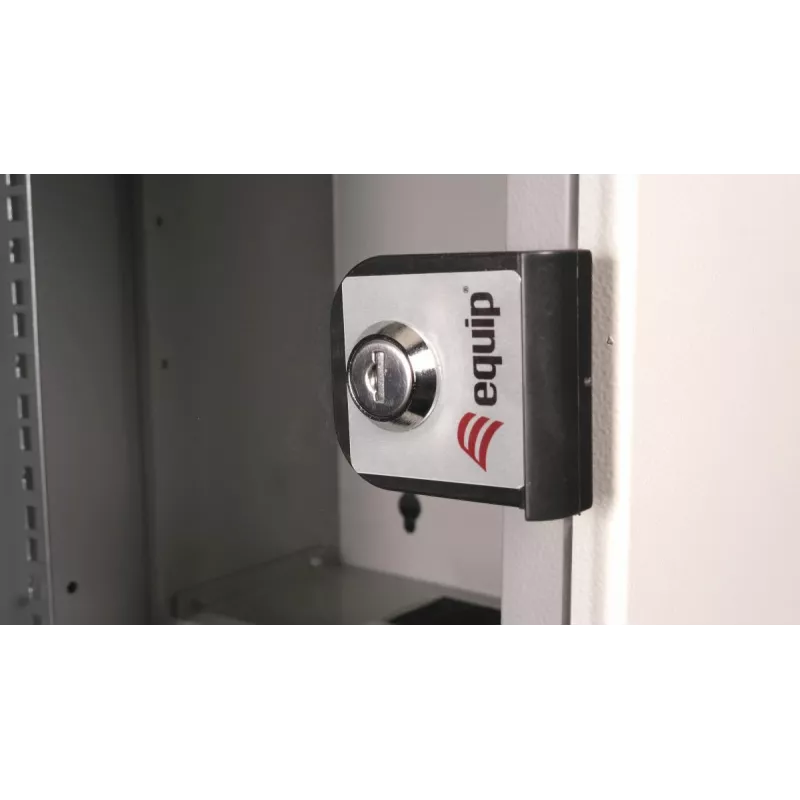

The cabinet combines a small footprint with a secure key lock and durable steel construction to protect network components. Its reversible door, integrated ventilation and removable cable entry covers enable adaptable installation and tidy cable management. Available in a compact 6U size and finished in grey, the rack is suitable where space efficiency and equipment protection are required.

Suitable for

• Small network closets and server rooms with limited space
• POE switches, patch panels and small 19" or 10" devices (up to 270 mm depth)
• Office and retail environments requiring secured, wall-mounted equipment

Key specifications

• Model: Equip Eco Mount EWM-06-3030-G
• Rack capacity: 6U (10")
• Material thickness: 1.5 mm steel
• Mounting depth (max): 270 mm
• Dimensions (H×W×D): 330 × 153 × 300 mm
• Weight: 4.58 kg
• Colour: Grey (RAL 7035)

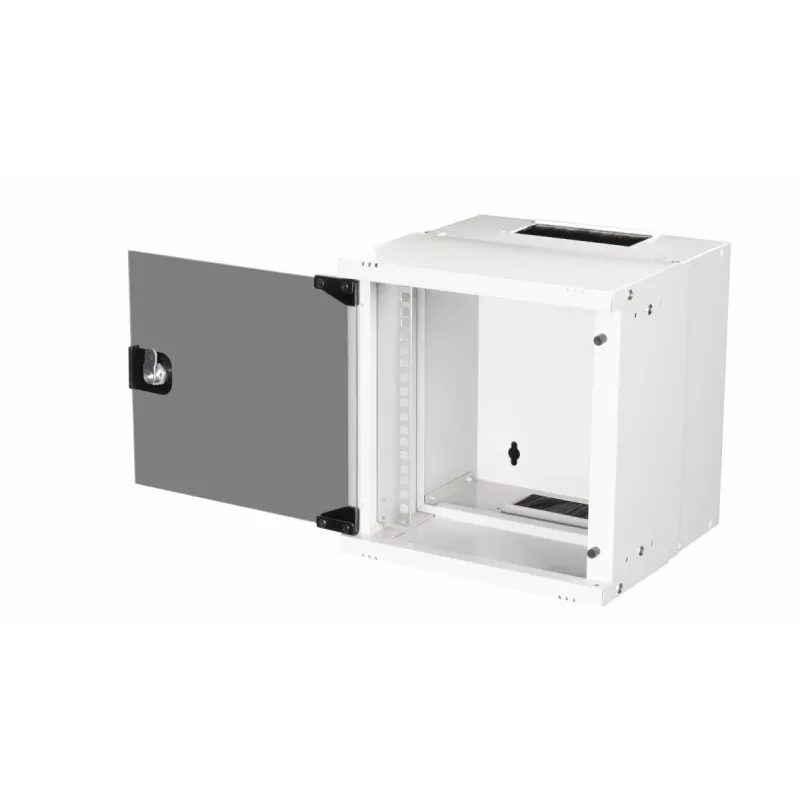

• Door: reversible (right/left)

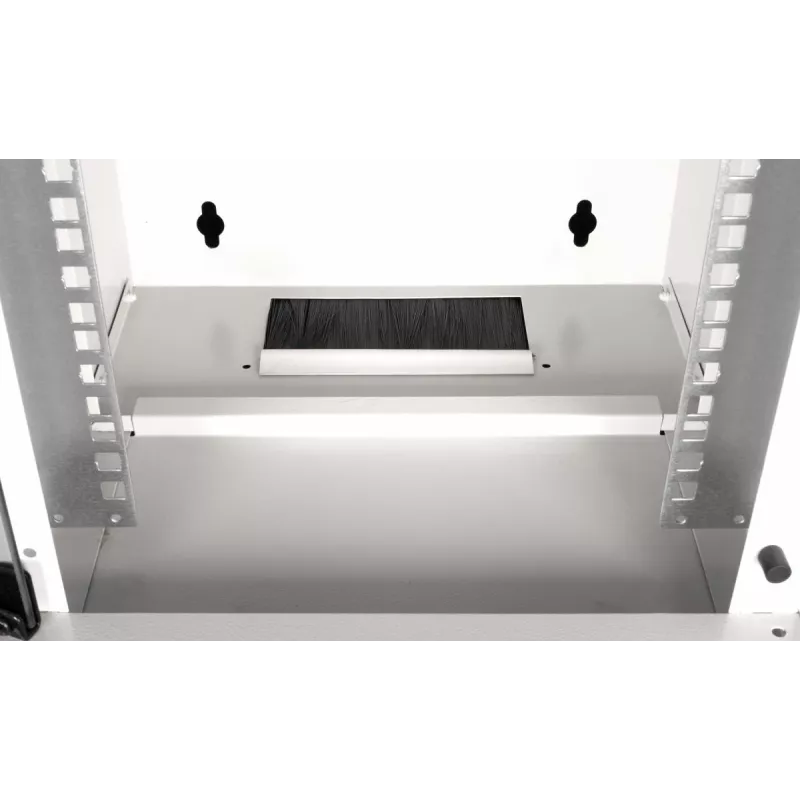

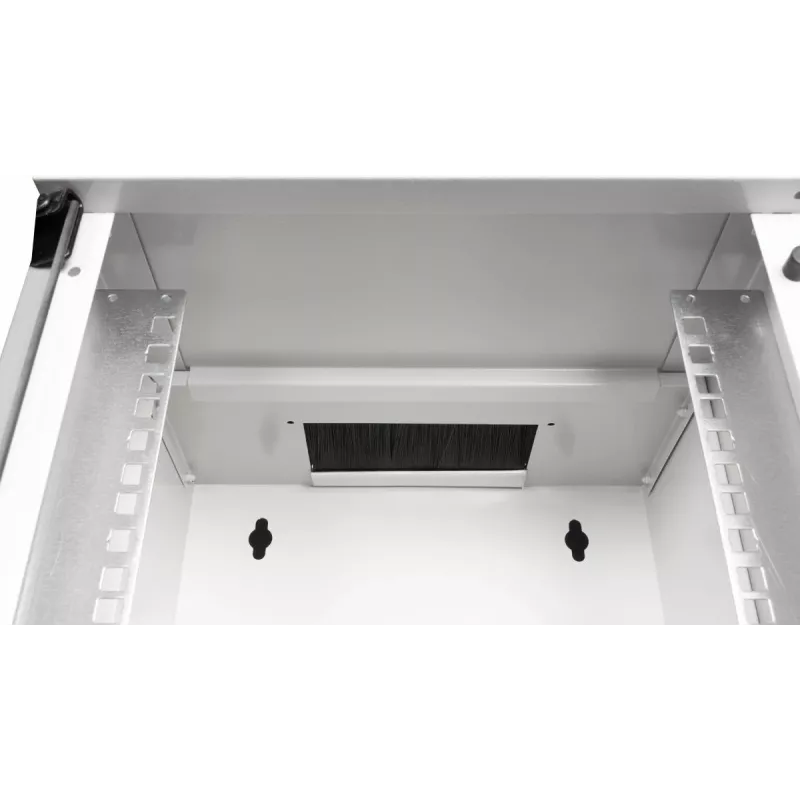

• Cable entry: top and bottom with removable plastic covers

How to use

Mount the rack securely to a suitable wall surface using appropriate fasteners for the wall type and the cabinet weight plus installed equipment. Remove the front door and any packaging, then install 10" or 19" mounting rails and equipment according to the device instructions, ensuring a maximum fitting depth of 270 mm. Route network and power cables through the top or bottom cable entries and replace the removable covers to protect and tidy the cables. Use the key lock to secure the door after installation.

Recommendations

When installing, verify wall load capacity and use anchors suitable for the wall material. Allow at least 50 mm clearance above the top ventilation slots and provide enough space for cable access. For heavier equipment, confirm combined weight does not exceed wall mount and fastener ratings. Follow the supplied assembly video and the manufacturer’s instructions for safe installation.
