Equip Eco Mount 19' skriňa, 09U, 540X400MM, RAL9005 čierna

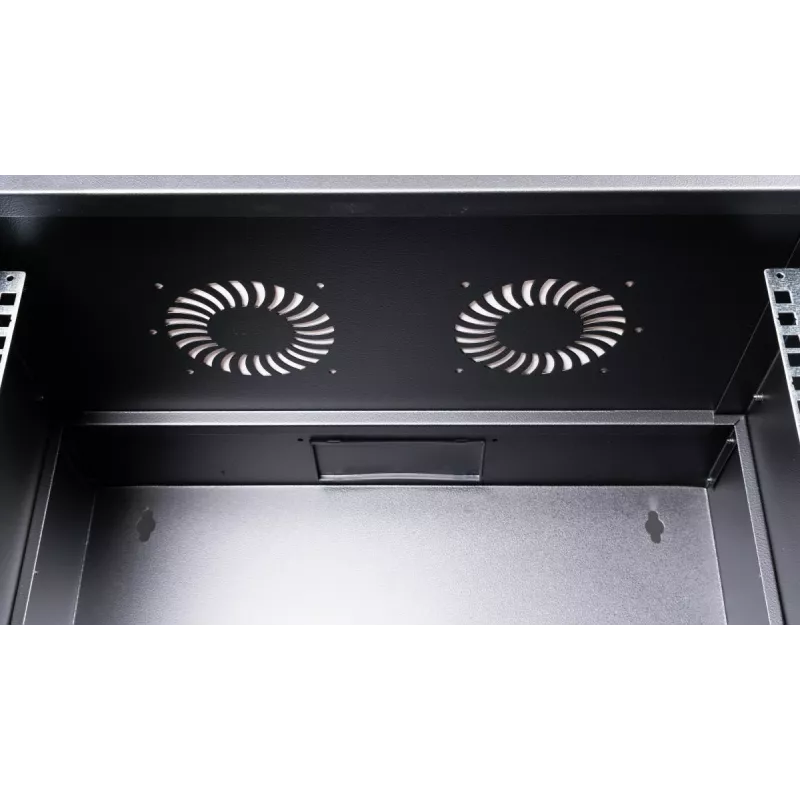

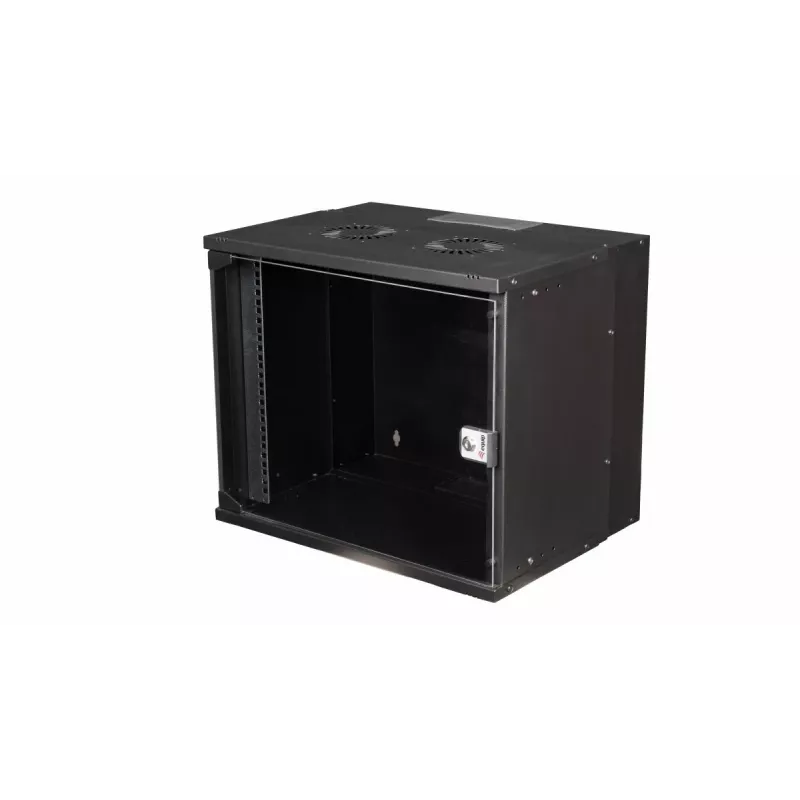

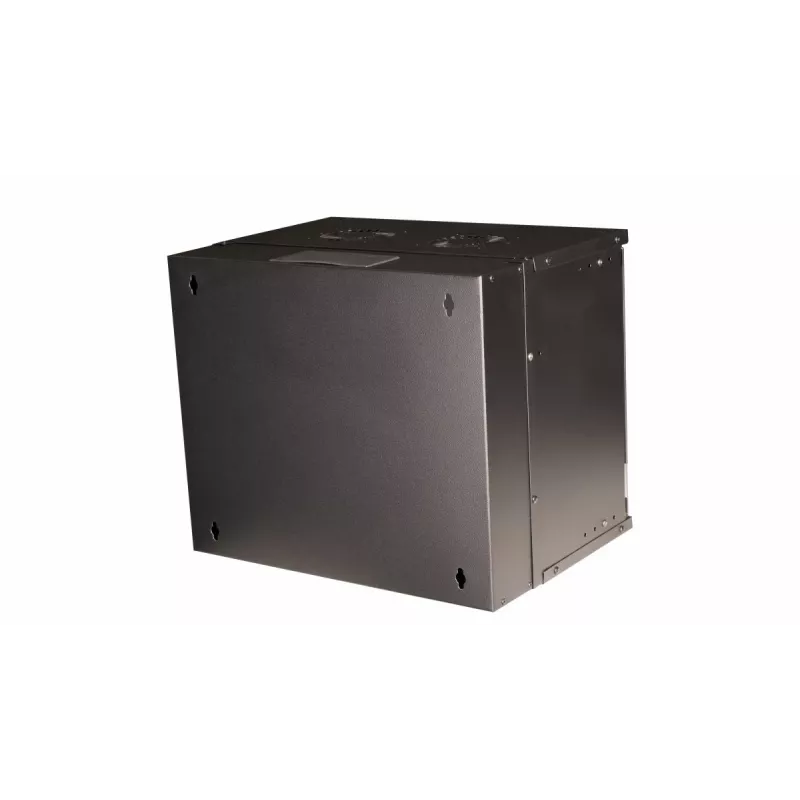

The Equip Eco Mount Wall Mount Cabinet (model EWM-09-5440-B) is a 19" wall-mounted rack with 9U capacity, designed for secure and space-efficient installation of network and IT equipment. Constructed from 1.5 mm steel sheets and finished in black (RAL 9005), the cabinet measures 463 mm high, 174 mm wide and 400 mm deep, with a maximum mounting depth of 380 mm and a weight of 10.3 kg. The front door can be reoriented from right to left, and the top includes ventilation slots to support passive airflow. Top and bottom cable entries are protected by removable plastic covers for organized cable routing. The unit is supplied unassembled with an instructional assembly video.

Advantages

The cabinet combines robust construction and compact design to protect equipment while saving wall space. Integrated ventilation slots and reversible door orientation increase installation flexibility. Removable cable-entry covers and available accessories such as shelves and cable management tools simplify installation and cable organization. A keyed lock on the door provides additional physical security for installed devices.

Suitable for

• Small server rooms and network closets
• Telecommunications and patch panel mounting
• Small office and retail network installations
• Edge and branch IT equipment housing

Key specifications

• Rack capacity: 9U (19")
• Dimensions (H×W×D): 463 × 174 × 400 mm
• Maximum mounting depth: 380 mm
• Material thickness: 1.5 mm steel
• Colour: Black (RAL 9005)
• Weight: 10.3 kg

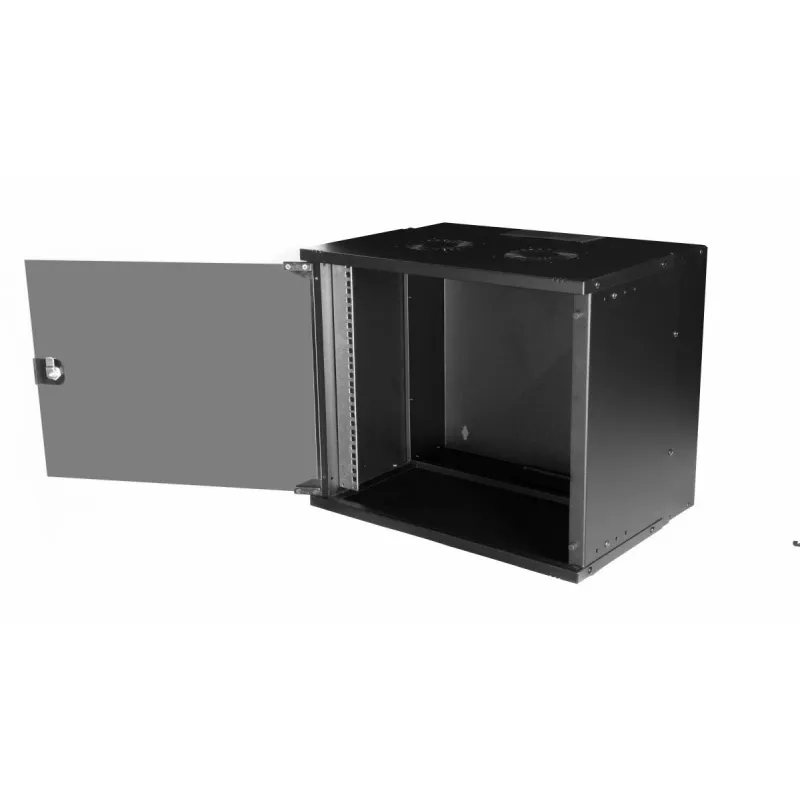

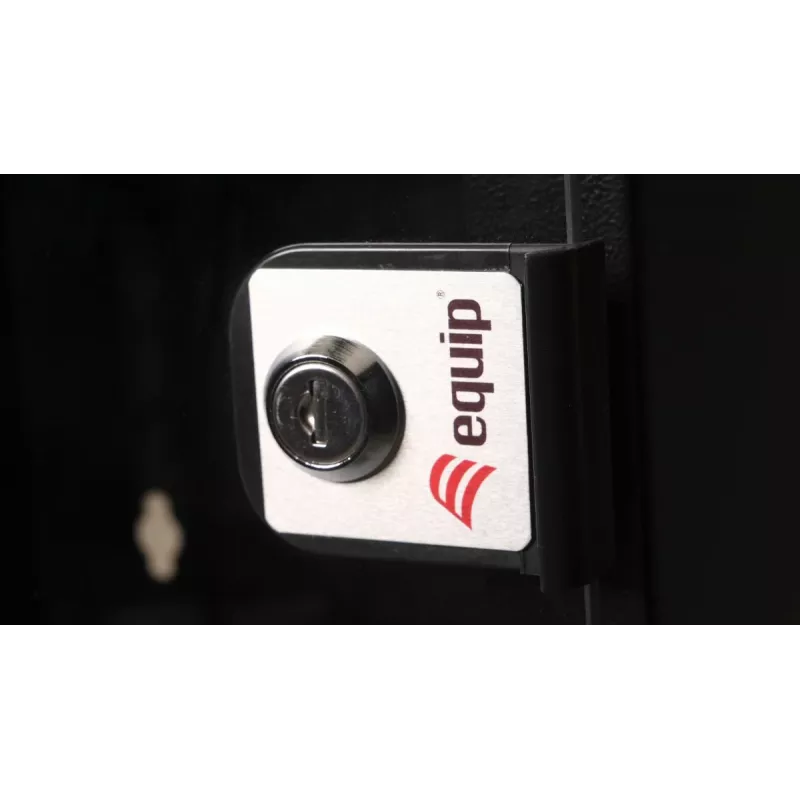

• Front door: reversible (right/left) with key lock
• Cable entries: top and bottom with removable plastic covers

How to use

Mount the cabinet securely to a load-bearing wall using appropriate anchors and fixings for the wall material and the cabinet weight. Install equipment on the 19" mounting rails up to the 380 mm depth, route cables through the top or bottom cable entries and secure them with cable management accessories. Ensure the ventilation slots are not obstructed and close the door, locking it with the key when required. Follow the provided assembly video for step-by-step guidance during initial setup.

Recommendations

When installing network devices, distribute heavier equipment toward the bottom of the rack, leave gaps for airflow, and use the removable cable-entry covers to route and protect cables. Verify wall anchors and fixings are rated for the cabinet weight plus mounted equipment before completing installation.
