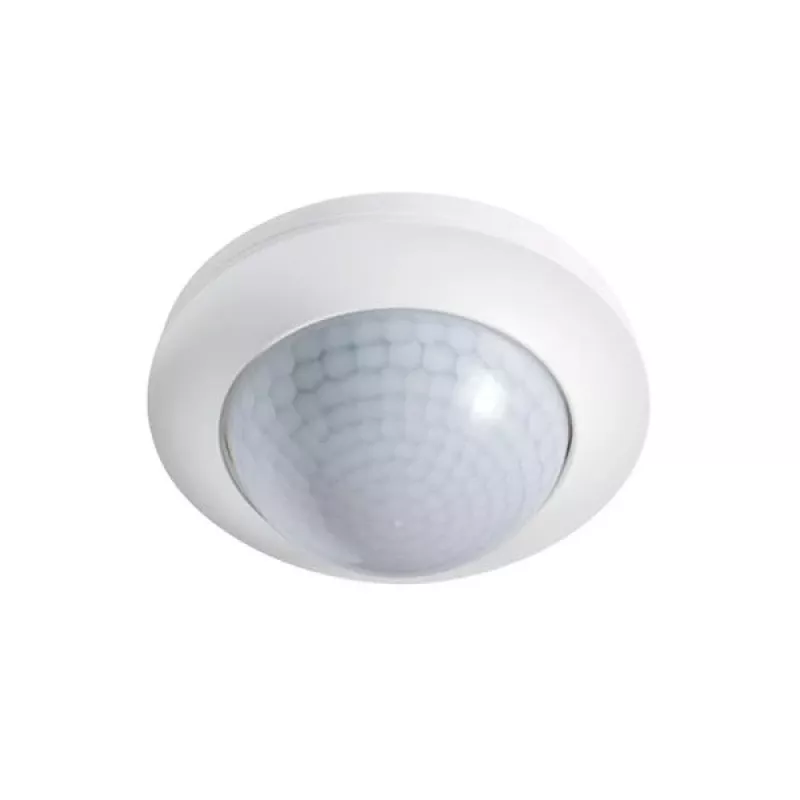

ESYLUX stropný prítomnostný senzor PD-C360i/24 KNX Up 360° biely

The ESYLUX PD-C360i/24 KNX Up is a high-quality ceiling presence detector designed for flush-mounted installation. It combines passive infrared (PIR) technology with a 360° detection angle, making it ideal for automatic lighting control and presence detection in commercial and residential spaces. The device integrates seamlessly into KNX building automation systems, offering three independent channels for light, HVAC, and presence control.

Advantages

Energy-efficient and reliable presence detection with a large detection area of approximately 64 m² at a 3 m mounting height. The mixed light measurement sensor (5–2000 Lux) ensures precise brightness control. Adjustable time delay (60 s to 1092 min) via ETS provides flexibility. Compact design with a visible diameter of only 82 mm and a low profile of 20 mm.

Suitable for

• Office rooms and conference rooms
• Classrooms and lecture halls
• Open-plan offices and corridors
• Residential living areas and kitchens
• Any KNX-based building automation project

Key specifications

• Product type: Ceiling presence detector
• Bus system: KNX
• Detection angle: 360°
• Detection technology: Passive infrared (PIR)
• Detection area: approx. 64 m² (Ø 9 m) at 3 m height
• Recommended mounting height: 2–5 m (optimal 3 m)
• Light sensor range: 5–2000 Lux (mixed light measurement)
• Time delay (light channel): 60 s – 1092 min (adjustable via ETS)
• Number of channels: 3 (Light, HVAC, Presence)
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Mounting type: Flush-mounted (UP)
• Visible diameter: 82 mm
• Visible height: 20 mm
• Installation depth: 60 mm
• Installation opening diameter: 68 mm
• Supply voltage: KNX bus voltage

Recommendations

For optimal performance, mount the detector at a height of 3 m and ensure a clear line of sight to the area to be monitored. Use the ETS software for detailed configuration of time delays, light thresholds, and channel assignments. This device is compatible with all KNX-certified systems.
