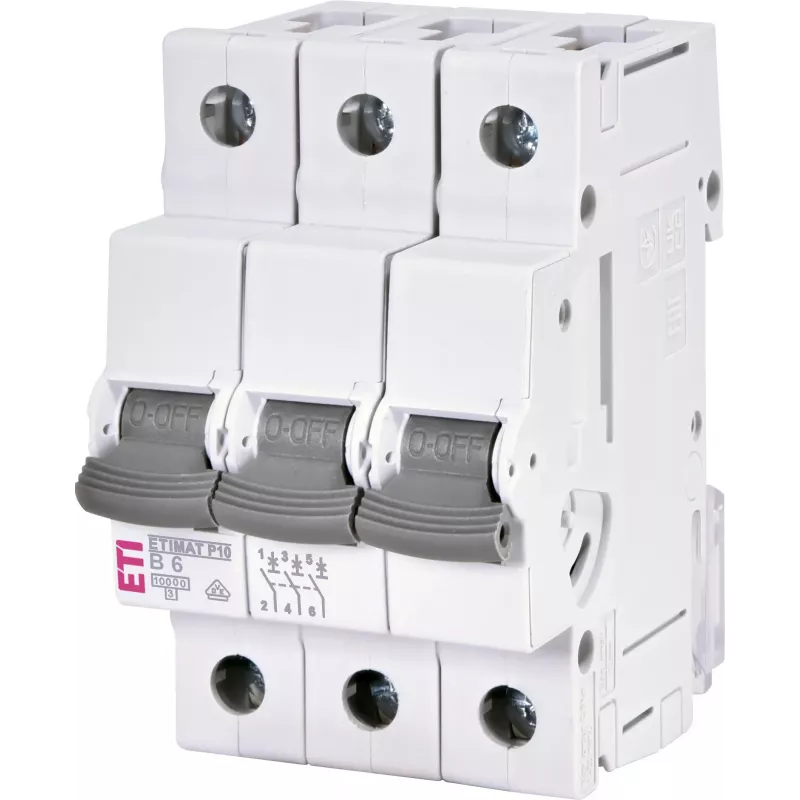

ETI 001901307 ETIMAT P10 3-pólový 6A B-charakteristika istič 415V 10kA

The ETIMAT P10 3-pole B-curve MCB from ETI delivers dependable protection for three-phase circuits with a 6 A rated current. Its thermal-magnetic trip unit combines overload and short-circuit protection in a compact 3-module DIN rail housing, making it a straightforward choice for distribution boards and control panels.

Highlights

• 3-pole configuration for three-phase systems
• B trip characteristic for general resistive loads
• 10 kA breaking capacity at 415 V AC
• Thermal-magnetic release for reliable operation
• DIN rail mounting with screw terminals

In daily use

With a rated current of 6 A and B-curve tripping, this breaker suits lighting circuits, socket outlets, and other loads with moderate inrush currents. The clear ON/OFF indicator gives at-a-glance status, while the 54 mm width saves space in crowded enclosures. It operates on 50/60 Hz supplies and accepts solid or stranded conductors from 1 to 25 mm².

Full specifications

• Rated current: 6 A
• Number of poles: 3
• Trip characteristic: B
• Rated voltage: 415 V AC
• Rated short-circuit breaking capacity (Icn): 10 kA
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Terminal capacity: 1–25 mm² (solid/stranded)
• Degree of protection: IP20 (terminals)
• Operating temperature: -25 to +55 °C
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Standard compliance: EN 60898-1
• Energy limiting class: 3
• Module width: 3 modules (54 mm)
• Indicator: ON/OFF position indicator
• Type of release: Thermal-magnetic

Final note

A compact, reliable MCB for three-phase protection, built to EN 60898-1 and ready for DIN rail installation.
