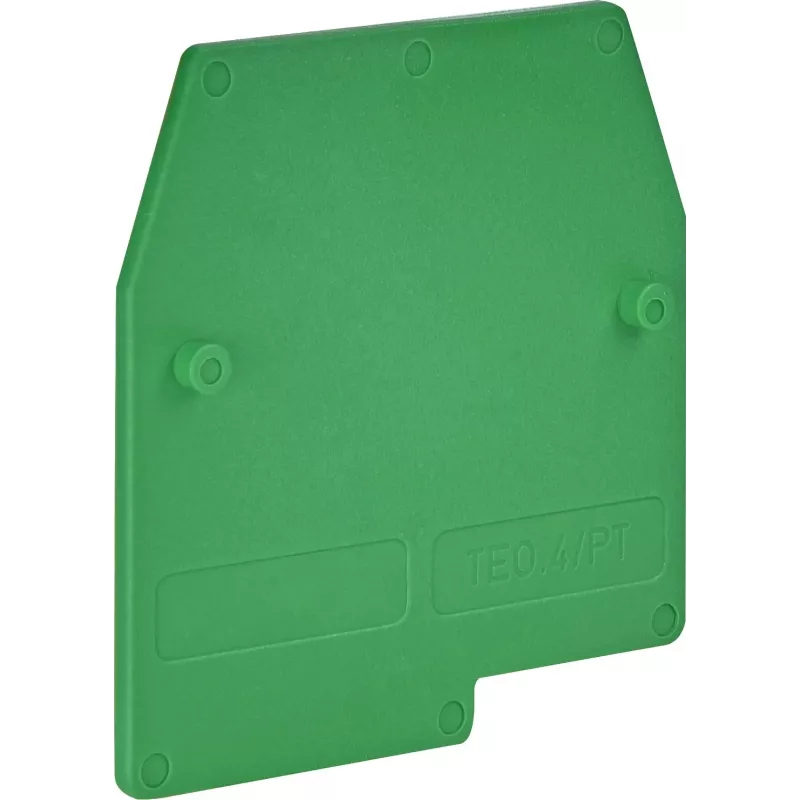

ETI ESC-TEO.4/PT kryt pre uzemňovaciu svorku ESC-TEO.4, zelený 003903069

Rated for 1000 V and impulse withstand of 6 kV, this green end cover is the finishing component for ETI ESC-TEO.4 earth terminal blocks. It clips directly onto the terminal block, providing insulation and a clean, professional look in control panels and industrial installations.

Overview

The ETI ESC-TEO.4/PT is a polyamide (PA6.6) end cover designed for the ESC-TEO.4 series earth terminal blocks. Its green colour matches the earth terminal function, and the UL94 V-0 flammability rating ensures safety in demanding environments. The cover snaps on without tools, making installation quick and secure.

What stands out

• High electrical ratings: 1000 V rated voltage, 6 kV impulse withstand.
• Durable material: Polyamide PA6.6 with UL94 V-0 flammability rating.
• Compact dimensions: 1.5 mm width, 44.5 mm height, 40 mm depth.
• Wide operating temperature range: -40°C to +100°C.
• Insulation group I according to IEC 60664-1.

Technical details

• Product type: End cover / end plate
• Compatibility: ETI ESC-TEO.4 series earth terminal blocks
• Colour: Green
• Material: Polyamide (PA6.6)
• Flammability rating: UL94 V-0
• Mounting type: Clip-on / snap-on
• Application: Electrical installations, control panels, industrial automation
• Operating temperature range: -40°C to +100°C
• Insulation group: I (IEC 60664-1)
• Rated voltage (terminal block): 1000 V
• Rated impulse withstand voltage (terminal block): 6 kV
• Series: TEO.4
• Width: 1.5 mm
• Height: 44.5 mm
• Depth: 40 mm

Our verdict

A reliable and precise-fitting end cover that completes the ESC-TEO.4 earth terminal block assembly. Its high electrical ratings and robust material make it suitable for industrial use.
