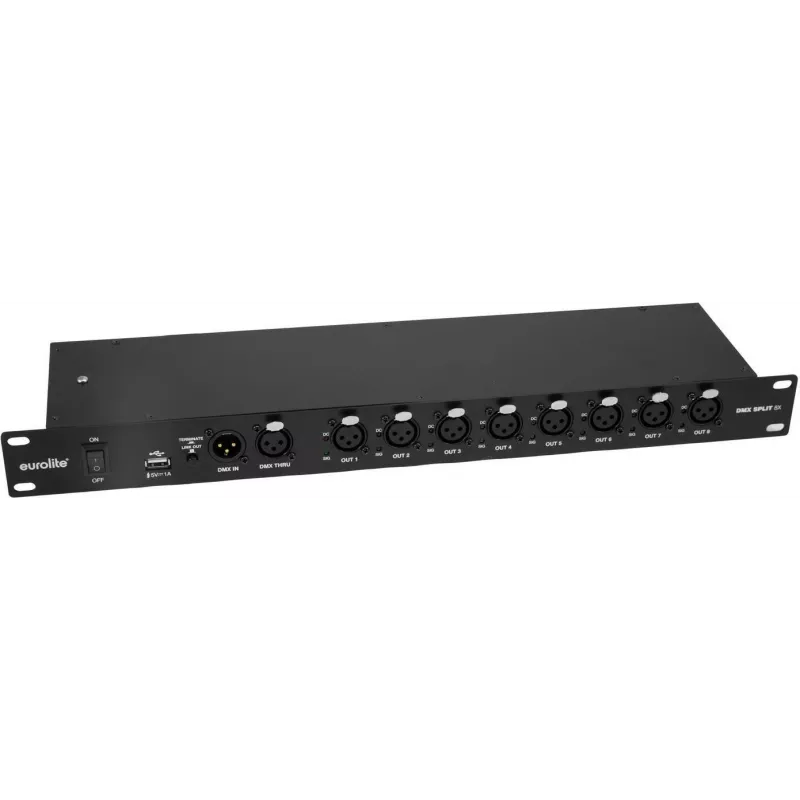

EUROLITE DMX Split 8X splitter 3-polový galvanicky oddelený 19-palcový rack 1HE

Eight galvanically isolated DMX outputs in a single 1U rack unit — the EUROLITE DMX Split 8X ensures clean, interference-free signal distribution across your entire lighting rig.

Overview

Built for professional stage and installation use, this 19-inch rack-mountable splitter takes one DMX512 input and distributes it to eight independent, electrically isolated outputs. Each output is protected against ground loops and voltage differences, preventing data errors and equipment damage. A switchable termination on the input guarantees correct impedance matching for long cable runs. The front panel provides clear LED status for power, input signal, and each individual output, so troubleshooting is immediate.

What stands out

• Galvanic isolation between input and outputs, and between each output pair
• Eight 3-pin XLR outputs plus a direct thru port for daisy-chaining
• 1U 19-inch metal housing for clean rack integration
• Switchable DMX termination on the input
• LED indicators for power, input signal, and all eight outputs

Technical details

• DMX input: 1 × 3-pin XLR female
• DMX thru: 1 × 3-pin XLR male
• DMX outputs: 8 × 3-pin XLR male, galvanically isolated
• DMX standard: DMX512
• Power supply: 230 V AC, 50 Hz
• Power consumption: 10 W
• Operating temperature: 0 – 40 °C
• Relative humidity: 20 – 90 % (non-condensing)
• Housing: metal, black
• Rack units: 1U, 19-inch

Our verdict

When signal integrity is non-negotiable, this splitter delivers eight isolated feeds with zero compromise — a must-have for multi-universe lighting setups.
